HS622 TA/A (SZAL) - Honda 22" Snow Blower, Made in Japan (SN: SZAL-1000001 - SZAL-1099999) AUGER HOUSING Parts Diagram

22" Snow Blower, Made in Japan

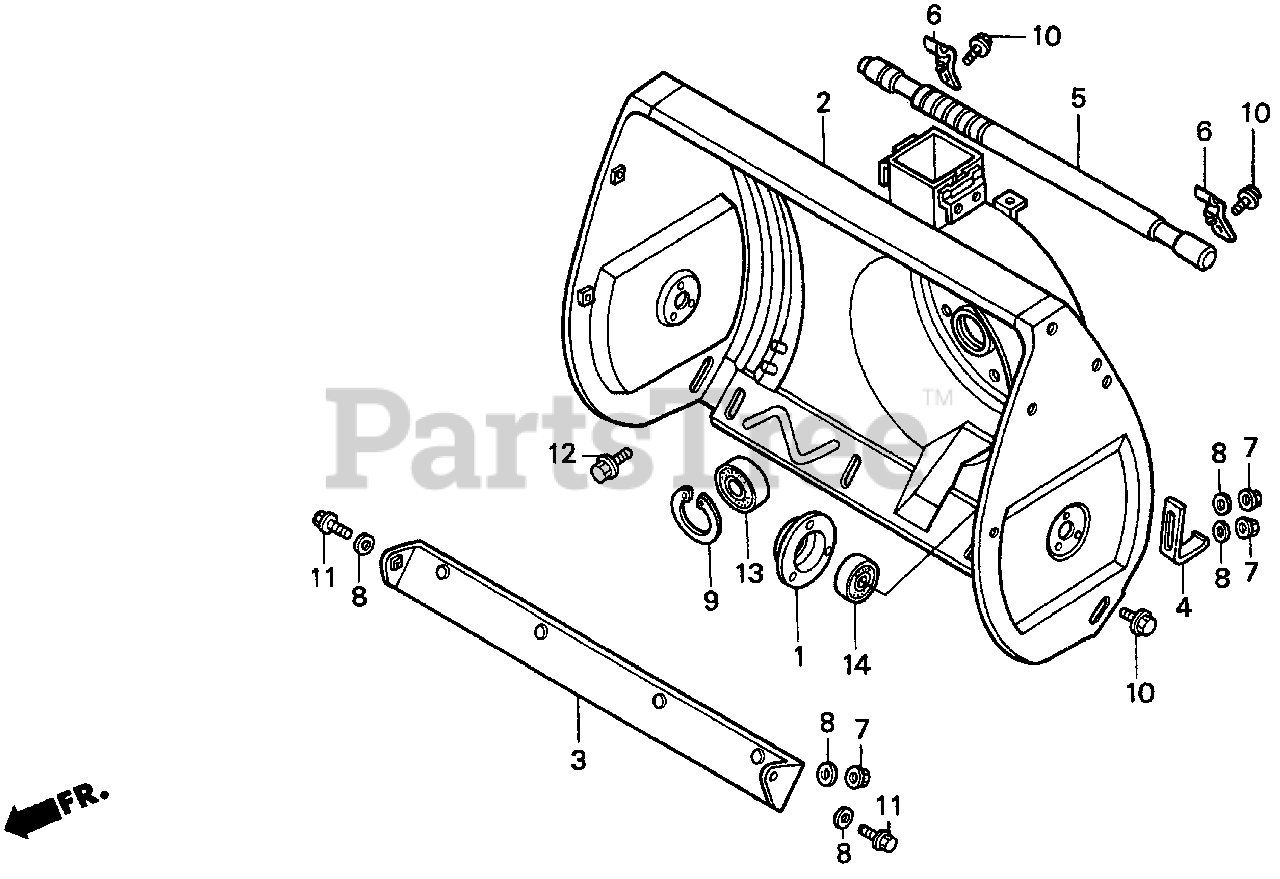

AUGER HOUSING Parts Diagram

  • Title

1

Honda 73256-732-000

HOLDER, AUGER BEARING

$23.99

$

In Stock, only 2 left!

0

2

Honda 76100-743-632

SEE PART DETAILS - SUP; HOUSING, AUGER

$

$

Currently unavailable

3

Honda 76151-743-610

GUARD, AUGER HOUSING (22INCH)

$90.99

$

Usually ships in 3-6 days

0

4

Honda 76153-743-610

SEE PART DETAILS - SUP; SKID, AUGER
(Superseded to 76153-743-611)

$35.99

$

Usually ships in 3-6 days

0

4

Honda 76153-743-611

SEE PART DETAILS - PRI; SKID, AUGER

$35.99

$

Usually ships in 3-6 days

0

5

Honda 76211-743-000

BAR, HEIGHT ADJUSTMENT

$47.99

$

In Stock, only 2 left!

0

6

Honda 76212-738-E00

BRACKET, HEIGHT ADJUSTMENT BAR

$5.99

$

Usually ships in 3-6 days

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

8

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

9

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$3.49

$

In Stock, only 2 left!

0

10

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 8

0

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0

13

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$26.99

$

Usually ships in 3-6 days

0

14

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, only 2 left!

0
