HS621 AS/E (SZAN) - Honda 21" Snow Blower, Made in Japan (SN: SZAN-1130379 - SZAN-1999999) CARBURETOR Parts Diagram

21" Snow Blower, Made in Japan

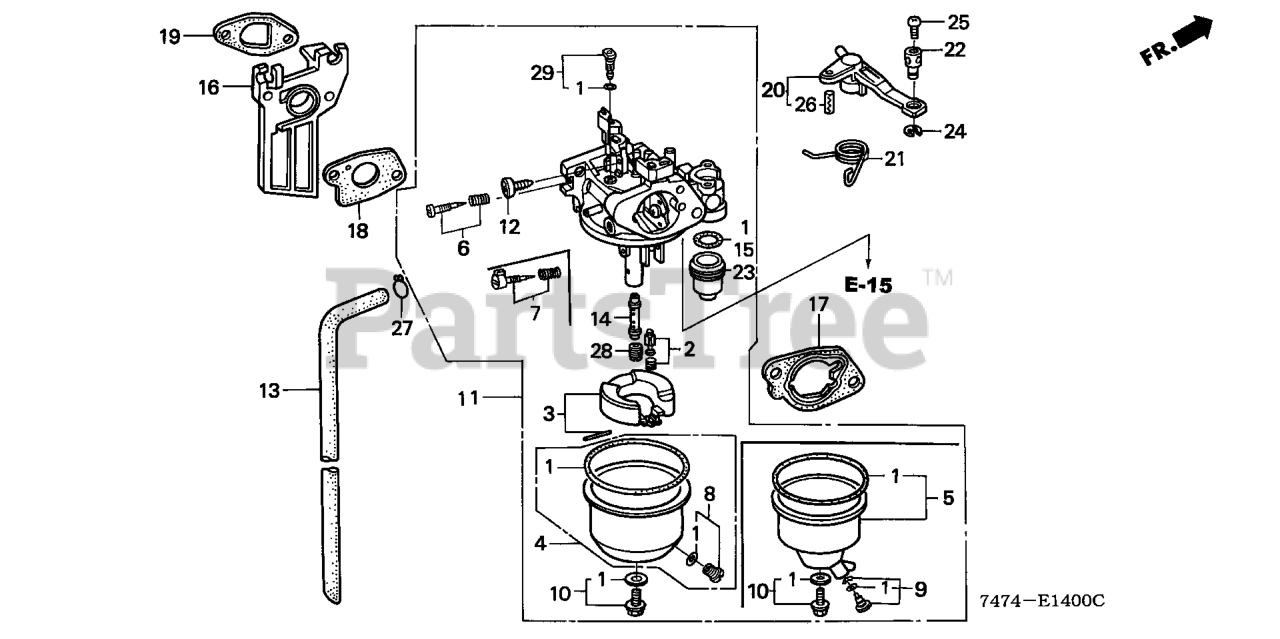

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE1-P32

GASKET SET

$20.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$29.99

$

In Stock, only 1 left!

0

5

Honda 16015-ZH7-A21

SEE PART DETAILS - SUP; CHAMBER SET, FLOAT (CARBURETOR NO.)
(Superseded to 16015-ZK7-S91)

$30.99

$

Usually ships in 3-6 days

0

7

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$20.99

$

In Stock, only 2 left!

0

9

Honda 16024-ZH7-A20

SCREW SET, DRAIN (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

10

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

10

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

11

Honda 16100-ZE1-P35

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE45A D)

$100.99

$

In Stock, only 1 left!

0

12

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

13

Honda 16151-ZE1-P30

TUBE, OVERFLOW

$11.99

$

In Stock, only 1 left!

0

14

Honda 16166-ZE1-711

NOZZLE, MAIN

$29.99

$

Usually ships in 3-6 days

0

15

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, Qty 8

0

16

Honda 16211-ZE1-000

INSULATOR, CARBURETOR (Honda Code 1427137).

$23.99

$

In Stock, only 1 left!

0

17

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055).

$7.99

$

In Stock, Qty 20+

0

18

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

19

Honda 16212-ZH8-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$3.49

$

In Stock, Qty 20+

0

20

Honda 16610-ZE1-810

LEVER, CHOKE (REMOTE)

$10.99

$

Usually ships in 3-6 days

0

21

Honda 16615-ZE1-010

SEE PART DETAILS - PRI; SPRING, RETURN (Honda Code 2456721).

$5.99

$

Usually ships in 3-6 days

0

22

Honda 16617-890-010

SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462).

$8.49

$

In Stock, only 1 left!

0

23

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$22.99

$

In Stock, only 1 left!

0

24

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$3.99

$

In Stock, only 3 left!

0

25

Honda 93500-04008-0A

SEE PART DETAILS - PRI; SCREW, PAN (4X8) (Honda Code 0156463).

$1.49

$

In Stock, only 4 left!

0

26

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, Qty 5

0

27

Honda 95002-45000

CLIP, TUBE (4.5)

$1.99

$

In Stock, Qty 9

0

28

Honda 99101-ZK7-0650

SEE PART DETAILS - PRI; JET, MAIN (#65)

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

28

Honda 99101-ZK7-0680

SEE PART DETAILS - PRI; JET, MAIN (#68)

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

28

Honda 99101-ZK7-0700

SEE PART DETAILS - PRI; JET, MAIN (#70)

$9.99

$

In Stock, Qty 9

0

29

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!

0
