HS55 TA (HS55) - Honda Snow Blower, Made in Japan (SN: HS55-1000001 - HS55-1100000) AUGER HOUSING Parts Diagram

Snow Blower, Made in Japan

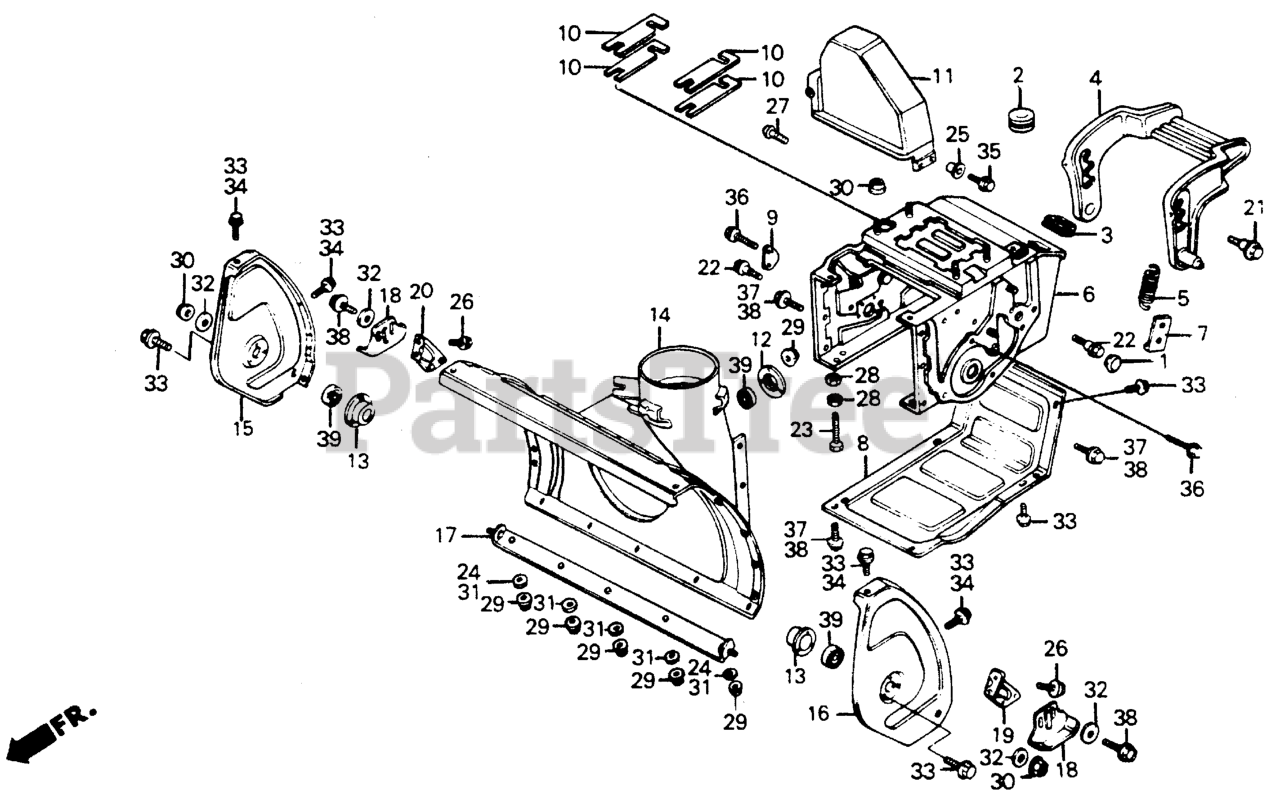

AUGER HOUSING Parts Diagram

  • Title

1

Honda 22541-960-770

GROMMET, GUIDE ROLLER (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 36037-657-000

SEE PART DETAILS - PRI; GROMMET A, TUBE

$9.99

$

Usually ships in 3-6 days

0

4

Honda 42763-732-900

PLATE, HEIGHT ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 42768-732-901

SPRING, HEIGHT ADJUSTING

$

$

Currently unavailable

6

Honda 51110-736-000

BED, ENGINE

$

$

Not available

7

Honda 51114-736-000

HOOK, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 51115-732-000

COVER (LOWER) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 51116-732-000

PLATE, DISK HOLDER SHAFT

$

$

Currently unavailable

10

Honda 51118-736-000

SPACER, MOUNTING

Note: Use from Frame SN 1018703.

$

$

Not available

11

Honda 63610-736-610

COVER, BELT (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 72611-730-000

HOLDER, L. AUGER

$19.99

$

Usually ships in 3-6 days

0

13

Honda 73256-732-000

HOLDER, AUGER BEARING

$22.99

$

In Stock, only 2 left!

0

14

Honda 76100-736-000

HOUSING, AUGER (12")

$

$

Not available

15

Honda 76102-732-671

COVER, R. AUGER SIDE

$

$

Currently unavailable

16

Honda 76103-732-671

COVER, L. AUGER SIDE (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 76151-732-650

GUARD, AUGER HOUSING

$

$

Not available

18

Honda 76153-736-010

SEE PART DETAILS - PRI; SKID, AUGER

$27.99

$

In Stock, only 3 left!

0

19

Honda 76154-732-900

SEE PART DETAILS - SUP; STAY, L. SKID
(Superseded to 76154-732-901)

$

$

Not available

20

Honda 76155-732-900

SEE PART DETAILS - SUP; STAY, R. SKID
(Superseded to 76155-732-901)

$

$

Not available

21

Honda 90003-732-900

BOLT, HEIGHT ADJUST SETTING

$6.49

$

Usually ships in 3-6 days

0

22

Honda 90004-732-000

BOLT, TRANSMISSION SETTING

$4.49

$

Usually ships in 3-6 days

0

23

Honda 90103-732-000

BOLT, ADJUSTING

$4.99

$

In Stock, only 1 left!

0

25

Honda 90522-028-000

WASHER, CHAIN CASE SETTING

$3.99

$

Usually ships in 3-6 days

0

26

Honda 93494-06014-00

BOLT-WASHER (6X14)

$1.49

$

Usually ships in 3-6 days

0

27

Honda 93500-06018-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X18)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94002-080000S

NUT,HEX 8MM
(Superseded to 94002-08000-0S)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

30

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0481143).

$1.49

$

In Stock, Qty 20+

0

31

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

32

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

33

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

35

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

36

Honda 95700-06018-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X18)
(Superseded to 95701-06018-00)

$2.49

$

In Stock, Qty 7

0

36

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 7

0

37

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

38

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

39

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0
