HS55 K2 TAS (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) DRIVE PULLEY Parts Diagram

Snow Blower, Made in Japan

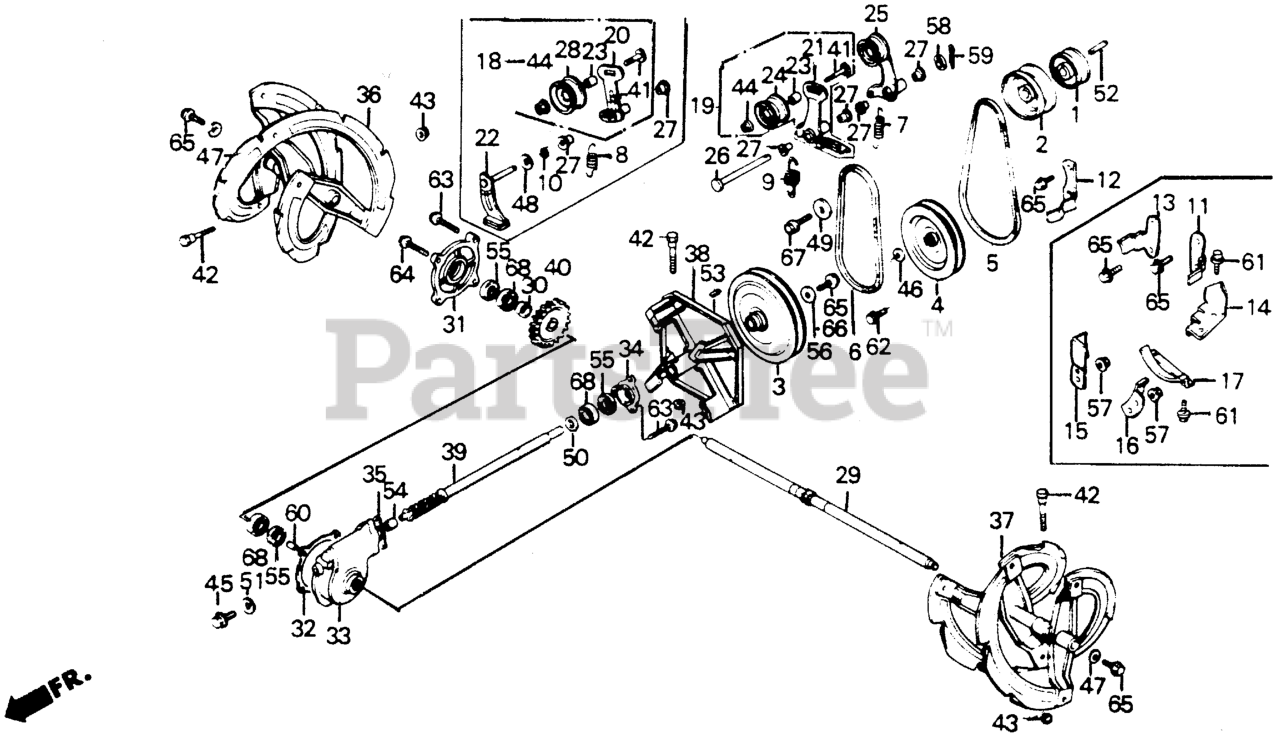

DRIVE PULLEY Parts Diagram

  • Title

1

Honda 22411-736-000

PULLEY, WHEEL DRIVEN

$47.99

$

Usually ships in 3-6 days

0

2

Honda 22412-736-000

PULLEY, AUGER DRIVE

$47.99

$

Usually ships in 3-6 days

0

3

Honda 22415-736-010

PULLEY, AUGER DRIVEN

$

$

Not available

4

Honda 22416-736-000

PULLEY, WHEEL DRIVEN

$

$

Not available

5

Honda 22431-736-A01

V-BELT (SA-30)

$19.99

$

In Stock, only 1 left!

0

6

Honda 22432-736-A01

SEE PART DETAILS - PRI; V-BELT (LB-33)

$36.99

$

In Stock, Qty 6

0

7

Honda 22437-736-A00

SPRING, TENSIONER RETURN (NOT AVAILABLE)

$

$

Not available

8

Honda 22438-736-A00

SPRING, TENSIONER RETURN (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 22439-736-A00

SPRING, BRAKE ARM

$3.99

$

In Stock, only 1 left!

0

11

Honda 22441-736-A00

STOPPER, R. BELT

$

$

Not available

13

Honda 22442-736-A00

STOPPER, L. BELT (R. SIDE)

$12.99

$

Usually ships in 3-6 days

0

14

Honda 22443-736-A00

GUIDE, BELT

$

$

Not available

15

Honda 22444-736-A00

STOPPER, L. BELT

$14.99

$

Usually ships in 3-6 days

0

16

Honda 22445-736-A00

STOPPER, R. BELT

$

$

Not available

17

Honda 22451-736-A00

STOPPER, BELT (WHEEL)

$

$

Not available

18

Honda 22510-736-A00

ARM ASSY., AUGER TENSION

$

$

Currently unavailable

20

Honda 22511-736-A00

ARM, AUGER TENSION

$

$

Currently unavailable

22

Honda 22512-736-A00

ARM, AUGER BRAKE

$

$

Currently unavailable

23

Honda 22514-736-000

COLLAR, ROLLER

$4.99

$

Usually ships in 3-6 days

0

25

Honda 22520-736-A00

ARM, TENSION (NOT AVAILABLE)

$

$

Currently unavailable

27

Honda 22524-730-000

BUSH, TENSIONER ARM

$9.99

$

Usually ships in 3-6 days

0

28

Honda 22530-736-A00

ROLLER

$39.99

$

In Stock, only 1 left!

0

29

Honda 23371-732-902

SHAFT, AUGER

$

$

Currently unavailable

30

Honda 23375-732-000

COLLAR, DISTANCE

$

$

Not available

31

Honda 71211-732-000

COVER, AUGER TRANSMISSION (NOT AVAILABLE)

$

$

Not available

32

Honda 71212-732-000

GASKET, AUGER TRANSMISSION CASE (NOT AVAILABLE)

$

$

Currently unavailable

33

Honda 71221-736-A00

CASE, L. AUGER TRANSMISSION (NOT AVAILABLE)

$

$

Not available

34

Honda 71222-732-000

CAP, AUGER CASE (NOT AVAILABLE)

$

$

Not available

35

Honda 71223-732-010

GASKET, AUGER CASE CAP (NOT AVAILABLE)

$

$

Currently unavailable

36

Honda 72401-732-900

AUGER, R.

$

$

Currently unavailable

37

Honda 72402-732-900

AUGER, L.

$

$

Currently unavailable

38

Honda 72411-732-902

BLOWER (12") (NOT AVAILABLE)

$

$

Currently unavailable

39

Honda 73251-736-A00

GEAR, DRIVE (12") (NOT AVAILABLE)

$

$

Currently unavailable

40

Honda 73551-732-020

GEAR, DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

41

Honda 90101-736-000

BOLT, ROLLER

$5.99

$

Usually ships in 3-6 days

0

42

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 20+

0

43

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

Usually ships in 3-6 days

0

44

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

45

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

46

Honda 90417-115-000

WASHER, CAMSHAFT SIDE

$3.99

$

Usually ships in 3-6 days

0

47

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 1 left!

0

48

Honda 90501-736-A00

WASHER, BRAKE ARM

$3.99

$

Usually ships in 3-6 days

0

49

Honda 90534-706-010

SEE PART DETAILS - PRI; WASHER, LOCK (8MM) (Honda Code 0177998).

$6.99

$

Usually ships in 3-6 days

0

50

Honda 90554-728-940

WASHER, THRUST (27X20X1.0)

$8.49

$

Usually ships in 3-6 days

0

51

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

52

Honda 90741-883-621

KEY (5MM) (Honda Code 0636092).

$7.49

$

Usually ships in 3-6 days

0

54

Honda 91002-732-000

BEARING, NEEDLE (15MM)

$18.99

$

Usually ships in 3-6 days

0

55

Honda 91201-732-003

OIL SEAL (20X32X7)

$11.99

$

In Stock, Qty 6

0

56

Honda 90435-611-000

WASHER, SPECIAL (28X8.5X4.0) (Honda Code 0347823).

$11.99

$

Usually ships in 3-6 days

0

57

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

58

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

59

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

60

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

61

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

62

Honda 95701-06016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) (Honda Code 2105807).

$1.99

$

In Stock, Qty 5

0

63

Honda 95701-06020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20) (Honda Code 2105815).

$2.49

$

In Stock, Qty 9

0

64

Honda 95700-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

64

Honda 95701-06028-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X28) (Honda Code 2105849).

$2.49

$

In Stock, Qty 7

0

65

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

66

Honda 95701-08022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X22) Use from Engine SN 1609607.

$2.99

$

In Stock, Qty 7

0

67

Honda 95701-08035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X35) (Honda Code 2724029).

$2.99

$

In Stock, only 2 left!

0

68

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0
