HS55 K2 TA (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) RECOIL STARTER Parts Diagram

Snow Blower, Made in Japan

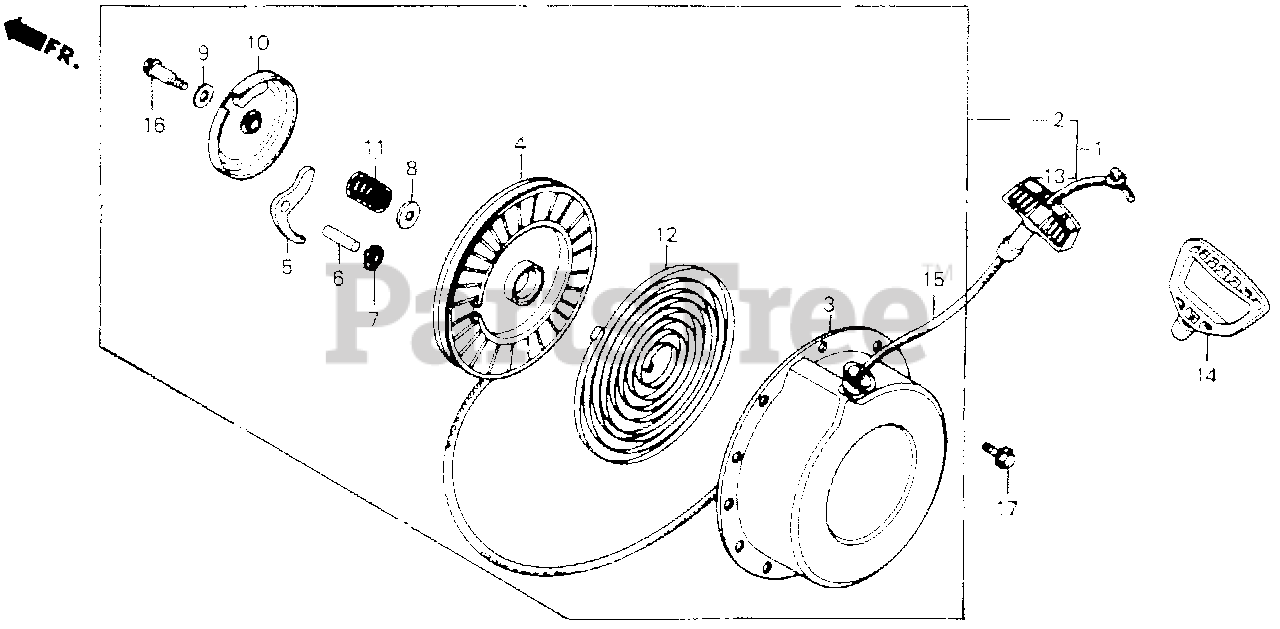

RECOIL STARTER Parts Diagram

  • Title
1

Honda 28400-ZE1-406ZC

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use up to Engine SN 1881487.

$

$

Currently unavailable

2

Honda 28400-ZE1-721H

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use from Engine SN 1881488 to 2056819.

$

$

Currently unavailable

2

Honda 28400-ZE1-722ZA

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

Note: Use from Engine SN 2056820.

$

$

Currently unavailable

3

Honda 28410-ZE1-712ZD

SEE PART DETAILS - PRI; CASE, STARTER *R8* (BRIGHT RED)

$

$

Not available

4

Honda 28420-ZE1-711

REEL, STARTER (NOT AVAILABLE)

$

$

Not available

5

Honda 28422-ZE1-711

RATCHET, STARTER

$5.49

$

Usually ships in 3-6 days

0

6

Honda 28423-ZE1-711

SHAFT, RATCHET

$8.99

$

Usually ships in 3-6 days

0

7

Honda 28424-ZE1-711

SEE PART DETAILS - SUP; PLATE, GUIDE
(Superseded to 28424-ZE1-712)

$4.99

$

Usually ships in 3-6 days

0

7

Honda 28424-ZE1-712

SEE PART DETAILS - PRI; PLATE, GUIDE

$4.99

$

Usually ships in 3-6 days

0

8

Honda 28431-ZE1-711

PLATE A, FRICTION

$3.99

$

Usually ships in 3-6 days

0

9

Honda 28432-ZG0-003

SEE PART DETAILS - SUP; PLATE B, FRICTION

$2.99

$

Usually ships in 3-6 days

0

10

Honda 28434-ZE1-711

COVER, REEL STARTER

$

$

Not available

11

Honda 28441-ZE1-711

SEE PART DETAILS - SUP; SPRING, FRICTION

$3.49

$

Usually ships in 3-6 days

0

12

Honda 28442-ZE1-711

SEE PART DETAILS - SUP; SPRING, RETURN
(Superseded to 28442-ZE1-713)

$21.99

$

Usually ships in 3-6 days

0

12

Honda 28442-ZE1-713

SEE PART DETAILS - PRI; SPRING, RETURN

$21.99

$

Usually ships in 3-6 days

0

13

Honda 28461-YA0-801

GRIP, STARTER

Note: Use up to Engine SN 1881487.

$

$

Not available

14

Honda 28461-ZE2-H21

SEE PART DETAILS - SUP; GRIP, STARTER

Note: Use from Engine SN 1881488.

$

$

Not available

15

Honda 28462-ZE1-711

ROPE, STARTER (#5X55") (N/A: USE P/N 08550-ZG921-11)

$

$

Currently unavailable

16

Honda 90003-ZG0-003

BOLT, REEL COVER

$

$

Not available

17

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, Qty 20+

0
