HS55 K2 TA (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) FUEL TANK Parts Diagram

Snow Blower, Made in Japan

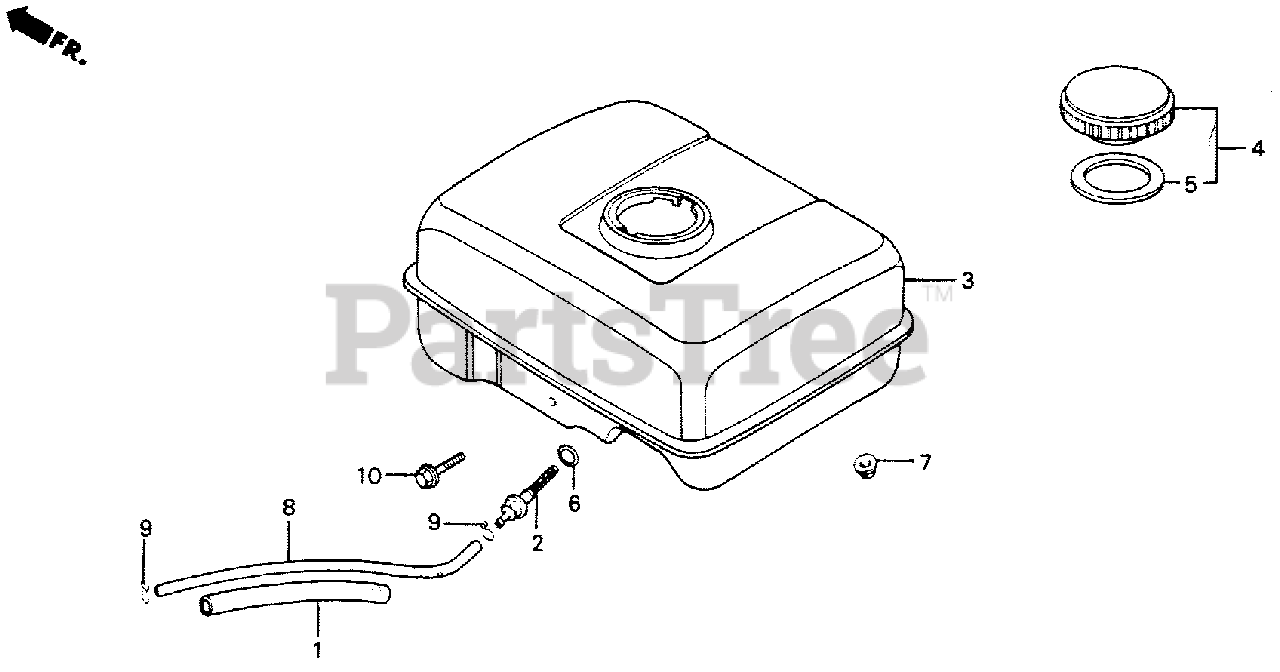

FUEL TANK Parts Diagram

  • Title

1

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM)

$4.99

$

In Stock, only 4 left!

0

2

Honda 16955-ZE1-000

SEE PART DETAILS - SUP; JOINT, FUEL TANK
(Superseded to 16955-ZE1-010)

$8.99

$

In Stock, Qty 20+

0

3

Honda 17510-ZE1-020ZA

SEE PART DETAILS - SUP; TANK, FUEL *NH31* (MCKINLEY WHITE)
(Superseded to 17510-ZE1-030ZA)

$176.99

$

Usually ships in 3-6 days

0

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 2115700.

$

$

Not available

4

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 2115701 to 2623677.

$

$

Not available

4

Honda 17620-ZE1-H01

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZE1-H03)

Note: Use from Engine SN 2623678.

$

$

Not available

4

Honda 17620-ZE1-H02

SEE PART DETAILS - SUP; CAP, FUEL FILLER

Note: Use from Engine SN 2623678.

$

$

Currently unavailable

5

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP
(Superseded to 17631-329-013)

$

$

Not available

6

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (13.5X1.5) (ARAI)

$3.99

$

In Stock, Qty 20+

0

7

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

8

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X140)

$54.99

$

In Stock, only 4 left!

0

9

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

10

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

In Stock, Qty 8

0
