HS55 K2 TA (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) CHUTER Parts Diagram

Snow Blower, Made in Japan

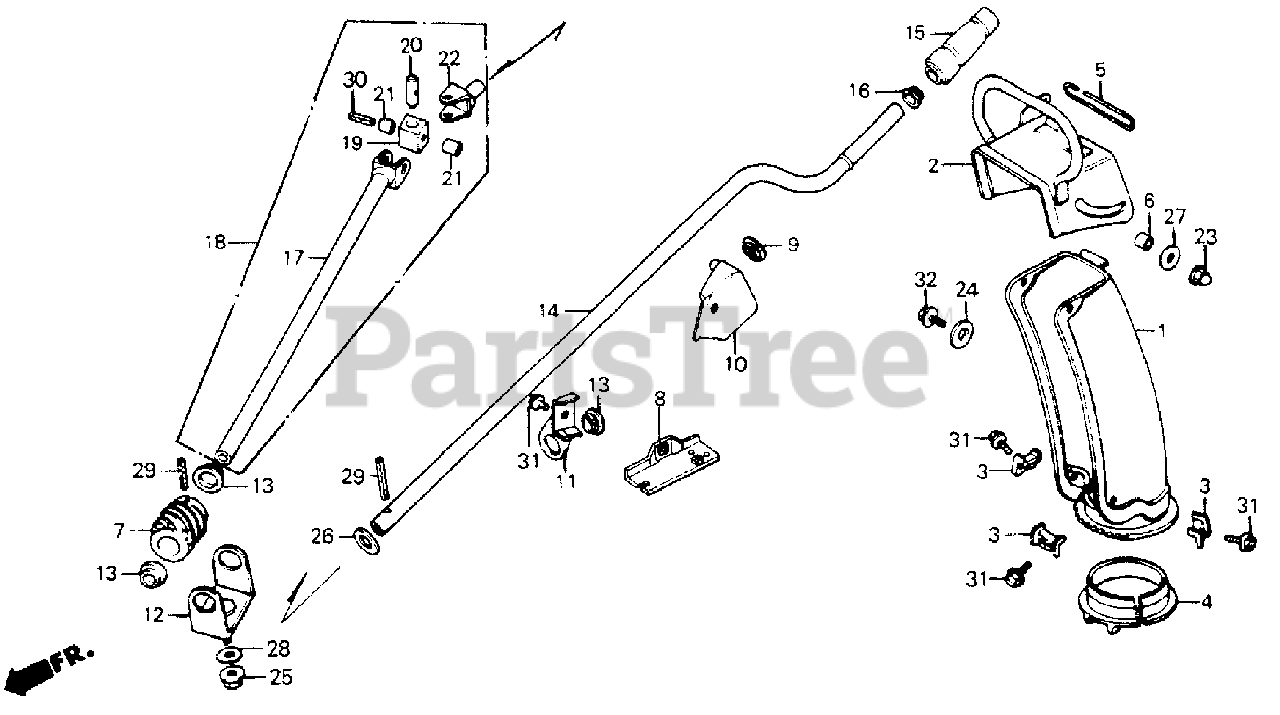

CHUTER Parts Diagram

  • Title

1

Honda 76310-736-610

CHUTE (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 76320-736-610

GUIDE, CHUTE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76321-732-000

PLATE, CHUTE SETTING (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 76325-732-000

BUSH, CHUTE

$

$

Not available

5

Honda 76326-732-010

PIN, CHUTE GUIDE

$

$

Not available

6

Honda 76329-736-000

COLLAR, CHUTE GUIDE (NOT AVAILABLE)

$

$

Not available

7

Honda 76331-730-000

GEAR, CHUTE DRIVE

$68.99

$

Usually ships in 3-6 days

0

8

Honda 76335-736-A10

HOLDER, HANDLE BRACKET

$

$

Not available

9

Honda 76336-730-000

BUSH, CHUTE HANDLE

$5.99

$

In Stock, only 4 left!

0

10

Honda 76337-736-000

BRACKET A, CHUTE HANDLE

$

$

Currently unavailable

11

Honda 76338-736-A00

BRACKET B, CHUTE HANDLE

$

$

Currently unavailable

12

Honda 76341-736-A00

STAY, DRIVE GEAR

$

$

Currently unavailable

13

Honda 76343-732-000

BUSH, DRIVE GEAR

$5.99

$

In Stock, only 2 left!

0

14

Honda 76350-736-000

HANDLE, CHUTE (UPPER)

$76.99

$

Usually ships in 3-6 days

0

15

Honda 76351-730-000

GRIP, CHUTE HANDLE

$12.99

$

In Stock, only 2 left!

0

16

Honda 76352-730-000

BUSH A, CHUTE HANDLE

$5.99

$

In Stock, only 2 left!

0

17

Honda 76355-736-A00

HANDLE, CHUTE (LOWER)

$

$

Not available

18

Honda 76360-736-A00

HANDLE, CHUTE (LOWER)

$

$

Not available

19

Honda 76361-736-000

PIECE, JOINT

$11.99

$

In Stock, only 1 left!

0

20

Honda 76362-736-000

PIN A, JOINT

$5.99

$

In Stock, only 1 left!

0

21

Honda 76363-736-000

PIN B, JOINT

$3.99

$

In Stock, only 2 left!

0

22

Honda 76365-736-000

FRAME

$10.99

$

Usually ships in 3-6 days

0

23

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

Usually ships in 3-6 days

0

24

Honda 90455-881-000

SPRING, LEVER

$4.49

$

Usually ships in 3-6 days

0

25

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

26

Honda 94102-16000

WASHER, PLAIN (16MM)

$1.49

$

In Stock, Qty 8

0

27

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

28

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

29

Honda 94305-40282

PIN, SPRING (4X28)

$2.99

$

In Stock, only 2 left!

0

30

Honda 94305-40322

PIN, SPRING (4X32)

$2.99

$

In Stock, only 2 left!

0

31

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

31

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 19

0

32

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 9

0
