HS55 K2 TA (S55K2) - Honda Snow Blower, Made in Japan (SN: HS55K2-1200001 - HS55K2-9999999) CARBURETOR Parts Diagram

Snow Blower, Made in Japan

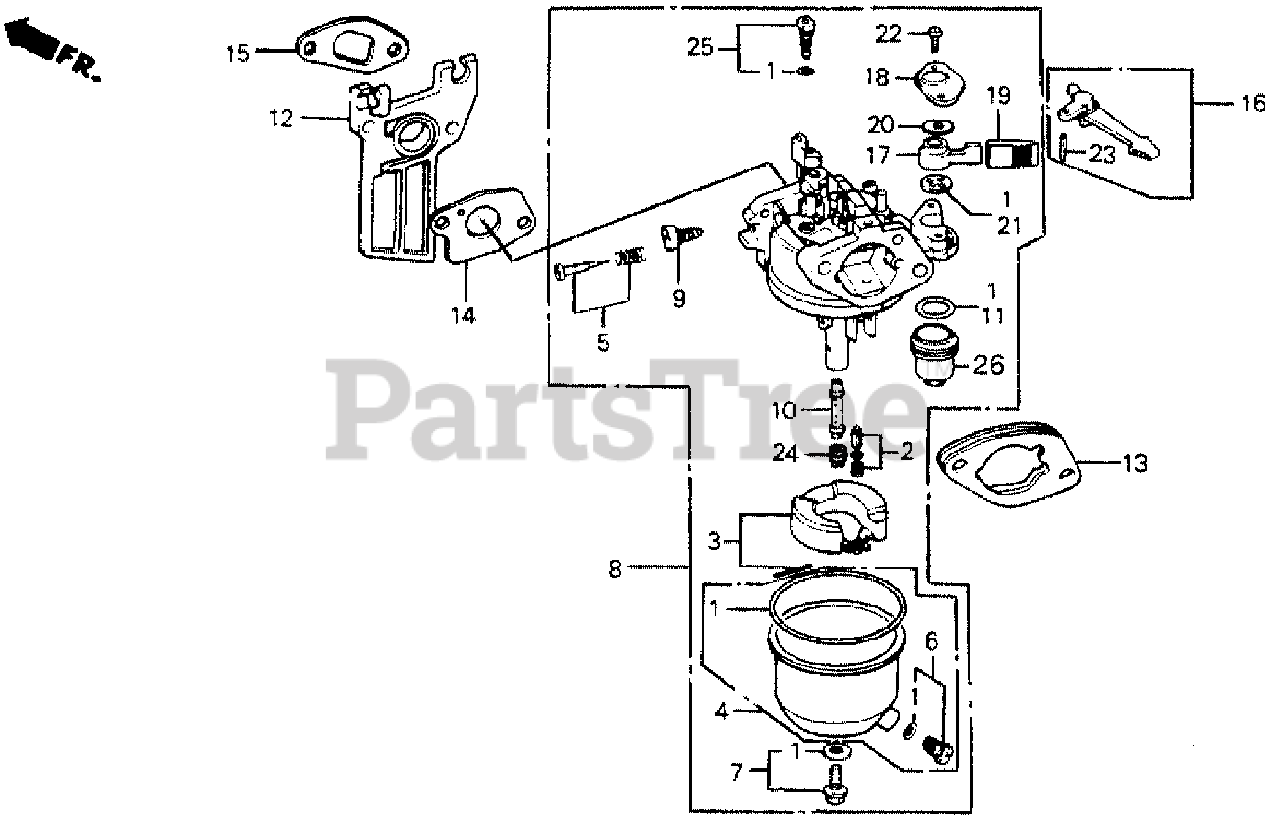

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE1-811

SEE PART DETAILS - SUP; GASKET SET
(Superseded to 16010-ZE1-812)

$19.99

$

In Stock, only 4 left!

0

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, only 4 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$28.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZE0-005

FLOAT SET

$29.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT
(Superseded to 16015-ZE0-831)

$37.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$14.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE1-713

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE07A C)
(Superseded to 16100-ZE1-715)

Note: Use up to Engine SN 1890662.

$118.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE1-714

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE07A D)
(Superseded to 16100-ZE1-715)

$118.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE1-715

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE07A E)

$118.99

$

In Stock, only 1 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16166-ZE1-711

NOZZLE, MAIN

$29.99

$

Usually ships in 3-6 days

0

11

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, Qty 8

0

12

Honda 16211-ZE1-000

INSULATOR, CARBURETOR

$23.99

$

In Stock, only 1 left!

0

13

Honda 16220-ZE1-000

SEE PART DETAILS - SUP; SPACER, CARBURETOR
(Superseded to 16220-ZE1-020)

Note: Use up to Engine SN 1786084.

$7.99

$

In Stock, Qty 20+

0

13

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use up to Engine SN 1892647.

$7.99

$

In Stock, Qty 20+

0

13

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR

Note: Use from Engine SN 1892648.

$7.99

$

In Stock, Qty 20+

0

14

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

14

Honda 16221-ZE0-800

SEE PART DETAILS - SUP; GASKET, CARBURETOR

$

$

Currently unavailable

14

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

15

Honda 16223-ZE1-800

GASKET, INSULATOR

$3.49

$

In Stock, only 1 left!

0

16

Honda 16610-ZE1-810

LEVER, CHOKE (REMOTE)

$10.99

$

Usually ships in 3-6 days

0

17

Honda 16953-ZE1-405

SEE PART DETAILS - PRI; LEVER, VALVE

$

$

Not available

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

19

Honda 16955-ZE2-H21

CAP, LEVER

Note: Use from Engine SN BE07A C.

$11.99

$

Usually ships in 3-6 days

0

20

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, VALVE LEVER

$3.99

$

In Stock, only 1 left!

0

21

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE
(Superseded to 16957-ZE1-812)

$4.49

$

In Stock, Qty 7

0

21

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE

$4.49

$

In Stock, Qty 7

0

22

Honda 93500-03008-0H

SCREW, PAN (3X8)

$0.99

$

In Stock, Qty 8

0

23

Honda 94305-20122

PIN, SPRING (2X12)

$2.49

$

In Stock, Qty 5

0

24

Honda 99101-124-0650

JET, MAIN (#65)

$12.99

$

In Stock, only 2 left!

0

24

Honda 99101-124-0680

JET, MAIN (#68)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 99101-124-0700

JET, MAIN (#70)

$11.99

$

In Stock, only 1 left!

0

25

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$22.99

$

In Stock, only 1 left!
