HS55 K1 WA (S55K1) - Honda Snow Blower, Made in Japan (SN: HS55K1-1100001 - HS55K1-9999999) WHEEL Parts Diagram

Snow Blower, Made in Japan

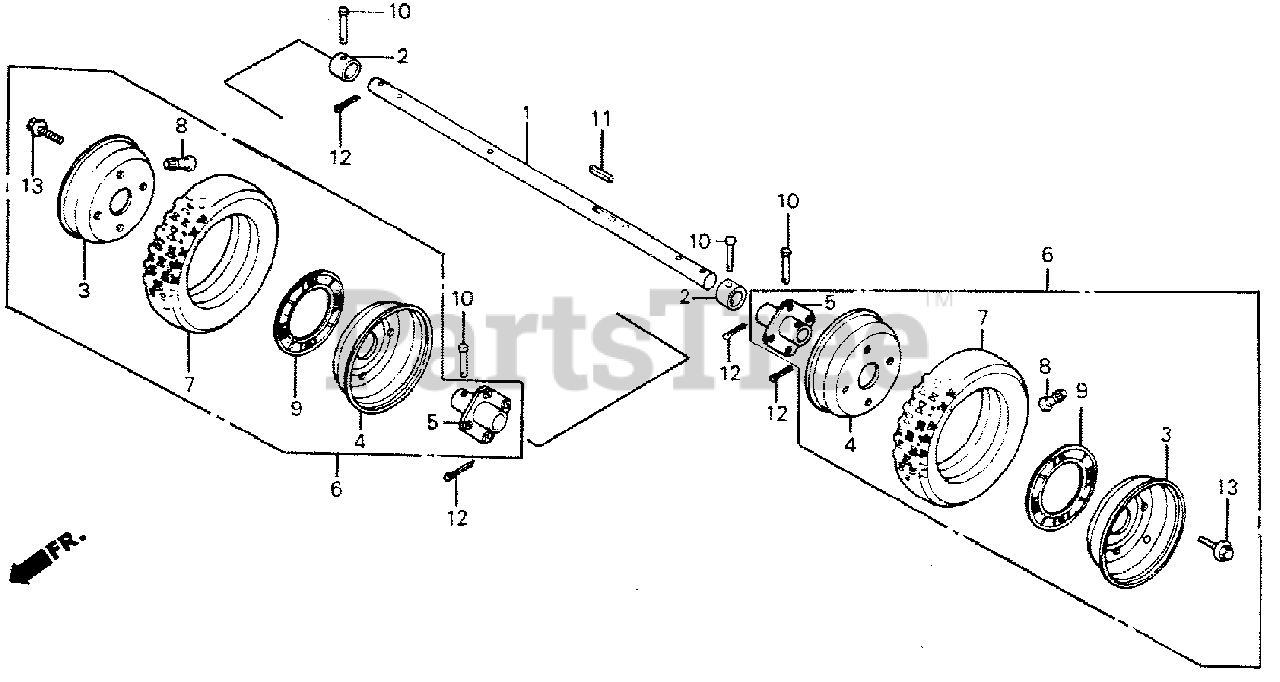

WHEEL Parts Diagram

  • Title

1

Honda 42311-732-010

SHAFT, WHEEL

$

$

Currently unavailable

2

Honda 42316-732-000

COLLAR, WHEEL SHAFT

$

$

Currently unavailable

3

Honda 42701-732-003

WHEEL A (3SPWX6DCT)
(Superseded to 42701-732-004)

$27.99

$

In Stock, only 2 left!

0

4

Honda 42702-732-003

WHEEL B (3SPWX6DCT)
(Superseded to 42702-732-004)

$

$

Not available

5

Honda 42703-732-003

HUB, TIRE (HA-TYPE)

$

$

Not available

6

Honda 42750-732-013

TIRE ASSY. (14X4.0-6) (B-905)

$

$

Not available

7

Honda 42751-732-013

SEE PART DETAILS - SUP; TIRE (14X4.0-6)

$

$

Not available

8

Honda 42753-SB8-661

SEE PART DETAILS - PRI; VALVE, RIM (SCHRADER)

$2.49

$

In Stock, only 3 left!

0

8

Honda 42753-634-003

SEE PART DETAILS - SUP; VALVE, RIM (BS)

$

$

Not available

8

Honda 42753-671-003

SEE PART DETAILS - SUP; VALVE, RIM (TAIHEIYO)
(Superseded to 42753-SB8-661)

$2.49

$

In Stock, only 3 left!

0

9

Honda 42754-732-003

GASKET (U-75)

$27.99

$

In Stock, only 1 left!

0

10

Honda 90701-732-000

PIN (6.2X38)

$5.99

$

In Stock, Qty 20+

0

11

Honda 90741-732-000

KEY (5X5X21)

$7.99

$

In Stock, only 1 left!

0

12

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 17

0

13

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

13

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
