HS55 K1 TAS (S55K1) - Honda Snow Blower, Made in Japan (SN: HS55K1-1100001 - HS55K1-1200000) STARTER MOTOR (-2056819) Parts Diagram

Snow Blower, Made in Japan

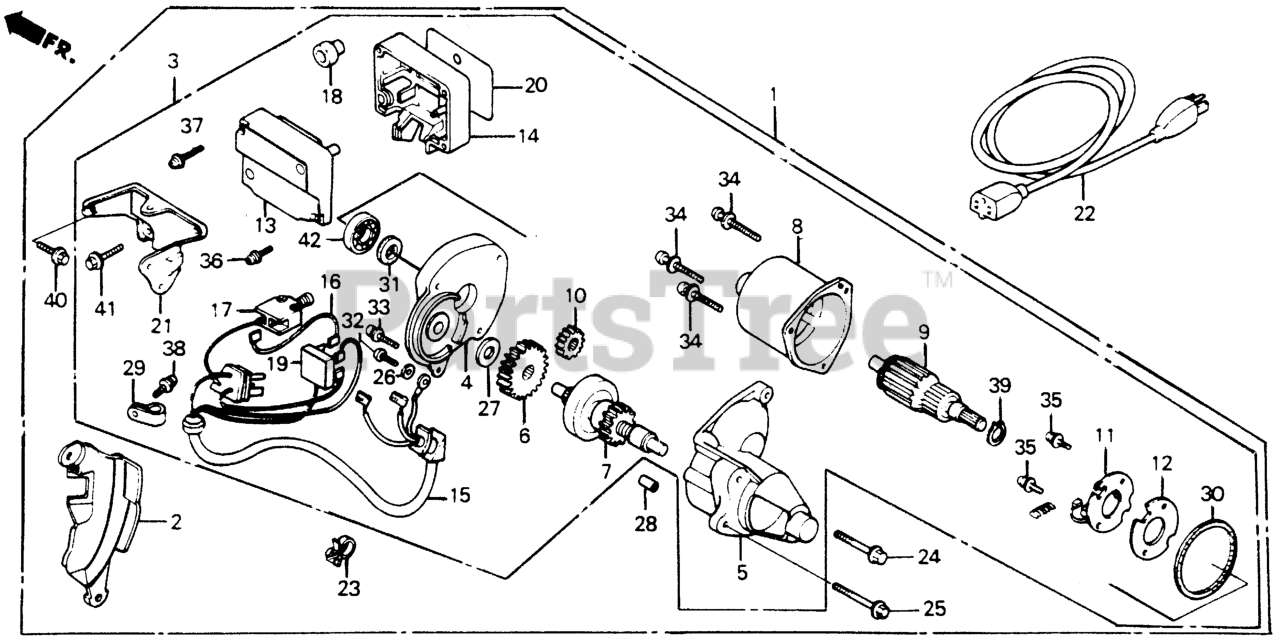

STARTER MOTOR (-2056819) Parts Diagram

  • Title

2

Honda 19611-ZE1-840

PLATE, SIDE (STARTER MOTOR) Use up to Engine SN 3172747.

Note: Use up to Engine SN 2056819.

$12.99

$

Usually ships in 3-6 days

0

3

Honda 31200-ZE1-781

MOTOR ASSY., STARTER Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Currently unavailable

4

Honda 31211-ZE1-781

HOUSING, CENTER Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

5

Honda 31212-ZE1-781

HOUSING, PINION Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

6

Honda 31213-ZE1-781

GEAR, REDUCTION Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$96.99

$

Usually ships in 3-6 days

0

7

Honda 31214-ZE1-781

CLUTCH Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

8

Honda 31216-ZE1-781

YOKE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Currently unavailable

9

Honda 31217-ZE1-781

ARMATURE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Currently unavailable

10

Honda 31218-ZE1-781

GEAR, DRIVE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$57.99

$

Usually ships in 3-6 days

0

11

Honda 31230-ZE1-781

HOLDER ASSY., BRUSH Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Currently unavailable

12

Honda 31237-ZE1-781

SHEET, HOLDER Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

13

Honda 31601-ZE1-781

COVER Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

14

Honda 31602-ZE1-781

CASE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Currently unavailable

15

Honda 31605-ZE1-781

WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Currently unavailable

16

Honda 31606-ZE1-781

SUB-WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$14.99

$

Usually ships in 3-6 days

0

17

Honda 31611-ZE1-781

SWITCH, STARTER (Honda Code 2299584). (A.C. 380V-16A)

Note: Use up to Engine SN 2056819.

$73.99

$

Usually ships in 3-6 days

0

18

Honda 31612-ZE1-781

CAP Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$9.49

$

Usually ships in 3-6 days

0

19

Honda 31614-ZE1-781

DIODE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$97.99

$

Usually ships in 3-6 days

0

20

Honda 31616-ZE1-781

PLATE, CAUTION Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

21

Honda 31617-ZE1-781

BRACKET, SWITCH BOX Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$26.99

$

Usually ships in 3-6 days

0

22

Honda 32410-ZE1-780

WIRE, POWER Use up to Engine SN 2056819.

Note: (Optional) Use up to Engine SN 2056819.

$

$

Currently unavailable

23

Honda 36103-ZE1-000

HOLDER, STOP SWITCH WIRE Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$2.49

$

In Stock, only 1 left!

0

24

Honda 90017-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 0636076).

Note: Use up to Engine SN 2056819.

$3.49

$

In Stock, only 1 left!

0

25

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

26

Honda 90401-ZE1-781

WASHER, STAR (4MM) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

27

Honda 90402-ZE1-781

WASHER Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

28

Honda 90702-881-000

PIN, DOWEL (8X10) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

29

Honda 91475-ZE1-781

CLIP, CORD (5/16) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

30

Honda 91601-ZE1-781

GASKET Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$

$

Not available

31

Honda 91602-ZE1-781

OIL SEAL Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$5.49

$

In Stock, only 1 left!

0

32

Honda 93500-04006-3C

SCREW, PAN (4X6) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

33

Honda 93892-05016-08

SCREW-WASHER (5X16) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$1.49

$

Usually ships in 3-6 days

0

34

Honda 93892-05030-18

SCREW-WASHER (5X30) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$1.49

$

Usually ships in 3-6 days

0

35

Honda 93893-04012-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X12) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

35

Honda 93893-04012-18

SEE PART DETAILS - SUP; SCREW-WASHER (4X12) Use up to Engine SN 2056819.
(Superseded to 93893-04012-08)

Note: Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

36

Honda 93893-04020-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X20) (Honda Code 1191089).

Note: Use up to Engine SN 2056819.

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93893-04030-18

SEE PART DETAILS - PRI; SCREW-WASHER (4X30) (Honda Code 2299683).

Note: Use up to Engine SN 2056819.

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93893-05016-08

SCREW-WASHER (5X16) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$1.99

$

Usually ships in 3-6 days

0

39

Honda 94510-12000

CIRCLIP (OUTER) (12MM) Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$2.49

$

In Stock, only 3 left!

0

40

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

Note: Use up to Engine SN 2056819.

$1.99

$

In Stock, Qty 13

0

41

Honda 95701-06040-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X40) (Honda Code 2105872).

Note: Use up to Engine SN 2056819.

$2.49

$

Usually ships in 3-6 days

0

42

Honda 96130-60013-10

BEARING, RADIAL BALL Use up to Engine SN 2056819.

Note: Use up to Engine SN 2056819.

$19.99

$

Usually ships in 3-6 days

0
