HS55 K1 TAS (S55K1) - Honda Snow Blower, Made in Japan (SN: HS55K1-1100001 - HS55K1-1200000) CONTROL PANEL Parts Diagram

Snow Blower, Made in Japan

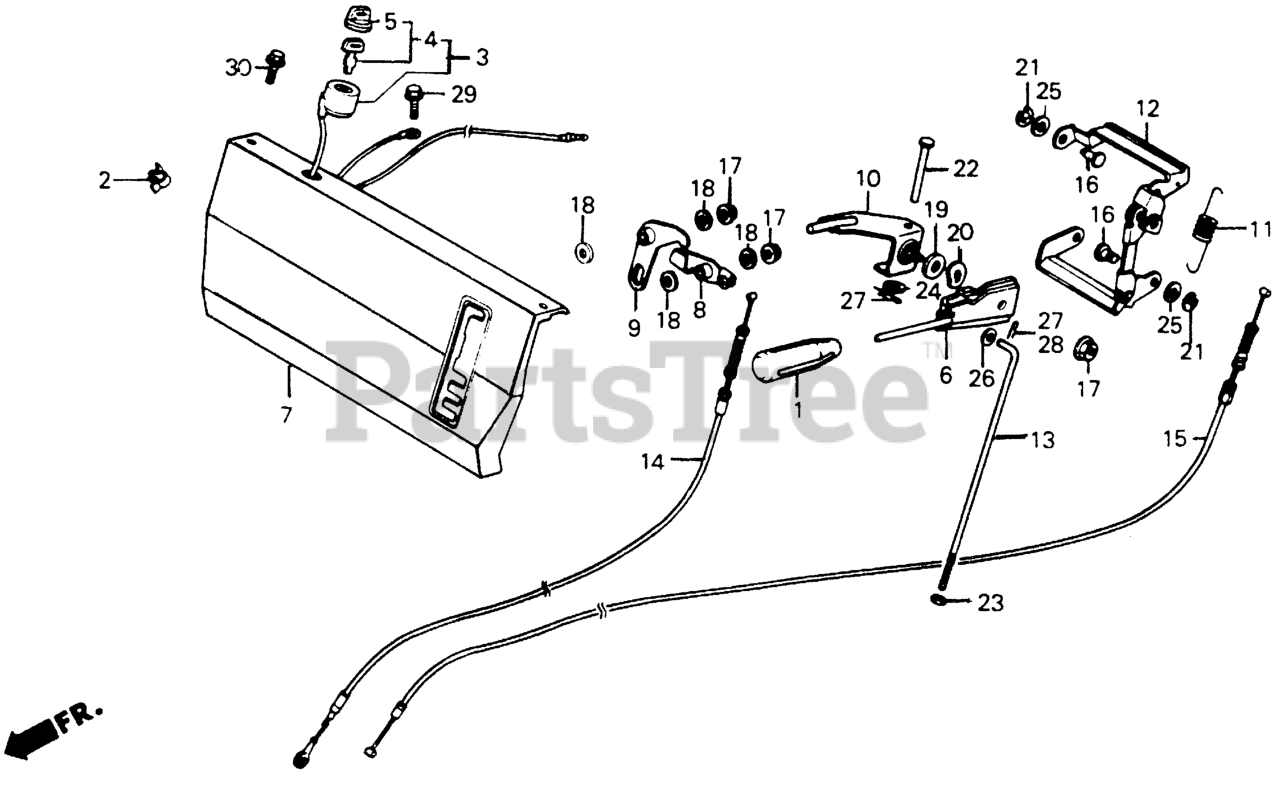

CONTROL PANEL Parts Diagram

  • Title

1

Honda 24411-736-000

GRIP, CHANGE LEVER

$7.49

$

Usually ships in 3-6 days

0

2

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

3

Honda 35100-736-612

SWITCH ASSY., COMBINATION

$

$

Currently unavailable

4

Honda 35110-736-612

SEE PART DETAILS - PRI; KEY ASSY., COMBINATION SWITCH

$12.99

$

Usually ships in 3-6 days

0

5

Honda 35113-958-681

CAP, COMBINATION SWITCH KEY

$

$

Not available

6

Honda 54211-736-A00

SEE PART DETAILS - PRI; LEVER, CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 54220-736-A10

PANEL, CONTROL

$

$

Currently unavailable

8

Honda 54223-736-000

LEVER, CLUTCH DRIVE

Note: Use up to Frame SN 1137129.

$

$

Currently unavailable

8

Honda 54223-738-E00

LEVER, CLUTCH DRIVE

Note: Use from Frame SN 1137130.

$

$

Currently unavailable

9

Honda 54226-736-000

LEVER, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 54227-736-A00

ARM, CHANGE LEVER

$

$

Not available

11

Honda 54229-736-A00

SEE PART DETAILS - SUP; SPRING, LEVER RETURN
(Superseded to 54229-736-A01)

Note: Use up to Frame SN 1127228.

$

$

Not available

11

Honda 54229-736-A01

SEE PART DETAILS - PRI; SPRING, LEVER RETURN

Note: Use from Frame SN 1127229.

$

$

Not available

12

Honda 54230-736-A00

LEVER, SUB-CHANGE

$29.99

$

Usually ships in 3-6 days

0

13

Honda 54521-736-000

ROD, GEARSHIFT

$

$

Not available

14

Honda 54525-736-000

CABLE, CHANGE (NOT AVAILABLE)

$

$

Not available

15

Honda 54526-736-000

SEE PART DETAILS - SUP; CABLE, SUB-TRANSMISSION

Note: Use up to Frame SN 1127228.

$

$

Not available

15

Honda 54526-736-020

CABLE, SUB-TRANSMISSION

Note: Use from Frame SN 1127229.

$

$

Currently unavailable

16

Honda 90752-736-000

SEE PART DETAILS - PRI; PIN (6MM)

$

$

Currently unavailable

17

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

18

Honda 90412-KZL-840

WASHER (10MM)

$0.99

$

In Stock, only 2 left!

0

18

Honda 90412-329-000

WASHER, THRUST (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

20

Honda 90455-881-000

SEE PART DETAILS - PRI; SPRING, LEVER

$4.49

$

Usually ships in 3-6 days

0

21

Honda 90603-720-000

CIRCLIP (6MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 90702-732-670

PIN, LINK

$

$

Not available

23

Honda 94001-08000-0S

SEE PART DETAILS - PRI; NUT, HEX. (8MM) (Honda Code 0167338).

$1.99

$

In Stock, Qty 10

0

25

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

27

Honda 94251-06000

PIN, LOCK (6MM) (Honda Code 0058487).

$1.49

$

In Stock, Qty 11

0

28

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 13

0

29

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

30

Honda 96001-06010-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 5

0
