HS55 K1 TAS (S55K1) - Honda Snow Blower, Made in Japan (SN: HS55K1-1100001 - HS55K1-1200000) CONTROL Parts Diagram

Snow Blower, Made in Japan

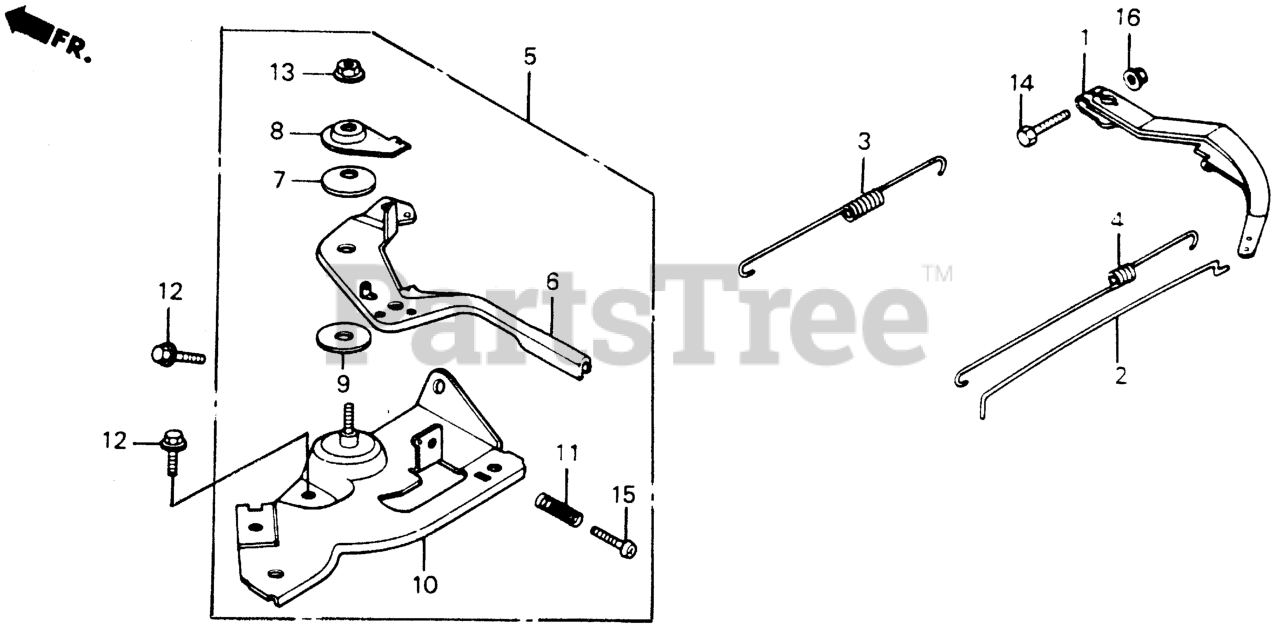

CONTROL Parts Diagram

  • Title

1

Honda 16551-ZE0-010

SEE PART DETAILS - PRI; ARM, GOVERNOR (Honda Code 1950609).

$15.99

$

Usually ships in 3-6 days

0

1

Honda 16551-ZE1-010

SEE PART DETAILS - SUP; ARM, GOVERNOR (Honda Code 1807239).

$15.99

$

Usually ships in 3-6 days

0

2

Honda 16555-ZE1-000

ROD, GOVERNOR (Honda Code 1427319).

$4.99

$

In Stock, only 4 left!

0

3

Honda 16561-ZE1-710

SPRING, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

4

Honda 16562-ZE1-020

SEE PART DETAILS - PRI; SPRING, THROTTLE RETURN (Honda Code 1950625).

$3.99

$

In Stock, Qty 17

0

5

Honda 16500-ZH8-020

SEE PART DETAILS - SUP; CONTROL ASSY. Use from Engine SN 3172542.
(Superseded to 16500-ZH8-030)

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16500-ZH8-030

SEE PART DETAILS - PRI; CONTROL ASSY. (Honda Code 6262299).

$41.99

$

Usually ships in 3-6 days

0

6

Honda 16571-ZH8-020

SEE PART DETAILS - PRI; LEVER, CONTROL (Honda Code 6145338).

$14.99

$

In Stock, only 1 left!

0

7

Honda 16574-ZE1-000

SPRING, LEVER (Honda Code 1427384).

$4.49

$

In Stock, only 2 left!

0

8

Honda 16575-ZH8-000

SEE PART DETAILS - PRI; WASHER, CONTROL LEVER (Honda Code 3683604).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 16578-ZE1-000

SPACER, CONTROL LEVER (Honda Code 1427400).

$5.49

$

In Stock, only 4 left!

0

10

Honda 16580-ZH8-020

SEE PART DETAILS - SUP; BASE, CONTROL Use from Engine SN 3172542.
(Superseded to 16580-ZH8-030)

$24.99

$

Usually ships in 3-6 days

0

10

Honda 16580-ZH8-030

SEE PART DETAILS - PRI; BASE, CONTROL Use from Engine SN 3172542.

$24.99

$

Usually ships in 3-6 days

0

11

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

$4.99

$

In Stock, Qty 7

0

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

13

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

Usually ships in 3-6 days

0

14

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

Note: Use from Engine SN 1770358.

$3.49

$

In Stock, only 3 left!

0

14

Honda 92101-06020-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X20) (Honda Code 2528925).

Note: Use up to Engine SN 1770357.

$1.49

$

Usually ships in 3-6 days

0

15

Honda 93500-05020-0H

SEE PART DETAILS - PRI; SCREW, PAN (5X20) (Honda Code 0331389).

Note: Use up to Engine SN 2637583.

$1.49

$

Usually ships in 3-6 days

0

16

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0
