HS55 K1 TA (S55K1) - Honda Snow Blower, Made in Japan (SN: HS55K1-1100001 - HS55K1-9999999) CRAWLER Parts Diagram

Snow Blower, Made in Japan

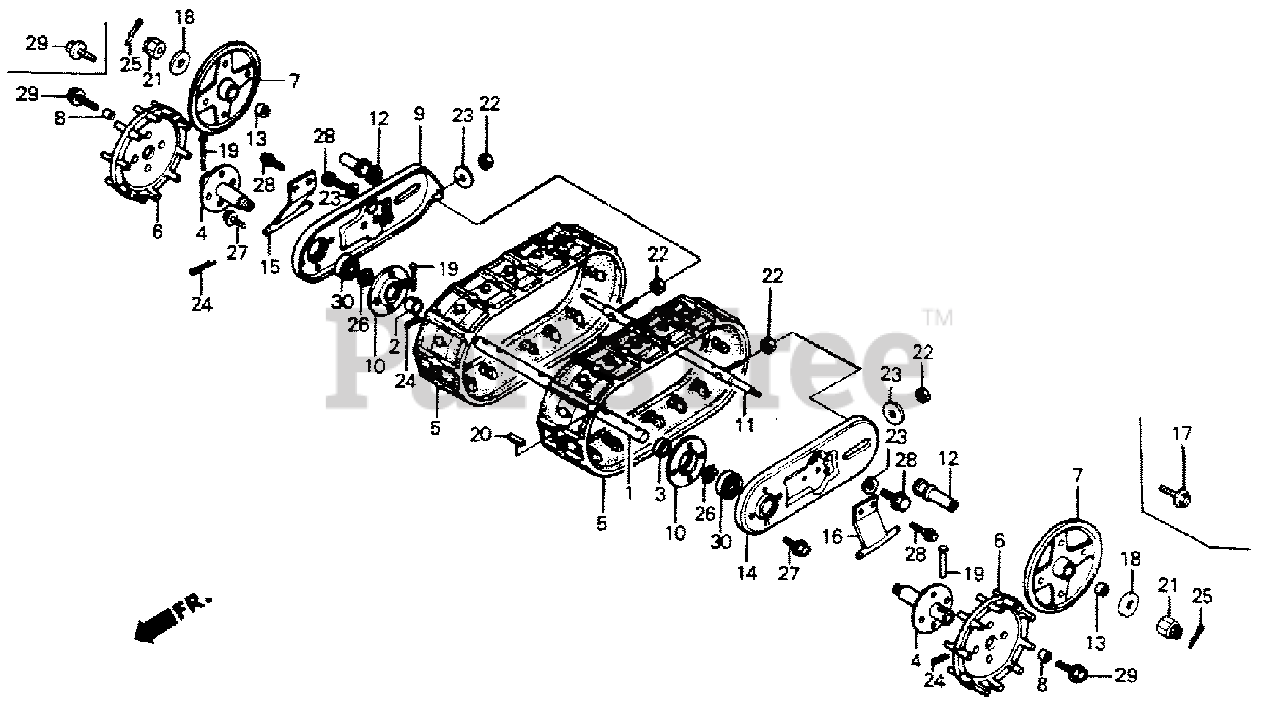

CRAWLER Parts Diagram

  • Title

1

Honda 42311-732-010

SHAFT, WHEEL

$

$

Currently unavailable

2

Honda 42316-732-000

COLLAR, WHEEL SHAFT

$

$

Currently unavailable

3

Honda 42318-732-670

COLLAR, WHEEL SHAFT (B)

$

$

Not available

4

Honda 42703-732-900

HUB, CRAWLER

$

$

Not available

5

Honda 42755-732-901

CRAWLER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 42756-732-901

SPROCKET, CRAWLER

$

$

Not available

7

Honda 42757-732-901

ROLLER, CRAWLER (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 42758-732-900

COLLAR, SPROCKET (NOT AVAILABLE)

$

$

Not available

9

Honda 42761-732-900

PLATE, R. CRAWLER

$

$

Currently unavailable

10

Honda 42762-732-900

HOLDER, CRAWLER BEARING

$

$

Not available

11

Honda 42764-732-900

PIPE, CRAWLER (NOT AVAILABLE)

Note: Use up to Frame SN 1127228.

$

$

Currently unavailable

11

Honda 42764-736-A00

PIPE, CRAWLER (NOT AVAILABLE)

Note: Use from Frame SN 1127229.

$

$

Currently unavailable

12

Honda 42765-732-900

SHAFT, ROLLER (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 42767-732-900

BUSH, ROLLER

$

$

Not available

14

Honda 42771-732-900

PLATE, L. CRAWLER

$

$

Not available

15

Honda 42772-732-900

GUIDE, R. CRAWLER

$

$

Not available

16

Honda 42773-732-900

GUIDE, L. CRAWLER

$

$

Not available

17

Honda 90107-732-900

BOLT, L. (8X22)

Note: Use up to Frame SN 1127228.

$

$

Not available

18

Honda 90534-706-010

WASHER, LOCK (8MM)

Note: Use up to Frame SN 1127228.

$6.99

$

Usually ships in 3-6 days

0

18

Honda 90534-736-A00

WASHER (12MM) (NOT AVAILABLE)

Note: Use from Frame SN 1127229.

$

$

Currently unavailable

19

Honda 90701-732-000

PIN (6.2X38)

$5.99

$

In Stock, Qty 20+

0

20

Honda 90741-732-000

KEY (5X5X21)

$7.49

$

In Stock, only 1 left!

0

21

Honda 94011-12000-0S

NUT, CASTLE (12MM)

Note: Use from Frame SN 1127229.

$1.99

$

Usually ships in 3-6 days

0

22

Honda 94030-08000

NUT, HEX. (8MM)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

24

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

25

Honda 94201-30450

PIN, COTTER (3.0X45)

Note: Use from Frame SN 1127229.

$1.49

$

In Stock, Qty 10

0

26

Honda 94510-25000

CIRCLIP (OUTER) (25MM)

$1.99

$

In Stock, Qty 16

0

27

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0

28

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14)

$2.49

$

In Stock, Qty 20+

0

29

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

Note: Use up to Frame SN 1127228.

$2.49

$

In Stock, only 1 left!

0

29

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

Note: Use from Frame SN 1127229.

$2.49

$

In Stock, only 1 left!

0

29

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: Use up to Frame SN 1127228.

$2.49

$

In Stock, only 1 left!

0

29

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

Note: Use from Frame SN 1127229.

$2.49

$

In Stock, only 1 left!

0

30

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$25.99

$

Usually ships in 3-6 days

0
