HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) FUEL TANK Parts Diagram

22" Snow Blower, Made in Japan

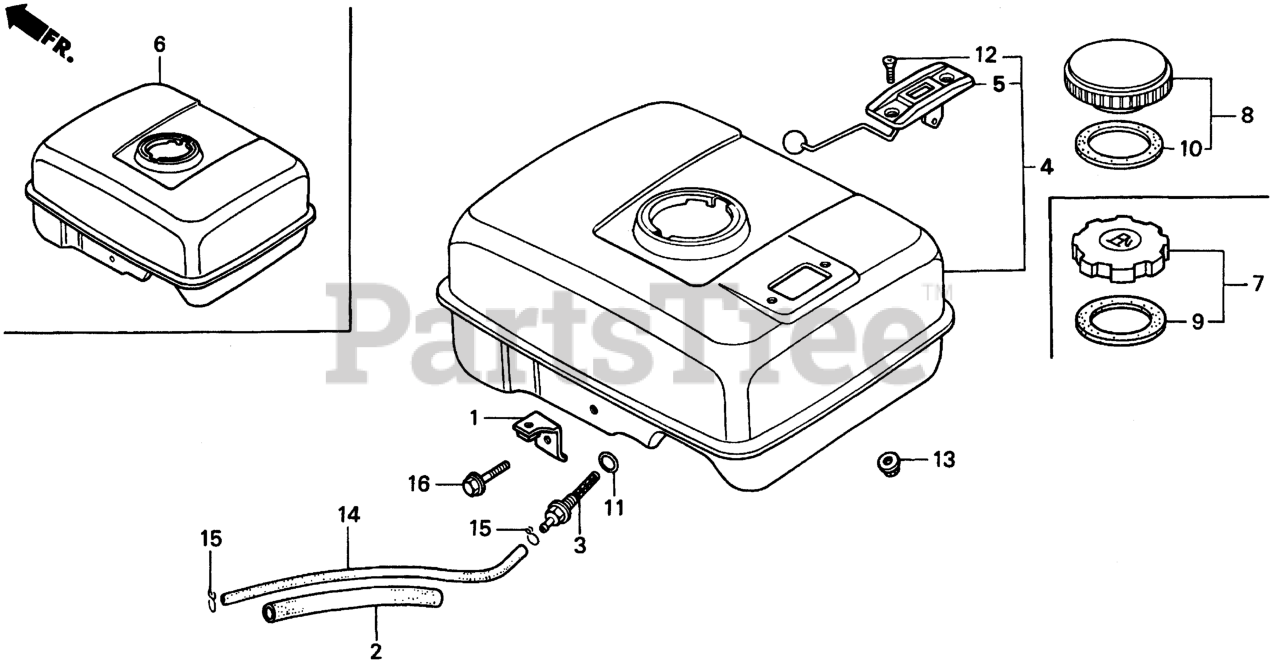

FUEL TANK Parts Diagram

  • Title
1

Honda 16402-736-000

STAY, ENGINE CONTROL COVER

$

$

Not available

2

Honda 16854-ZH8-000

SEE PART DETAILS - PRI; RUBBER, SUPPORTER (107MM) (Honda Code 3683646).

$4.99

$

In Stock, Qty 14

0

3

Honda 16955-ZE1-010

SEE PART DETAILS - PRI; JOINT, FUEL TANK

$8.99

$

In Stock, Qty 20+

0

6

Honda 17510-ZE1-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) Use up to Engine SN 3033315.

$176.99

$

Usually ships in 3-6 days

0

8

Honda 17620-ZE1-H01

SEE PART DETAILS - SUP; CAP, FUEL FILLER
(Superseded to 17620-ZE1-H03)

Note: Use from Engine SN 2424335.

$

$

Not available

8

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (BLACK) Use up to Engine SN 2115700.
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 2424334.

$

$

Not available

8

Honda 17620-Z0T-305

SEE PART DETAILS - PRI; CAP, FUEL FILLER (CHROME PLATED)

Note: Use up to Engine SN 2424334.

$

$

Not available

8

Honda 17620-Z0T-315

CAP COMP

Note: Use up to Engine SN 2424334.

$19.99

$

In Stock, Qty 8

0

10

Honda 17631-ZE1-000

GASKET, FUEL FILLER CAP (39X58X3) (NOT AVAILABLE)

$3.49

$

In Stock, only 3 left!

0

10

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP Use from Engine SN 1543258.
(Superseded to 17631-329-013)

$

$

Not available

10

Honda 17631-329-013

GASKET, FUEL FILLER CAP (39X58X3)

$

$

Not available

11

Honda 91353-671-003

SEE PART DETAILS - PRI; O-RING (14MM) (ARAI) Use up to Engine SN 2949254.

$3.99

$

In Stock, Qty 20+

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

14

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

15

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

16

Honda 95701-06025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (Honda Code 2105831).

$2.49

$

In Stock, Qty 8

0
