HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) CRAWLER Parts Diagram

22" Snow Blower, Made in Japan

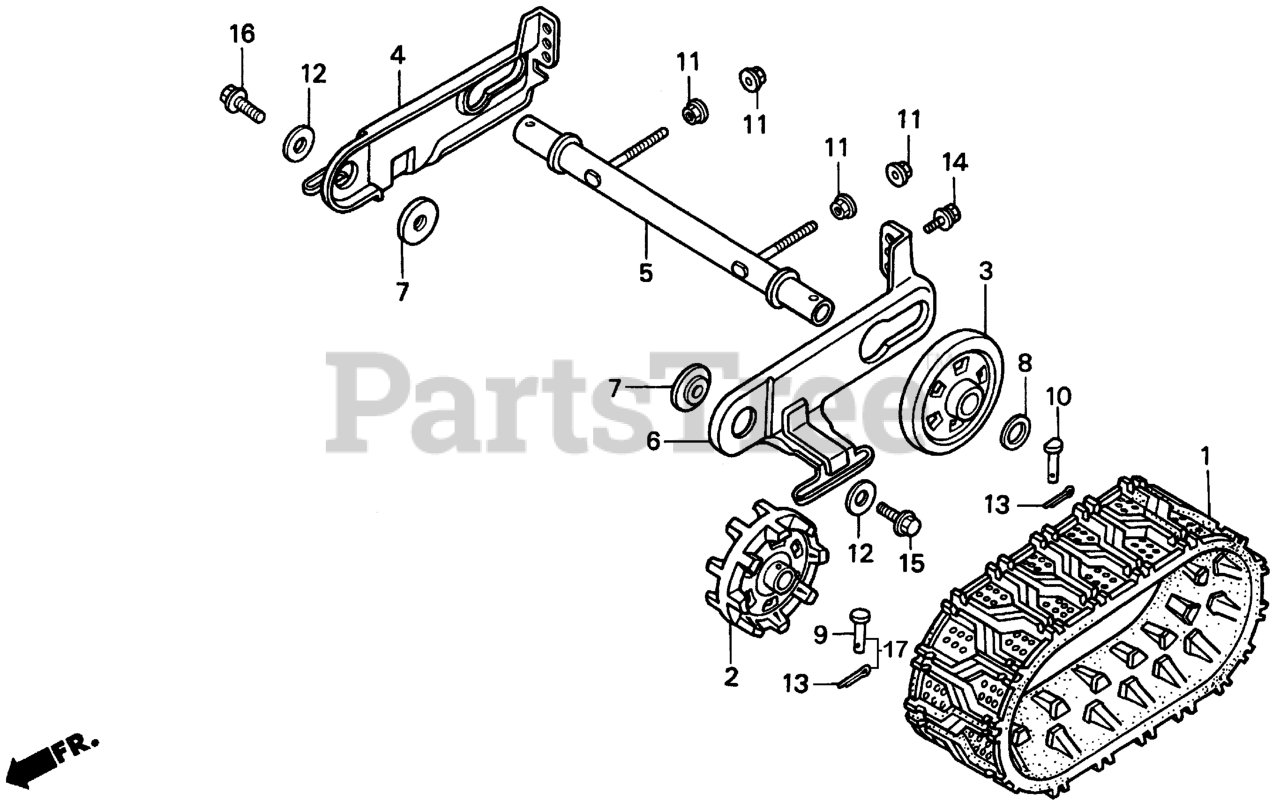

CRAWLER Parts Diagram

  • Title

1

Honda 42755-743-013

CRAWLER

$184.99

$

Usually ships in 3-6 days

0

2

Honda 42756-743-000

SPROCKET, CRAWLER

$73.99

$

Usually ships in 3-6 days

0

3

Honda 42757-743-000

ROLLER, CRAWLER

$78.99

$

Usually ships in 3-6 days

0

4

Honda 42761-743-010

PLATE, R. CRAWLER GUIDE

$98.99

$

Usually ships in 3-6 days

0

5

Honda 42764-743-010

PIPE, CRAWLER

$103.99

$

Usually ships in 3-6 days

0

6

Honda 42771-743-010

PLATE, L. CRAWLER GUIDE

$98.99

$

Usually ships in 3-6 days

0

7

Honda 90402-743-000

WASHER, WHEEL SHAFT

$7.99

$

Usually ships in 3-6 days

0

8

Honda 90403-952-770

WASHER, PLAIN (22MM)

$3.49

$

In Stock, only 3 left!

0

9

Honda 90701-732-000

PIN (6.2X38)

$5.99

$

In Stock, Qty 20+

0

10

Honda 90702-743-000

PIN (6MM)

$4.49

$

In Stock, Qty 20+

0

11

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 5

0

12

Honda 94103-10000

WASHER, PLAIN (10MM)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 17

0

14

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 20+

0

15

Honda 95701-10025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0

16

Honda 95701-10025-00

SEE PART DETAILS - PRI; BOLT, FLANGE (10X25)

$2.99

$

In Stock, Qty 7

0
