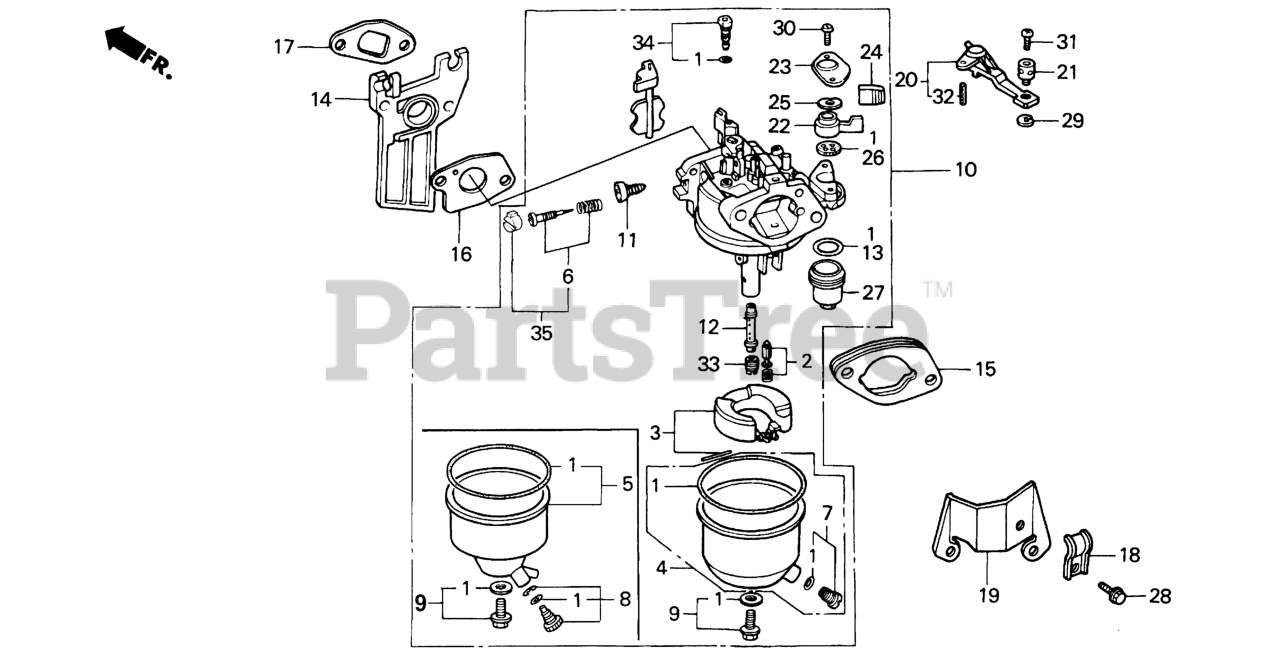

HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) CARBURETOR Parts Diagram

22" Snow Blower, Made in Japan

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE1-811

SEE PART DETAILS - SUP; GASKET SET (Honda Code 1672179).
(Superseded to 16010-ZE1-812)

Note: Use up to Engine SN BE07A D.

$20.99

$

In Stock, Qty 8

0

1

Honda 16010-ZE1-812

SEE PART DETAILS - PRI; GASKET SET (Honda Code 3477171).

Note: Use from Engine SN BE07A E. Use up to Engine SN BE07A D.

$20.99

$

In Stock, Qty 8

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZE0-005

FLOAT SET (Honda Code 1441492).

$31.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT (CARBURETOR NO.)

Note: Use up to Engine SN BE07A D. Use from Engine SN BE07A E.

$38.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE1-811

CHAMBER SET, FLOAT (CARBURETOR NO.) (FOR BE12A A)
(Superseded to 16015-ZE0-831)

Note: Use up to Engine SN BE07A D.

$38.99

$

In Stock, only 2 left!

0

6

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$15.99

$

In Stock, only 1 left!

0

7

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

9

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

9

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

10

Honda 16100-ZE1-714

SEE PART DETAILS - SUP; CARBURETOR ASSY. (BE07A D)
(Superseded to 16100-ZE1-715)

$129.99

$

In Stock, only 1 left!

0

10

Honda 16100-ZE1-715

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BE07A E)

$129.99

$

In Stock, only 1 left!

0

11

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

12

Honda 16166-ZE1-711

NOZZLE, MAIN

$31.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE1-000

INSULATOR, CARBURETOR (Honda Code 1427137).

$25.99

$

In Stock, only 1 left!

0

15

Honda 16220-ZE1-020

SEE PART DETAILS - PRI; SPACER, CARBURETOR (Honda Code 2534055).

$8.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZE0-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR (Honda Code 4301172).
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

16

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 4725289).

$2.49

$

In Stock, Qty 20+

0

17

Honda 16223-ZE1-800

SEE PART DETAILS - PRI; GASKET, INSULATOR (Honda Code 4537353).

$3.99

$

In Stock, only 1 left!

0

18

Honda 16582-883-300

HOLDER, CONTROL CABLE Use from Engine SN 2327377.

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16598-ZE1-710

STAY, CHOKE CONTROL

$

$

Not available

20

Honda 16610-ZE1-810

LEVER, CHOKE (REMOTE)

$11.99

$

Usually ships in 3-6 days

0

21

Honda 16617-890-010

SEE PART DETAILS - PRI; HOLDER, CABLE (Honda Code 0760462).

$8.99

$

In Stock, only 1 left!

0

22

Honda 16953-ZE1-711

SEE PART DETAILS - SUP; LEVER, VALVE (Honda Code 1950666).

Note: Use up to Engine SN BE07A D.

$8.99

$

Usually ships in 0 days

0

22

Honda 16953-ZE1-712

LEVER, VALVE (Honda Code 5266069).

Note: Use from Engine SN BE07A E.

$11.99

$

Usually ships in 3-6 days

0

23

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

Note: Use from Engine SN BEO7A E. Use up to Engine SN BE07A D.

$4.49

$

In Stock, only 1 left!

0

25

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

26

Honda 16957-ZE1-811

SEE PART DETAILS - SUP; GASKET, VALVE (Honda Code 1807817).
(Superseded to 16957-ZE1-812)

Note: Use up to Engine SN BE07A D.

$4.49

$

In Stock, Qty 20+

0

26

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

Note: Use from Engine SN BE07A E. Use up to Engine SN BE07A D.

$4.49

$

In Stock, Qty 20+

0

27

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$23.99

$

In Stock, only 3 left!

0

28

Honda 90002-892-000

BOLT, FLANGE (5X10) Use from Engine SN 2327377.

$1.99

$

In Stock, Qty 5

0

29

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$4.49

$

In Stock, only 2 left!

0

30

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN BE07A E.

$1.49

$

In Stock, only 3 left!

0

30

Honda 93500-03008-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X8) (Honda Code 0374694).

Note: Use up to Engine SN BE07A D.

$0.99

$

In Stock, Qty 8

0

31

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 7

0

32

Honda 94305-20122

PIN, SPRING (2X12) (Honda Code 1441591).

$2.49

$

In Stock, only 4 left!

0

33

Honda 99101-124-0650

JET, MAIN (#65) Use up to Engine SN BB30A D.

Note: (Optional)

$13.99

$

In Stock, only 2 left!

0

33

Honda 99101-124-0680

JET, MAIN (#68) Use up to Engine SN BB30A D.

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-0700

JET, MAIN (#70) Use up to Engine SN BB30A D.

$11.99

$

In Stock, only 1 left!

0

34

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$23.99

$

In Stock, only 2 left!
