HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) AUGER HOUSING Parts Diagram

22" Snow Blower, Made in Japan

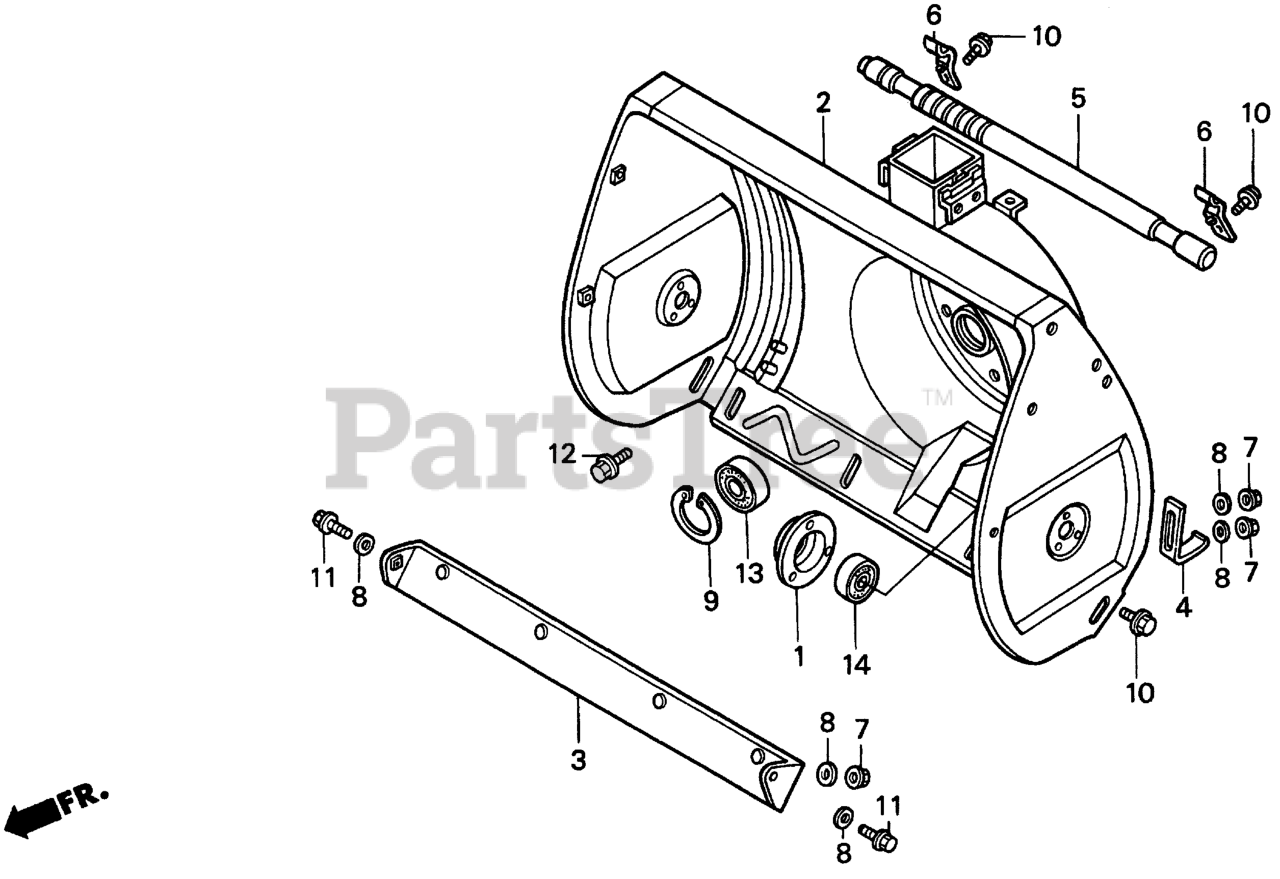

AUGER HOUSING Parts Diagram

  • Title

1

Honda 73256-732-000

HOLDER, AUGER BEARING

$22.99

$

In Stock, only 2 left!

0

2

Honda 76100-743-610

HOUSING, AUGER

Note: Use up to Frame SN 1008966.

$

$

Currently unavailable

2

Honda 76100-743-611

HOUSING, AUGER

Note: Use from Frame SN 1008967.

$

$

Not available

3

Honda 76151-743-610

GUARD, AUGER HOUSING (22INCH)

$87.99

$

Usually ships in 3-6 days

0

4

Honda 76153-743-610

SEE PART DETAILS - SUP; SKID, AUGER
(Superseded to 76153-743-611)

$34.99

$

In Stock, Qty 14

0

4

Honda 76153-743-611

SEE PART DETAILS - PRI; SKID, AUGER

$34.99

$

In Stock, Qty 14

0

7

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

$0.99

$

In Stock, Qty 20+

0

8

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

$1.49

$

In Stock, Qty 20+

0

9

Honda 94520-47000

CIRCLIP (INNER) (47MM)

$2.99

$

In Stock, only 2 left!

0

10

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

11

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

12

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) Use up to Engine SN 1609606.

$2.49

$

In Stock, only 1 left!

0

13

Honda 96150-60050-10

BEARING, RADIAL BALL (6005UU)

$25.99

$

Usually ships in 3-6 days

0

14

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, Qty 5

0
