HS522 TA (SAA) - Honda 22" Snow Blower, Made in Japan (SN: SAA-1000001 - SAA-9999999) AUGER@AUGER TRANSMISSION CASE Parts Diagram

22" Snow Blower, Made in Japan

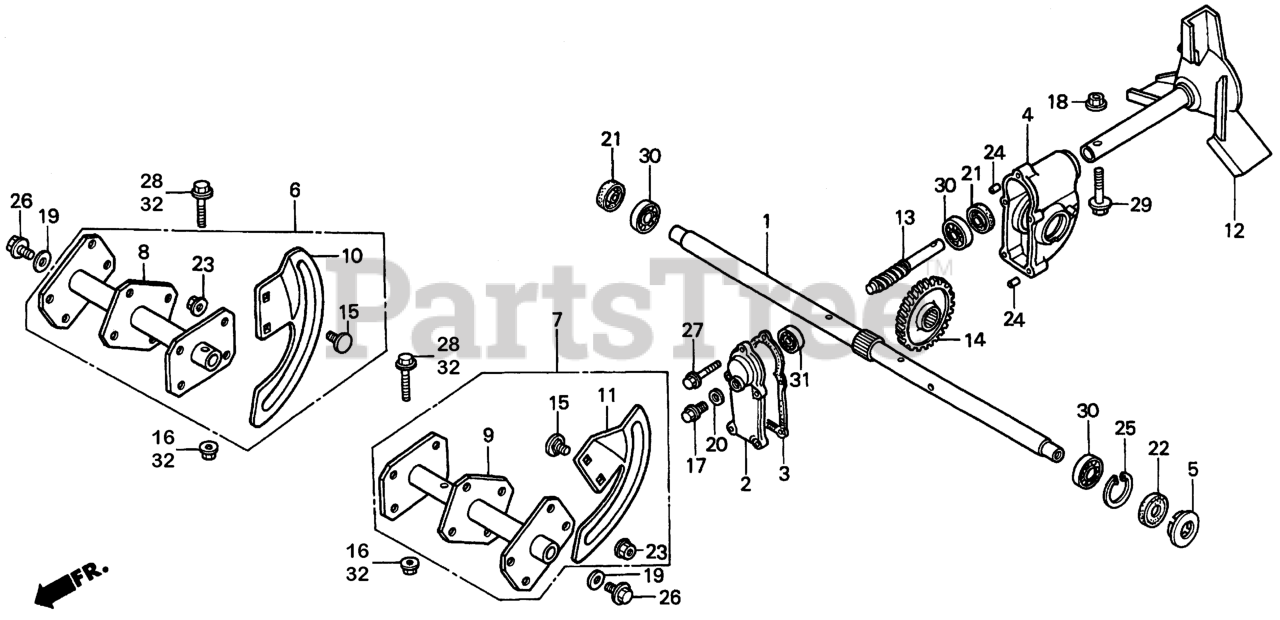

AUGER@AUGER TRANSMISSION CASE Parts Diagram

  • Title

1

Honda 23377-743-000

SHAFT, AUGER

$305.99

$

Usually ships in 3-6 days

0

2

Honda 71211-743-000

COVER, AUGER TRANSMISSION

$105.99

$

In Stock, only 1 left!

0

3

Honda 71212-743-640

GASKET, AUGER TRANSMISSION

$6.49

$

Usually ships in 3-6 days

0

4

Honda 71221-743-020

SEE PART DETAILS - PRI; CASE, AUGER TRANSMISSION

$132.99

$

Usually ships in 3-6 days

0

5

Honda 71222-743-000

CAP, AUGER CASE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 72401-743-000

AUGER ASSY., R. (22")

$314.99

$

Usually ships in 3-6 days

0

7

Honda 72402-743-000

AUGER ASSY., L. (22")

$314.99

$

Usually ships in 3-6 days

0

8

Honda 72403-743-000

FLANGE, R. AUGER (22")

$120.99

$

Usually ships in 3-6 days

0

9

Honda 72404-743-000

FLANGE, L. AUGER (22")

$120.99

$

Usually ships in 3-6 days

0

10

Honda 72405-743-000

STEEL, R. AUGER

$41.99

$

Usually ships in 3-6 days

0

11

Honda 72406-743-000

STEEL, L. AUGER

$41.99

$

Usually ships in 3-6 days

0

12

Honda 72411-743-010

BLOWER

$209.99

$

Usually ships in 3-6 days

0

13

Honda 73251-743-000

GEAR, DRIVE (5T)

$98.99

$

Usually ships in 3-6 days

0

14

Honda 73551-743-000

GEAR, DRIVEN (55T)

$109.99

$

Usually ships in 3-6 days

0

15

Honda 90101-963-000

BOLT, SPECIAL (9X15)

$4.49

$

In Stock, only 2 left!

0

16

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM) (Honda Code 1410182).

$4.49

$

In Stock, Qty 20+

0

17

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

18

Honda 90309-428-731

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$4.99

$

In Stock, Qty 14

0

19

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

$9.49

$

In Stock, only 1 left!

0

20

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM) (Honda Code 1436583).

$1.49

$

In Stock, Qty 20+

0

21

Honda 91201-732-003

OIL SEAL (20X32X7)

$11.99

$

In Stock, only 1 left!

0

22

Honda 91201-743-000

OIL SEAL (20X42X8)

$10.99

$

In Stock, only 1 left!

0

23

Honda 94070-08080

NUT-WASHER (8MM)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

25

Honda 94520-42000

CIRCLIP (INNER) (42MM)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

$2.49

$

In Stock, Qty 7

0

27

Honda 95801-06032-00

BOLT, FLANGE (6X32)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 95801-06035-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X35)

$1.49

$

In Stock, Qty 10

0

29

Honda 95801-08035-00

BOLT, FLANGE (8X35)

$1.99

$

In Stock, only 1 left!

0

30

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 1 left!

0

31

Honda 96100-62020-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6202) (Honda Code 0708941).

$12.99

$

In Stock, only 1 left!

0
