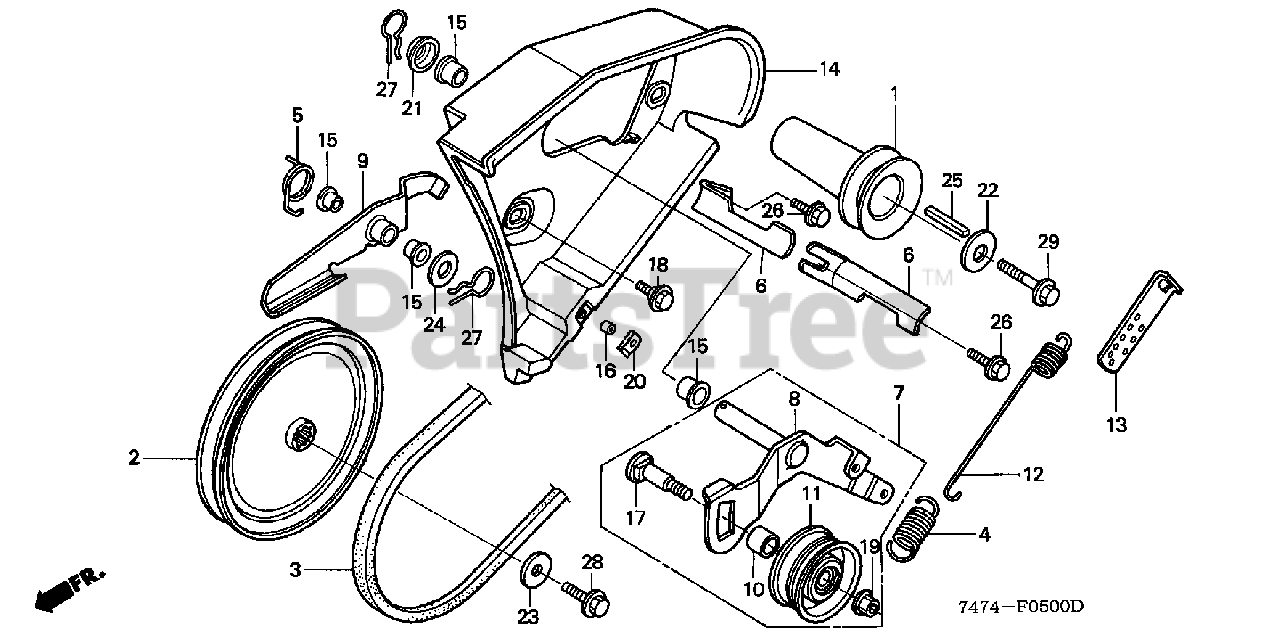

HS521 A (SAG) - Honda 21" Snow Blower, Made in Japan (SN: SAG-1000001 - SAG-1099999) DRIVE PULLEY Parts Diagram

21" Snow Blower, Made in Japan

DRIVE PULLEY Parts Diagram

  • Title

1

Honda 22411-747-000

PULLEY, DRIVE

$99.99

$

Usually ships in 3-6 days

0

2

Honda 22415-747-010

PULLEY, DRIVEN

$86.99

$

Usually ships in 3-6 days

0

3

Honda 22431-747-003

V-BELT (LA-38)

$39.99

$

In Stock, only 3 left!

0

4

Honda 22437-747-000

SPRING, TENSION ARM RETURN

$9.49

$

Usually ships in 3-6 days

0

5

Honda 22439-747-000

SPRING, BRAKE ARM

$4.49

$

Usually ships in 3-6 days

0

6

Honda 22441-747-000

STOPPER, BELT

$9.99

$

Usually ships in 3-6 days

0

7

Honda 22510-747-000

ARM ASSY., AUGER TENSION

$

$

Not available

8

Honda 22511-747-000

ARM, AUGER TENSION

$

$

Not available

9

Honda 22512-747-000

ARM, AUGER BRAKE

$39.99

$

Usually ships in 3-6 days

0

10

Honda 22514-747-000

COLLAR, ROLLER

$5.49

$

Usually ships in 3-6 days

0

11

Honda 22530-736-A00

ROLLER

$43.99

$

In Stock, only 1 left!

0

12

Honda 22531-747-000

SPRING, BELT TENSION

$6.49

$

Usually ships in 3-6 days

0

13

Honda 54456-747-000

PLATE A, ADJUSTING

$9.99

$

Usually ships in 3-6 days

0

14

Honda 63576-747-000

COVER (INNER)

Note: Use up to Frame SN 1002143.

$

$

Currently unavailable

14

Honda 63576-747-010

COVER (INNER)

Note: Use from Frame SN 1002144.

$36.99

$

Usually ships in 3-6 days

0

15

Honda 72613-952-000

BUSH, BLADE HOLDER

$5.99

$

Usually ships in 3-6 days

0

16

Honda 76329-743-000

COLLAR, CHUTE GUIDE

Note: Use from Frame SN 1002144.

$2.99

$

Usually ships in 3-6 days

0

17

Honda 90103-747-000

BOLT, TENSION ROLLER

$7.49

$

Usually ships in 3-6 days

0

18

Honda 90113-GE4-000

BOLT, FLANGE (6MM) (BLACK)

$7.49

$

In Stock, Qty 5

0

19

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

20

Honda 90320-MM5-000

NUT, SPRING (6MM)

Note: Use up to Frame SN 1002143.

$3.99

$

Usually ships in 3-6 days

0

20

Honda 90320-747-000

NUT, SPRING (6MM)

Note: Use from Frame SN 1002144.

$3.49

$

In Stock, only 2 left!

0

21

Honda 90407-747-000

WASHER, SPECIAL (13MM)

$

$

Not available

22

Honda 90471-ZE1-610

WASHER (8MM)

$5.49

$

Usually ships in 3-6 days

0

23

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

24

Honda 90505-961-000

WASHER, TANK SETTING

$2.49

$

Usually ships in 3-6 days

0

25

Honda 90746-835-000

KEY (5X5X33)

$9.99

$

In Stock, only 1 left!

0

26

Honda 93404-08016-00

BOLT-WASHER (8X16)

$1.99

$

In Stock, only 1 left!

0

27

Honda 94252-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, only 4 left!

0

28

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 3 left!

0

29

Honda 95701-08025-00

BOLT, FLANGE (8X25)

$2.49

$

In Stock, Qty 5

0
