HS520 K1 ASA (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6100001 - SZBG-9999999) FUEL TANK Parts Diagram

20" Snow Blower, Made in USA

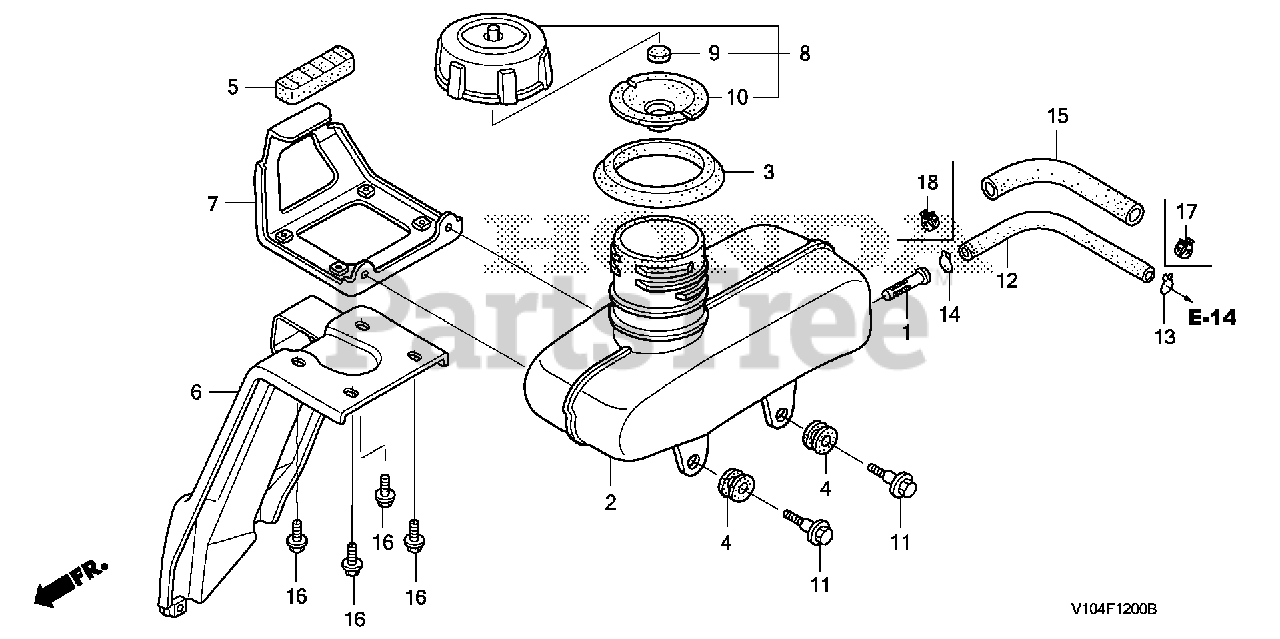

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL

$9.49

$

In Stock, only 2 left!

0

2

Honda 17511-V10-000

TANK, FUEL

Note: Use up to Frame SN 6507311.

$23.70

$

In Stock, only 1 left!

0

2

Honda 17511-V10-010

TANK, FUEL

Note: Use from Frame SN 6507312.

$

$

Not available

3

Honda 17514-758-000

SEAL, FUEL FILLER NECK

$5.99

$

In Stock, only 3 left!

0

4

Honda 17532-ZM7-000

RUBBER A, TANK MOUNTING

$2.49

$

In Stock, only 3 left!

0

5

Honda 17533-ZM7-000

RUBBER B, TANK MOUNTING

$5.49

$

In Stock, only 2 left!

0

6

Honda 17544-V10-000

BRACKET A, FUEL TANK

$32.99

$

Usually ships in 3-6 days

0

7

Honda 17545-V10-000

BRACKET B, FUEL TANK

$12.99

$

Usually ships in 3-6 days

0

8

Honda 17620-747-030

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK

$13.99

$

In Stock, only 2 left!

0

9

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

10

Honda 17624-747-020

SEE PART DETAILS - PRI; GASKET, FUEL CAP
(Superseded to 17624-747-030)

$7.49

$

Usually ships in 3-6 days

0

11

Honda 90103-V10-000

BOLT, SPECIAL (6MM)

$1.49

$

Usually ships in 3-6 days

0

12

Honda 17701-ZL8-000

TUBE, FUEL TANK

Note: Use up to Frame SN 6611280.

$11.99

$

In Stock, only 1 left!

0

12

Honda 17701-Z8A-003

TUBE, FUEL TANK (FKM) (NA USE ALT:17701-ZL8-000)

Note: Use from Frame SN 6611281.

$

$

Currently unavailable

13

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Frame SN 6611280.

$2.49

$

In Stock, Qty 20+

0

14

Honda 95002-70000

CLIP, TUBE (C11)

Note: Use up to Frame SN 6611280.

$2.49

$

In Stock, Qty 5

0

15

Honda 95003-43008-10M

BULK HOSE, VINYL (13X15X8000) (13X15X90)

$78.99

$

Usually ships in 3-6 days

0

16

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

17

Honda 95002-41000-08

CLAMP, TUBE (D10)

Note: Use from Frame SN 6611281.

$3.49

$

In Stock, only 2 left!

0

18

Honda 95002-41200-08

CLAMP, TUBE (D12)

Note: Use from Frame SN 6611281.

$3.49

$

Usually ships in 3-6 days

0
