HS520 K1 ASA (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6100001 - SZBG-9999999) DRIVE PULLEY Parts Diagram

20" Snow Blower, Made in USA

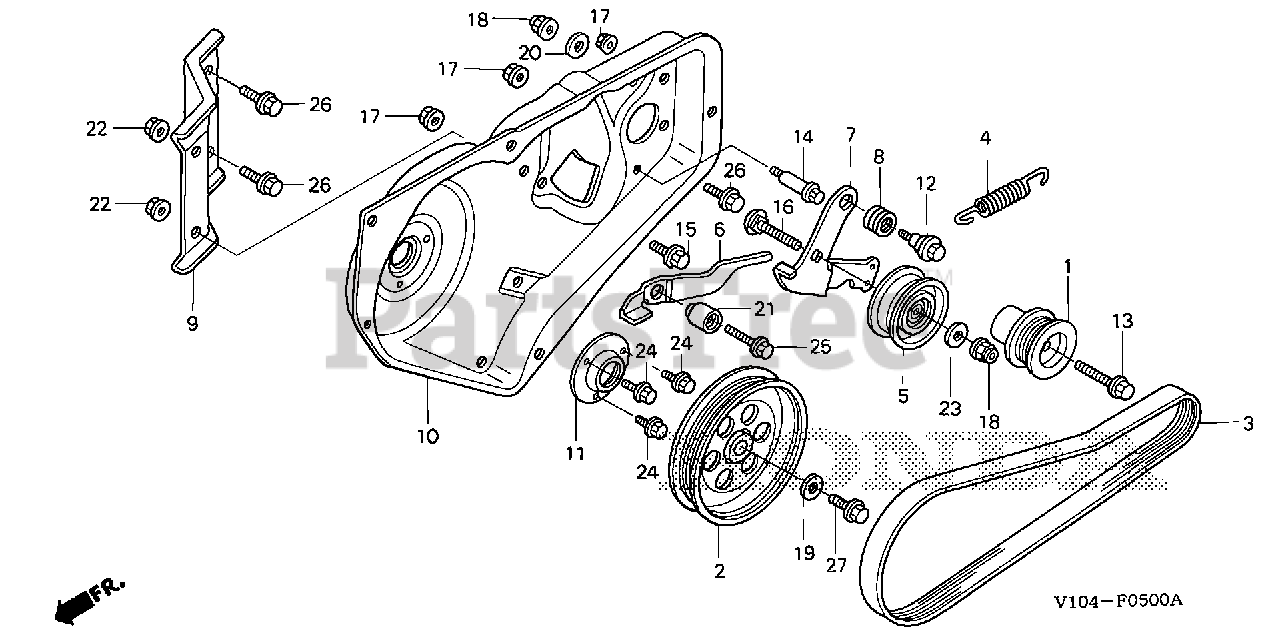

DRIVE PULLEY Parts Diagram

  • Title
1

Honda 22411-V10-000

PULLEY, DRIVE

$220.99

$

Usually ships in 3-6 days

0

2

Honda 22420-V10-000

PULLEY, DRIVEN

$84.99

$

Usually ships in 3-6 days

0

3

Honda 22431-V10-013

V-BELT, RIBBED

$27.99

$

In Stock, Qty 7

0

4

Honda 22437-V10-R10

SPRING, TENSIONER ARM

$4.99

$

Usually ships in 3-6 days

0

5

Honda 22465-V10-003

ROLLER, TENSIONER

$20.99

$

In Stock, only 1 left!

0

6

Honda 22512-V10-000

ARM, AUGER BRAKE

$4.49

$

Usually ships in 3-6 days

0

7

Honda 22521-V10-000

ARM, TENSION

$6.99

$

Usually ships in 3-6 days

0

8

Honda 22527-V10-000

SPRING, TENSIONER ARM BOLT

$11.99

$

Usually ships in 3-6 days

0

9

Honda 50658-V10-000

BRACKET, BELT COVER STAY

$4.49

$

Usually ships in 3-6 days

0

10

Honda 63621-V10-R10

COVER, BELT (INNER)

$47.99

$

Usually ships in 3-6 days

0

11

Honda 72426-V10-000

HOLDER, L. AUGER (BEARING)

$5.99

$

Usually ships in 3-6 days

0

12

Honda 90102-V10-000

BOLT, TENSIONER ARM

$21.99

$

In Stock, only 4 left!

0

13

Honda 90104-VG3-000

BOLT, FLANGE (5/16-24X1")

$0.99

$

In Stock, Qty 8

0

14

Honda 90104-V10-000

BOLT, BELT GUIDE

$0.99

$

Usually ships in 3-6 days

0

15

Honda 90108-V10-000

BOLT, SIDE COVER

$7.99

$

In Stock, Qty 9

0

16

Honda 90133-VE0-000

BOLT, PAN (8X35)

$0.99

$

In Stock, Qty 8

0

17

Honda 90302-V10-000

NUT, SELF-LOCK (6MM)

$0.99

$

In Stock, Qty 5

0

18

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.99

$

In Stock, Qty 6

0

19

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90504-MA6-000

WASHER (8.5X26)

$2.49

$

Usually ships in 3-6 days

0

21

Honda 91551-V10-000

COLLAR, BRAKE ARM

$2.49

$

Usually ships in 3-6 days

0

22

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

23

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

24

Honda 95701-06010-08

BOLT, FLANGE (6X10)

$2.49

$

In Stock, Qty 20+

0

25

Honda 95701-06028-08

BOLT, FLANGE (6X28)

$2.99

$

Usually ships in 3-6 days

0

26

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

27

Honda 95701-08020-08

BOLT, FLANGE (8X20)

$2.49

$

Usually ships in 3-6 days

0
