HS520 AS (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6000001 - SZBG-6099999) RECOIL STARTER (HS520-AS, ASA) Parts Diagram

20" Snow Blower, Made in USA

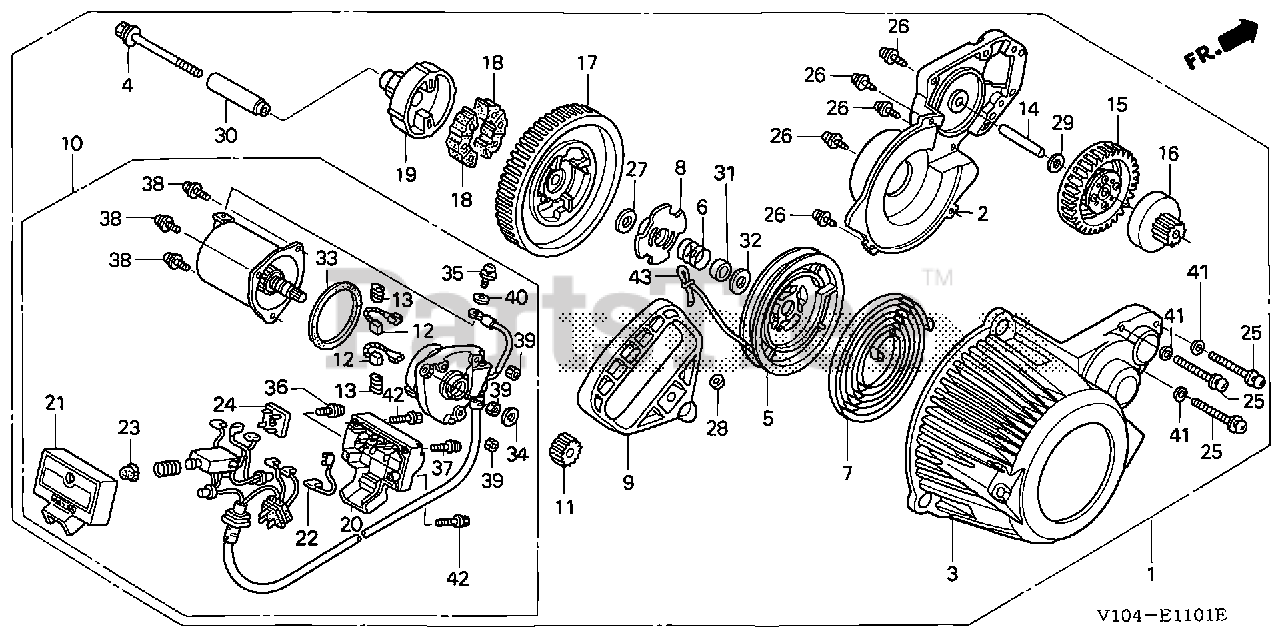

RECOIL STARTER (HS520-AS, ASA) Parts Diagram

  • Title

1

Honda 28400-ZL8-H21

STARTER ASSY., RECOIL

$564.99

$

Usually ships in 3-6 days

0

2

Honda 28411-ZL8-H21

COVER, GEAR

$21.99

$

Usually ships in 3-6 days

0

3

Honda 28414-ZL8-H21

CASE SET, STARTER

$

$

Not available

4

Honda 28416-ZS9-A01

BOLT, CENTER (8MM)

$3.99

$

In Stock, only 1 left!

0

5

Honda 28421-ZS9-A01

REEL, RECOIL STARTER

$23.99

$

Usually ships in 3-6 days

0

6

Honda 28441-ZS9-A01

SPRING, FRICTION

$1.99

$

In Stock, only 2 left!

0

7

Honda 28442-ZS9-A01

SPRING, RECOIL STARTER

$12.99

$

Usually ships in 3-6 days

0

8

Honda 28443-ZS9-A01

GUIDE, RATCHET

$4.49

$

Usually ships in 3-6 days

0

9

Honda 28461-ZE2-H22

SEE PART DETAILS - PRI; GRIP, STARTER

$12.99

$

In Stock, only 2 left!

0

10

Honda 31210-ZL8-H21

STARTER MOTOR UNIT (NOT AVAILABLE)

$

$

Not available

11

Honda 31214-ZL8-H21

GEAR (A)

$14.99

$

Usually ships in 3-6 days

0

12

Honda 31215-ZE1-821

BRUSH Use from Engine SN 2056820.

$12.99

$

Usually ships in 3-6 days

0

13

Honda 31219-ZE1-821

SPRING, BRUSH RETURN Use from Engine SN 2056820.

$4.49

$

Usually ships in 3-6 days

0

14

Honda 31265-ZL8-H21

SHAFT, GEAR

$4.99

$

Usually ships in 3-6 days

0

15

Honda 31267-ZL8-H21

GEAR (B)

$

$

Not available

16

Honda 31268-ZL8-H21

GEAR (C)

$20.99

$

Usually ships in 3-6 days

0

17

Honda 31269-ZL8-H22

GEAR (F)

$51.99

$

In Stock, only 1 left!

0

18

Honda 31271-ZL8-H21

DAMPER

$15.99

$

Usually ships in 3-6 days

0

19

Honda 31272-ZL8-H22

CAM, DRIVE

$11.99

$

In Stock, only 1 left!

0

20

Honda 31601-ZE1-821

COVER Use from Engine SN 2056820.

$21.99

$

Usually ships in 3-6 days

0

21

Honda 31602-ZE1-822

CASE

$16.99

$

Usually ships in 3-6 days

0

22

Honda 31606-ZE1-781

SUB-WIRE Use up to Engine SN 2056819.

$14.99

$

Usually ships in 3-6 days

0

23

Honda 31612-ZE1-781

CAP Use up to Engine SN 2056819.

$9.49

$

Usually ships in 3-6 days

0

24

Honda 31614-ZE1-781

DIODE Use up to Engine SN 2056819.

$97.99

$

Usually ships in 3-6 days

0

25

Honda 90101-ZL8-H21

SCREW-WASHER (5X30)

$1.99

$

In Stock, Qty 6

0

26

Honda 90104-ZS9-A01

SCREW-WASHER (4X16)

$2.99

$

Usually ships in 3-6 days

0

27

Honda 90501-ZS9-A01

WASHER C (11MM)

$1.49

$

In Stock, Qty 5

0

28

Honda 91401-ZL8-H01

WASHER

$1.99

$

Usually ships in 3-6 days

0

29

Honda 91551-ZL8-H21

WASHER (8MM)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 91551-ZS9-A01

COLLAR (1.8X51.4)

$7.49

$

Usually ships in 3-6 days

0

31

Honda 91552-ZS9-A01

COLLAR (2.15X9.4)

$4.99

$

Usually ships in 3-6 days

0

32

Honda 91553-ZS9-A01

WASHER B (16MM)

$2.49

$

Usually ships in 3-6 days

0

33

Honda 91601-ZE1-821

GASKET Use from Engine SN 2056820.

$7.99

$

Usually ships in 3-6 days

0

34

Honda 91602-ZE1-781

OIL SEAL Use up to Engine SN 2056819.

$5.49

$

In Stock, only 1 left!

0

35

Honda 93500-05010-3C

SCREW, PAN (5X10)

$2.99

$

Usually ships in 3-6 days

0

36

Honda 93893-04020-08

SEE PART DETAILS - PRI; SCREW-WASHER (4X20) (Honda Code 1191089).

$1.49

$

Usually ships in 3-6 days

0

37

Honda 93893-04030-18

SEE PART DETAILS - PRI; SCREW-WASHER (4X30) (Honda Code 2299683).

$1.49

$

Usually ships in 3-6 days

0

38

Honda 93893-05014-08

SCREW-WASHER (5X14)

$1.99

$

Usually ships in 3-6 days

0

39

Honda 94002-05080-0S

NUT, HEX. (5MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94111-05000

SEE PART DETAILS - PRI; WASHER, SPRING (5MM) (Honda Code 0058966).

$1.49

$

Usually ships in 3-6 days

0

41

Honda 90405-ZL8-H21

WASHER E (5MM)

$

$

Not available

42

Honda 95701-06040-17

BOLT, FLANGE (6X40)

$1.49

$

Usually ships in 3-6 days

0

43

Honda 28462-ZL8-H01

ROPE, RECOIL STARTER

$3.49

$

Usually ships in 3-6 days

0
