HS520 AA (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6000001 - SZBG-9999999) HANDLEBAR Parts Diagram

20" Snow Blower, Made in USA

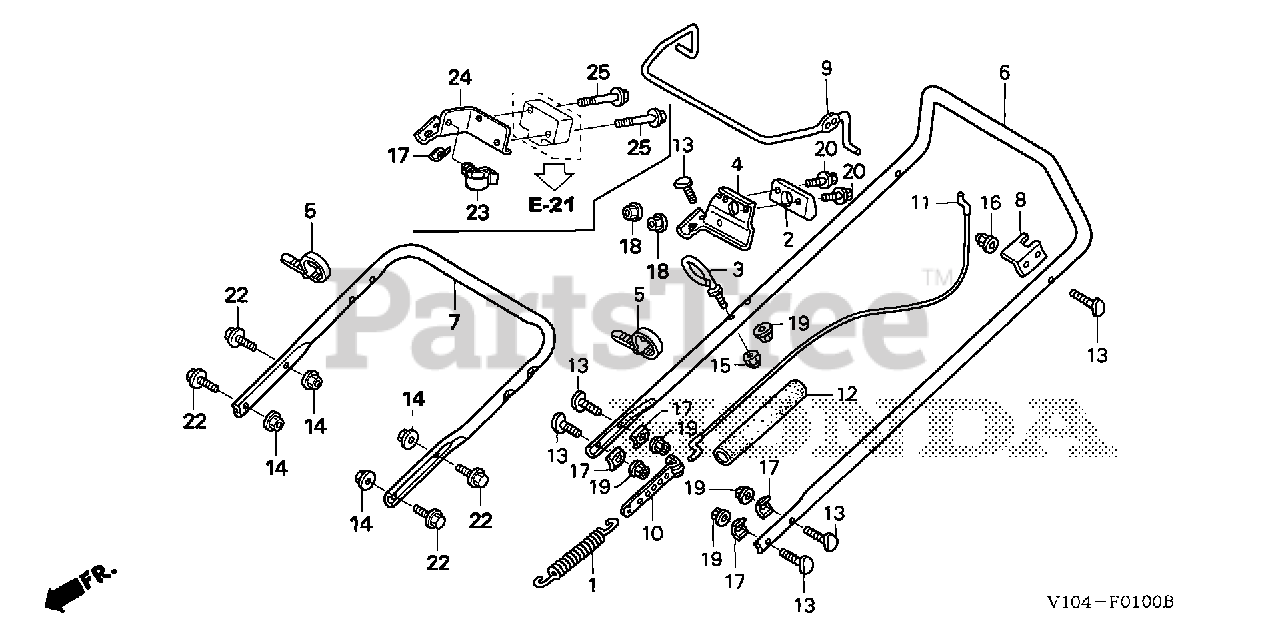

HANDLEBAR Parts Diagram

  • Title

1

Honda 22531-V10-000

SPRING, BELT TENSIONER

$2.49

$

In Stock, only 1 left!

0

3

Honda 28475-V10-000

GUIDE, ROPE

$2.99

$

Usually ships in 3-6 days

0

4

Honda 31617-V10-000

BRACKET, SWITCH BOX

$10.99

$

Usually ships in 3-6 days

0

5

Honda 32901-VB5-A00

TIE, CABLE (157.5MM)

$0.99

$

In Stock, Qty 10

0

6

Honda 53111-V10-810

PIPE, HANDLE (UPPER)

$42.99

$

Usually ships in 3-6 days

0

7

Honda 53151-V10-000

PIPE, HANDLE (LOWER)

$29.99

$

Usually ships in 3-6 days

0

8

Honda 54315-V10-000

STOPPER, LEVER

$1.49

$

In Stock, only 2 left!

0

9

Honda 54415-V10-000

LEVER, CLUTCH

$52.99

$

In Stock, only 1 left!

0

10

Honda 54456-V10-000

PLATE, ADJUSTING

$4.49

$

In Stock, only 1 left!

0

11

Honda 54510-V10-000

CABLE, CLUTCH

$3.49

$

In Stock, only 2 left!

0

12

Honda 54511-V10-000

BOOT, CLUTCH CABLE

$1.49

$

In Stock, Qty 8

0

13

Honda 90109-VA4-000

BOLT, HANDLE HOLDER (8X41)
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 19

0

14

Honda 90118-961-000

NUT, SELF-LOCK (8MM)

$7.49

$

Usually ships in 3-6 days

0

15

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 90309-428-731

NUT, FLANGE (M8X1.25) (SELF-LOCK)

$4.99

$

In Stock, Qty 20+

0

17

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 12

0

19

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0
