HS520 AA (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6000001 - SZBG-9999999) CHUTER Parts Diagram

20" Snow Blower, Made in USA

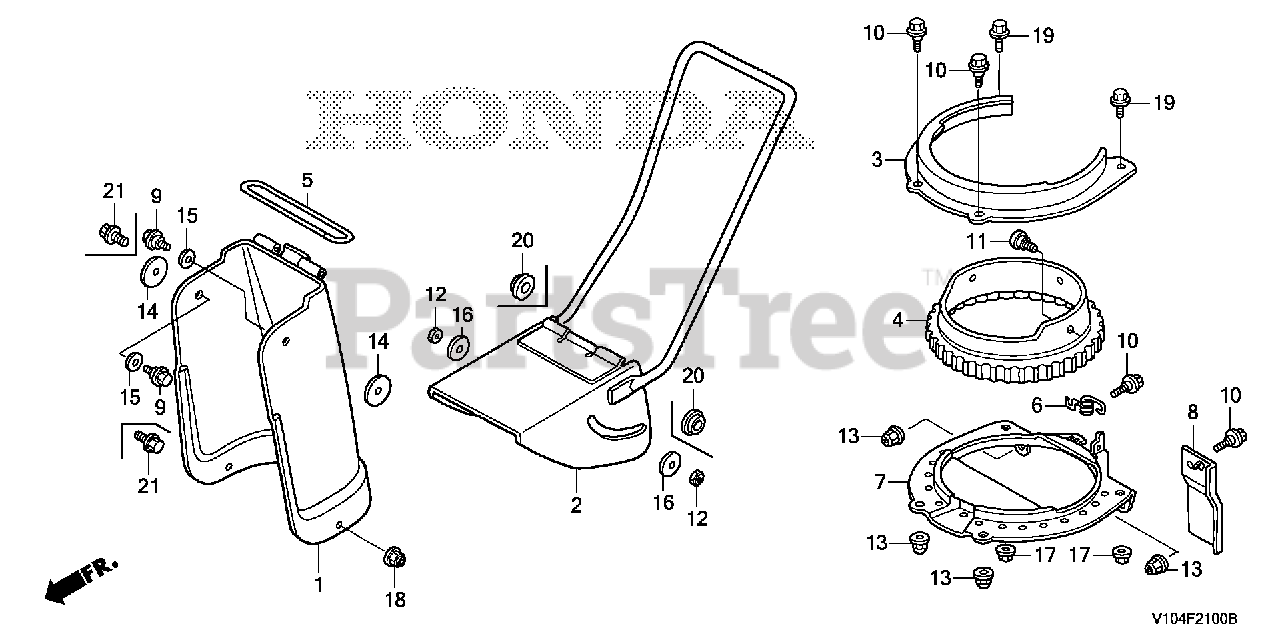

CHUTER Parts Diagram

  • Title

1

Honda 76310-V10-000

CHUTE

$48.99

$

Usually ships in 3-6 days

0

2

Honda 76320-V10-000

GUIDE, CHUTE

$45.99

$

Usually ships in 3-6 days

0

3

Honda 76321-V10-000

PLATE, CHUTE SETTING

$12.99

$

In Stock, only 1 left!

0

4

Honda 76325-V10-000

BUSH, CHUTE

$98.99

$

In Stock, only 2 left!

0

5

Honda 76326-738-E00

PIN, CHUTE GUIDE

$8.49

$

In Stock, only 3 left!

0

6

Honda 76328-V10-000

SPRING, CHUTE

$3.49

$

In Stock, only 3 left!

0

7

Honda 76342-V10-000

RECEIVER, CHUTE

$46.99

$

In Stock, only 1 left!

0

8

Honda 76718-V10-000

PLATE, HEAT GUARD

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90105-V10-000

BOLT, CHUTE GUIDE

$7.49

$

In Stock, only 2 left!

0

10

Honda 90109-V10-000

BOLT, CHUTE SETTING

$15.99

$

In Stock, Qty 10

0

11

Honda 90112-V10-000

BOLT, CHUTE SETTING

$0.99

$

In Stock, Qty 20+

0

12

Honda 90303-VG3-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

14

Honda 90451-GK4-760

WASHER (10.2X32X1.6)

$3.49

$

In Stock, only 2 left!

0

15

Honda 90455-VA2-000

WASHER, WHEEL

$4.49

$

In Stock, Qty 20+

0

16

Honda 90503-898-000

WASHER, TANK CUSHION

$3.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

18

Honda 90303-V10-000

NUT, NYLON LOCK (6MM)

$0.99

$

In Stock, Qty 14

0

19

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0
