HS520 A (SZBG) - Honda 20" Snow Blower, Made in USA (SN: SZBG-6000001 - SZBG-6099999) CRANKCASE COVER Parts Diagram

20" Snow Blower, Made in USA

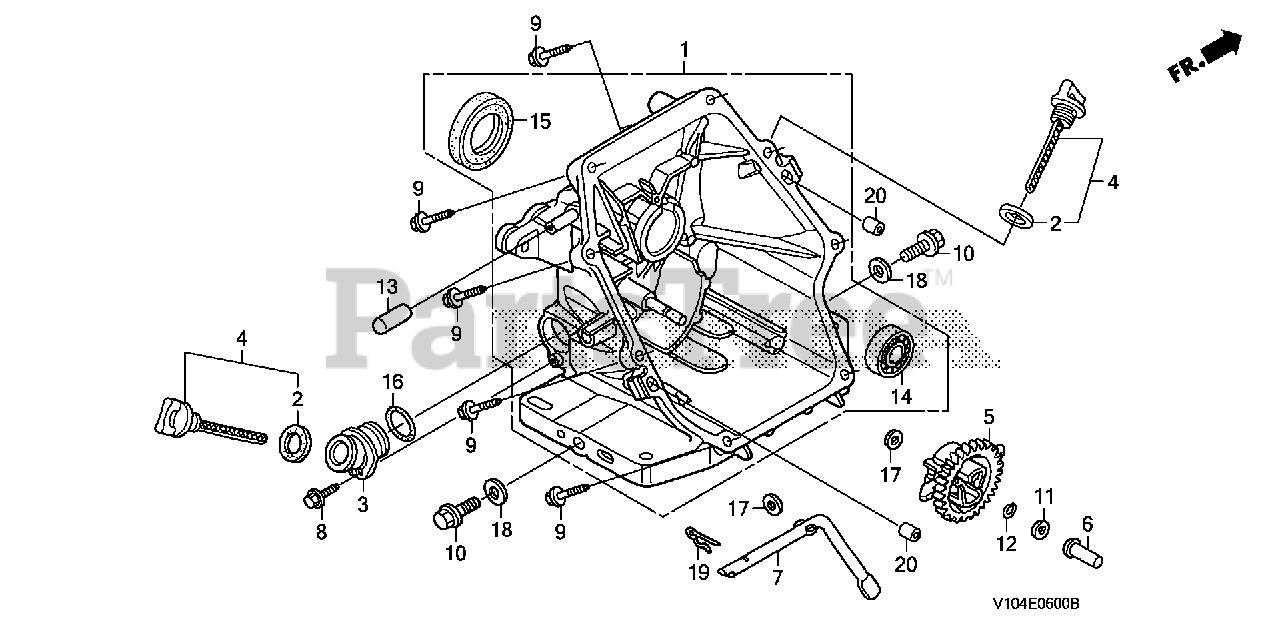

CRANKCASE COVER Parts Diagram

  • Title

1

Honda 11300-ZL8-H00

COVER ASSY., CRANKCASE

$121.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE1-003

SEE PART DETAILS - PRI; GASKET, OIL FILLER CAP (Honda Code 4497947).

$3.99

$

In Stock, only 3 left!

0

3

Honda 15631-ZL8-000

EXTENSION, OIL FILLER

$5.99

$

Usually ships in 3-6 days

0

4

Honda 15650-ZL8-003

SEE PART DETAILS - SUP; GAUGE ASSY., OIL LEVEL
(Superseded to 15650-ZL8-013)

Note: Use up to Engine SN 1805025.

$5.99

$

Usually ships in 3-6 days

0

4

Honda 15650-ZL8-013

SEE PART DETAILS - PRI; GAUGE ASSY., OIL LEVEL

Note: Use from Engine SN 1805026.

$5.99

$

Usually ships in 3-6 days

0

5

Honda 16510-ZL8-000

GOVERNOR ASSY.

$13.99

$

In Stock, only 1 left!

0

6

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.99

$

In Stock, Qty 6

0

7

Honda 16541-ZL8-000

SHAFT, GOVERNOR ARM
(Superseded to 16541-Z8A-000)

$1.49

$

In Stock, Qty 5

0

8

Honda 90013-ZL8-000

BOLT, FLANGE (6X14) (CT200)

$1.99

$

In Stock, Qty 5

0

9

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$3.49

$

In Stock, Qty 20+

0

10

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$5.49

$

In Stock, Qty 7

0

11

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM) (Honda Code 2413862).

$2.49

$

In Stock, Qty 5

0

12

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER (Honda Code 2456697).

$1.99

$

Usually ships in 3-6 days

0

13

Honda 90634-ZL8-H00

CAP, SEALING

$6.49

$

Usually ships in 3-6 days

0

14

Honda 91001-ZL8-003

BEARING, RADIAL BALL (62/28)

$30.99

$

Usually ships in 3-6 days

0

15

Honda 91202-ZL8-003

OIL SEAL (28X41.25X6) (Honda Code 5581046).

$7.99

$

In Stock, Qty 13

0

16

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2) Use from Engine SN 1257295.

$2.49

$

In Stock, Qty 10

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 20+

0

18

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.99

$

In Stock, Qty 20+

0

19

Honda 94251-08000

SEE PART DETAILS - PRI; PIN, LOCK (8MM) (Honda Code 0115527).

$1.99

$

In Stock, Qty 6

0

20

Honda 94301-08200

SEE PART DETAILS - PRI; PIN, DOWEL (8X20)

$3.49

$

Usually ships in 3-6 days

0
