HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) PISTON + CRANKSHAFT Parts Diagram

Snow Blower, Made in Japan

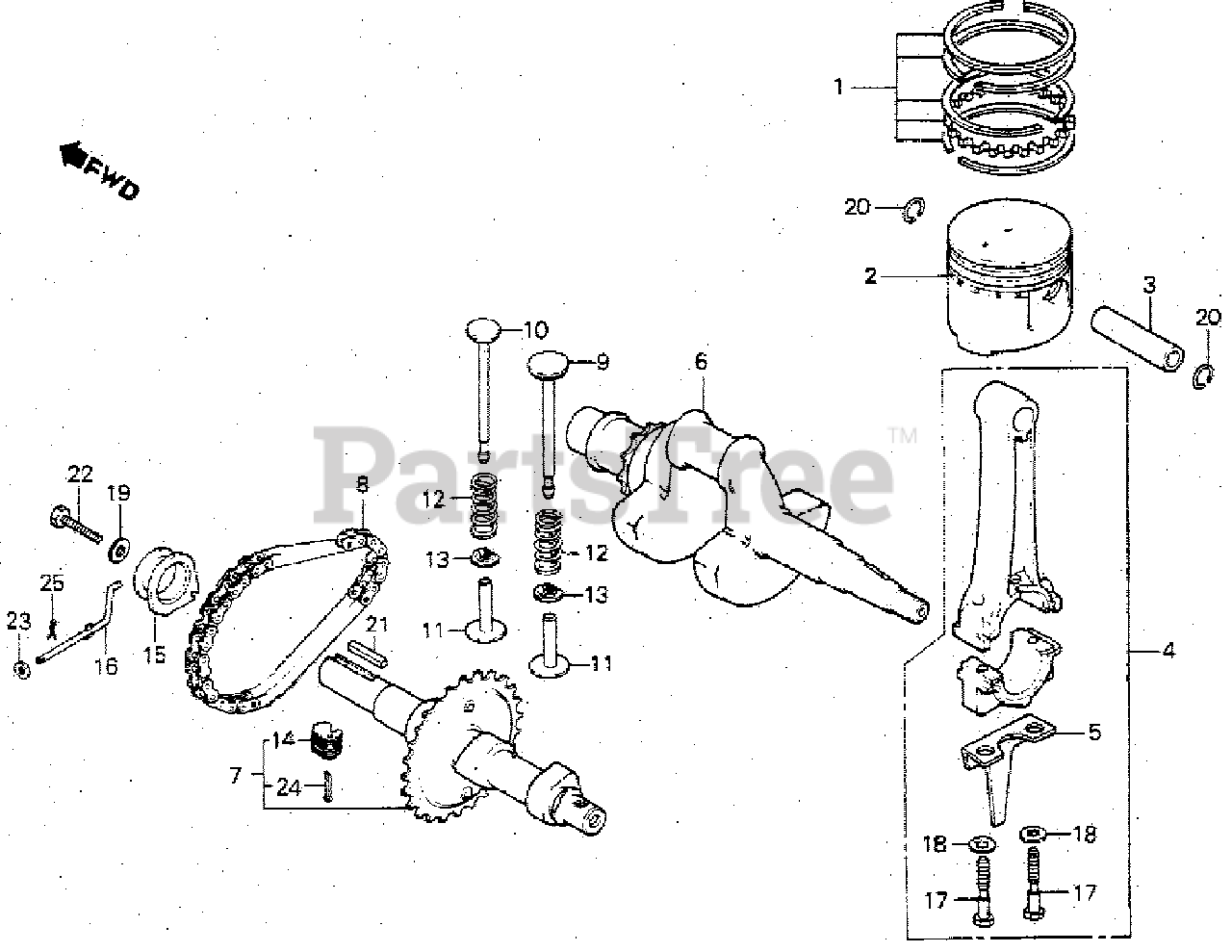

PISTON + CRANKSHAFT Parts Diagram

  • Title

1

Honda 13010-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (STD)

$42.99

$

Usually ships in 3-6 days

0

1

Honda 13010-883-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$

$

Currently unavailable

1

Honda 13010-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$42.99

$

Usually ships in 3-6 days

0

1

Honda 13010-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (STD)

$

$

Not available

1

Honda 13011-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.25)

$

$

Not available

1

Honda 13011-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.25)
(Superseded to 13011-YA0-004)

$

$

Not available

1

Honda 13012-YA0-004

SEE PART DETAILS - PRI; RING SET, PISTON (OS 0.50)

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13012-894-003

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)

$

$

Currently unavailable

1

Honda 13012-894-004

SEE PART DETAILS - SUP; RING SET, PISTON (OS 0.50)
(Superseded to 13012-YA0-004)

$46.99

$

Usually ships in 3-6 days

0

1

Honda 13013-YA0-004

RING SET, PISTON (0.75)

$46.99

$

Usually ships in 3-6 days

0

2

Honda 13101-883-003

SEE PART DETAILS - PRI; PISTON (STD)

$76.99

$

Usually ships in 3-6 days

0

2

Honda 13102-883-003

PISTON (OS 0.25)

$

$

Not available

2

Honda 13103-883-003

PISTON (OS 0.50)

$

$

Not available

2

Honda 13104-883-003

PISTON (0.75)

$53.99

$

Usually ships in 3-6 days

0

3

Honda 13111-883-000

PIN, PISTON

$11.99

$

In Stock, only 1 left!

0

4

Honda 13200-883-060

SEE PART DETAILS - PRI; ROD ASSY., CONNECTING

$

$

Not available

4

Honda 13200-883-345

SEE PART DETAILS - SUP; ROD ASSY., CONNECTING

$

$

Currently unavailable

5

Honda 13281-883-030

DIPPER, CONNECTING ROD

$12.99

$

Usually ships in 3-6 days

0

6

Honda 13311-883-610

CRANKSHAFT (L-TYPE)

$

$

Currently unavailable

7

Honda 14110-883-612

CAMSHAFT ASSY.

$

$

Not available

8

Honda 14411-883-612

SEE PART DETAILS - SUP; CHAIN, CAM

$

$

Currently unavailable

9

Honda 14711-883-000

VALVE, IN.

$33.99

$

Usually ships in 3-6 days

0

10

Honda 14721-883-000

VALVE, EX.

$37.99

$

Usually ships in 3-6 days

0

11

Honda 14736-883-010

LIFTER, VALVE (39.6MM)

$19.99

$

Usually ships in 3-6 days

0

11

Honda 14746-883-010

LIFTER, VALVE (39.9MM)

$19.99

$

Usually ships in 3-6 days

0

12

Honda 14751-883-000

SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

13

Honda 14771-883-305

RETAINER, VALVE SPRING

$13.99

$

Usually ships in 3-6 days

0

14

Honda 16511-883-300

WEIGHT, GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

15

Honda 16531-883-010

SLIDER, GOVERNOR

$

$

Not available

16

Honda 16541-883-000

SHAFT, GOVERNOR ARM

$

$

Not available

17

Honda 90001-883-020

SEE PART DETAILS - PRI; BOLT, CONNECTING ROD (7MM)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90432-889-003

WASHER, LOCK (7MM)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 90473-842-000

WASHER (8MM)

$1.99

$

In Stock, only 4 left!

0

20

Honda 90551-883-000

SEE PART DETAILS - SUP; CLIP, PISTON PIN (15MM)
(Superseded to 94601-15000)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94601-15000

SEE PART DETAILS - PRI; CLIP, PISTON PIN (15MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 90746-835-000

KEY (5X5X33)

$9.49

$

In Stock, only 1 left!

0

22

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

23

Honda 94101-05000

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 3 left!

0

24

Honda 94201-30450

PIN, COTTER (3.0X45)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0
