HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) HANDLEBAR Parts Diagram

Snow Blower, Made in Japan

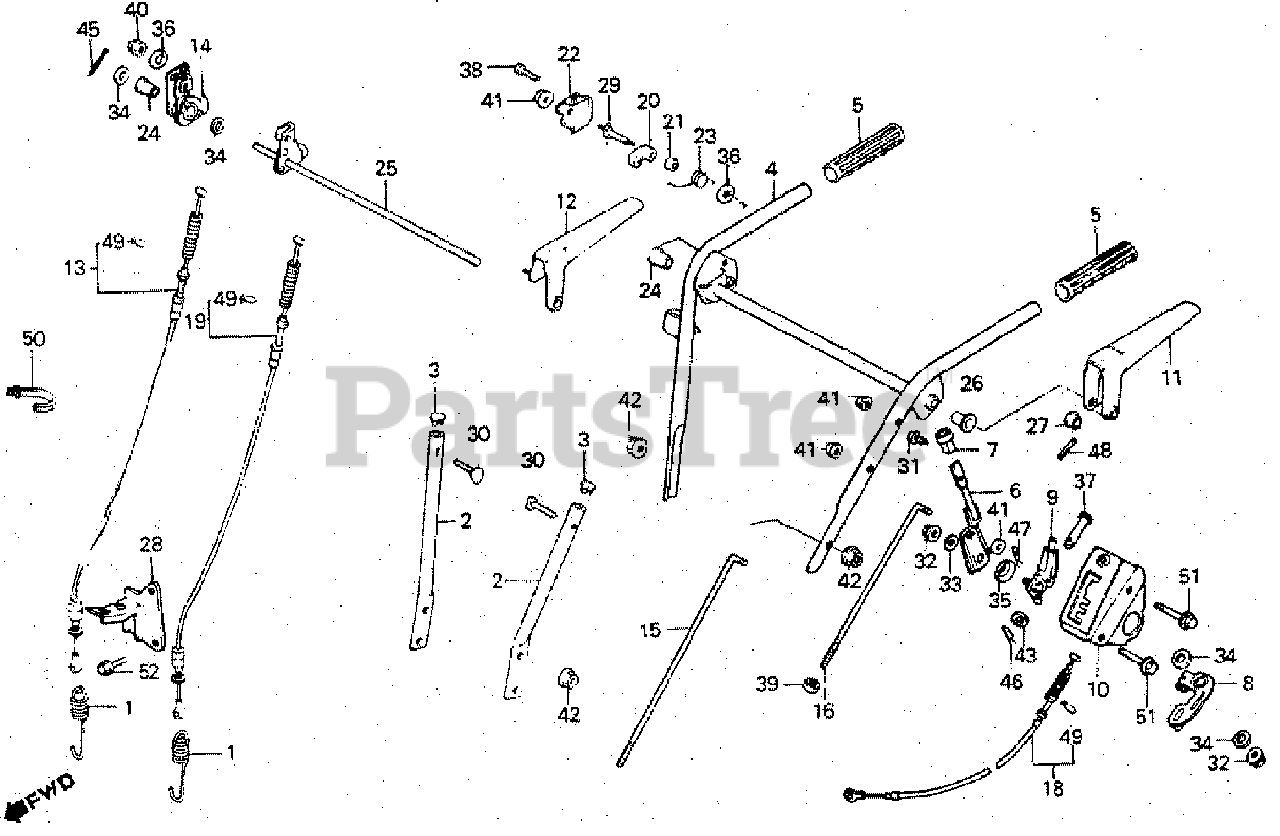

HANDLEBAR Parts Diagram

  • Title

1

Honda 24468-732-000

SPRING, AUGER TENSION (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 53110-732-670

HANDLE (LOWER)

$

$

Not available

3

Honda 53115-732-000

CAP, HANDLE (LOWER)

$4.49

$

Usually ships in 3-6 days

0

4

Honda 53150-732-000

PIPE, HANDLE (UPPER)

$

$

Currently unavailable

5

Honda 53321-708-000

GRIP, HANDLE

$17.99

$

In Stock, only 2 left!

0

6

Honda 54211-732-670

LEVER, CHANGE

$

$

Currently unavailable

7

Honda 54225-952-770

KNOB, LEVER

$13.99

$

Usually ships in 3-6 days

0

8

Honda 54226-732-670

LINK, CHANGE

$

$

Not available

9

Honda 54227-732-670

ARM, CHANGE LEVER

$

$

Not available

10

Honda 54228-732-670

BRACKET, CHANGE LEVER

$

$

Not available

11

Honda 54415-732-000

LEVER, CLUTCH

$

$

Not available

12

Honda 54416-732-000

LEVER, AUGER CLUTCH

$

$

Not available

14

Honda 54520-732-010

BOSS, CAM LOCK

$

$

Currently unavailable

15

Honda 54521-732-670

ROD, GEARSHIFT

Note: Use up to Frame SN 1011272.

$

$

Currently unavailable

17

Honda 54521-732-671

ROD, GEARSHIFT (NOT AVAILABLE)

Note: Use from Frame SN 1011273.

$

$

Currently unavailable

18

Honda 54525-732-670

CABLE, CHANGE (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 54530-732-000

CABLE, CLUTCH

$

$

Not available

20

Honda 54531-732-003

RATCHET, LEVER

$12.99

$

Usually ships in 3-6 days

0

21

Honda 54533-732-000

COLLAR, RATCHET

$4.49

$

Usually ships in 3-6 days

0

22

Honda 54535-732-000

COVER, RATCHET

$

$

Not available

23

Honda 54536-732-000

SEE PART DETAILS - SUP; SPRING, RATCHET
(Superseded to 54536-736-A00)

$4.99

$

Usually ships in 3-6 days

0

23

Honda 54536-736-A00

SEE PART DETAILS - PRI; SPRING, RATCHET

$4.99

$

Usually ships in 3-6 days

0

24

Honda 54538-732-000

BUSH (13MM)

$11.99

$

Usually ships in 3-6 days

0

25

Honda 54550-732-000

SHAFT, CLUTCH LEVER (NOT AVAILABLE)

$

$

Currently unavailable

26

Honda 54554-732-000

BUSH (14MM)

$9.99

$

Usually ships in 3-6 days

0

27

Honda 54556-732-000

BUSH (4.5MM)

$

$

Not available

28

Honda 74165-732-670

HOLDER, AUGER WIRE

$

$

Not available

29

Honda 90105-732-000

BOLT, PIVOT (6MM)

$9.49

$

Usually ships in 3-6 days

0

30

Honda 90109-VA4-000

BOLT, HANDLE HOLDER
(Superseded to 90113-V10-000)

$8.99

$

In Stock, Qty 19

0

31

Honda 90110-732-000

SCREW-WASHER, SPECIAL (4X8)

$2.49

$

Usually ships in 3-6 days

0

32

Honda 90115-659-003

NUT, SELF-LOCK (8MM)

$0.99

$

In Stock, Qty 20+

0

33

Honda 90401-689-010

WASHER A (10MM)

$

$

Not available

34

Honda 90412-329-000

WASHER (10MM)
(Superseded to 90412-KZL-840)

$0.99

$

In Stock, only 2 left!

0

35

Honda 90455-881-000

SPRING, LEVER

$4.49

$

Usually ships in 3-6 days

0

36

Honda 90539-836-000

WASHER (6MM)

$3.49

$

Usually ships in 3-6 days

0

37

Honda 90702-732-670

PIN, LINK

$

$

Not available

38

Honda 93101-06006-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X6)

$

$

Not available

39

Honda 94030-08000

NUT, HEX. (8MM)

Note: Use from Frame SN 1011043.

$1.49

$

Usually ships in 3-6 days

0

40

Honda 94021-06020

SEE PART DETAILS - PRI; NUT, CAP (6MM)

$2.49

$

Usually ships in 3-6 days

0

41

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

42

Honda 94050-08000

SEE PART DETAILS - PRI; NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

43

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

44

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

45

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 20+

0

46

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 11

0

47

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 13

0

48

Honda 94305-30162

PIN, SPRING (3X16)

$2.49

$

In Stock, only 3 left!

0

49

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, only 4 left!

0

50

Honda 95014-61200

BAND A2, CABLE

$3.49

$

In Stock, only 1 left!

0

51

Honda 95701-06035-00

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 2 left!

0

52

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 7

0

52

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 7

0
