HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) CONTROL PANEL Parts Diagram

Snow Blower, Made in Japan

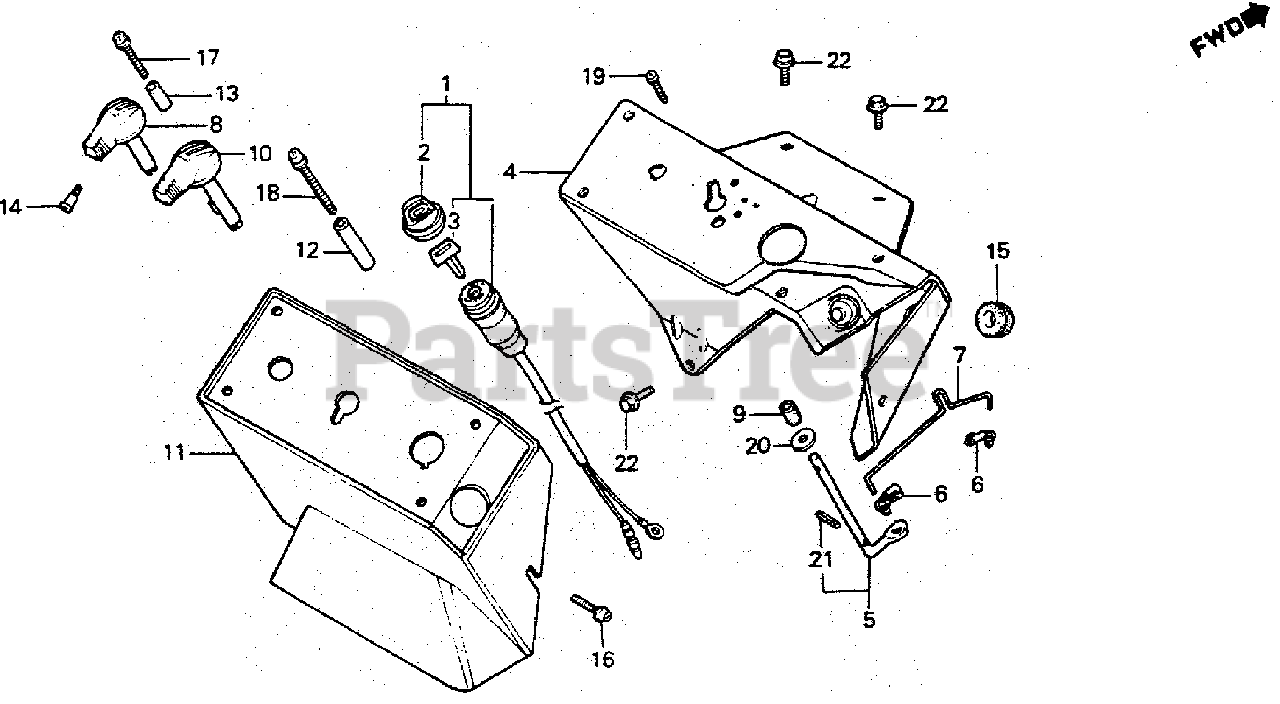

CONTROL PANEL Parts Diagram

  • Title

1

Honda 35010-732-670

LOCK SET (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 35113-958-681

CAP, COMBINATION SWITCH KEY

$

$

Not available

3

Honda 35121-086-811

SEE PART DETAILS - SUP; KEY, BLANK (TYPE1)
(Superseded to 35121-GW0-731)

$11.99

$

Usually ships in 3-6 days

0

3

Honda 35122-086-811

SEE PART DETAILS - SUP; KEY, BLANK (TYPE2)
(Superseded to 35122-GW0-731)

$

$

Not available

4

Honda 55110-732-670

PLATE, CONTROL

$

$

Not available

5

Honda 55311-732-000

SHAFT, CHOKE CONTROL (NOT AVAILABLE)

$

$

Not available

6

Honda 55314-730-000

JOINT, ROD

$

$

Not available

7

Honda 55315-732-000

ROD, CHOKE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 55316-730-000

KNOB, CHOKE CONTROL

$

$

Not available

9

Honda 55317-732-000

RUBBER, FRICTION (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 55412-732-000

KNOB, CONTROL

$

$

Currently unavailable

11

Honda 63121-732-670

PANEL, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 63122-732-000

COLLAR A (NOT AVAILABLE)

$

$

Currently unavailable

13

Honda 63123-732-000

COLLAR B (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90191-730-000

SCREW, CHOKE KNOB (3X11)

$

$

Not available

15

Honda 90852-898-000

RUBBER, CONTROL BOX

$4.99

$

Usually ships in 3-6 days

0

16

Honda 93891-05016-07

SCREW-WASHER (5X16)

$1.49

$

In Stock, Qty 6

0

17

Honda 93891-05028-07

SCREW-WASHER (5X28)

$1.49

$

In Stock, Qty 5

0

18

Honda 93891-05045-07

SCREW-WASHER (5X45)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 93901-12320

SCREW, TAPPING (3X12)

$1.49

$

Usually ships in 3-6 days

0

20

Honda 94101-06700

WASHER, PLAIN (6MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94305-25121

PIN, SPRING (2.5X12)

Note: Use up to Frame SN 1000547.

$1.99

$

Usually ships in 3-6 days

0

21

Honda 94305-25123

PIN, SPRING (2.5X12)

Note: Use from Frame SN 1000548.

$1.99

$

Usually ships in 3-6 days

0

22

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 14

0
