HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) CARBURETOR Parts Diagram

Snow Blower, Made in Japan

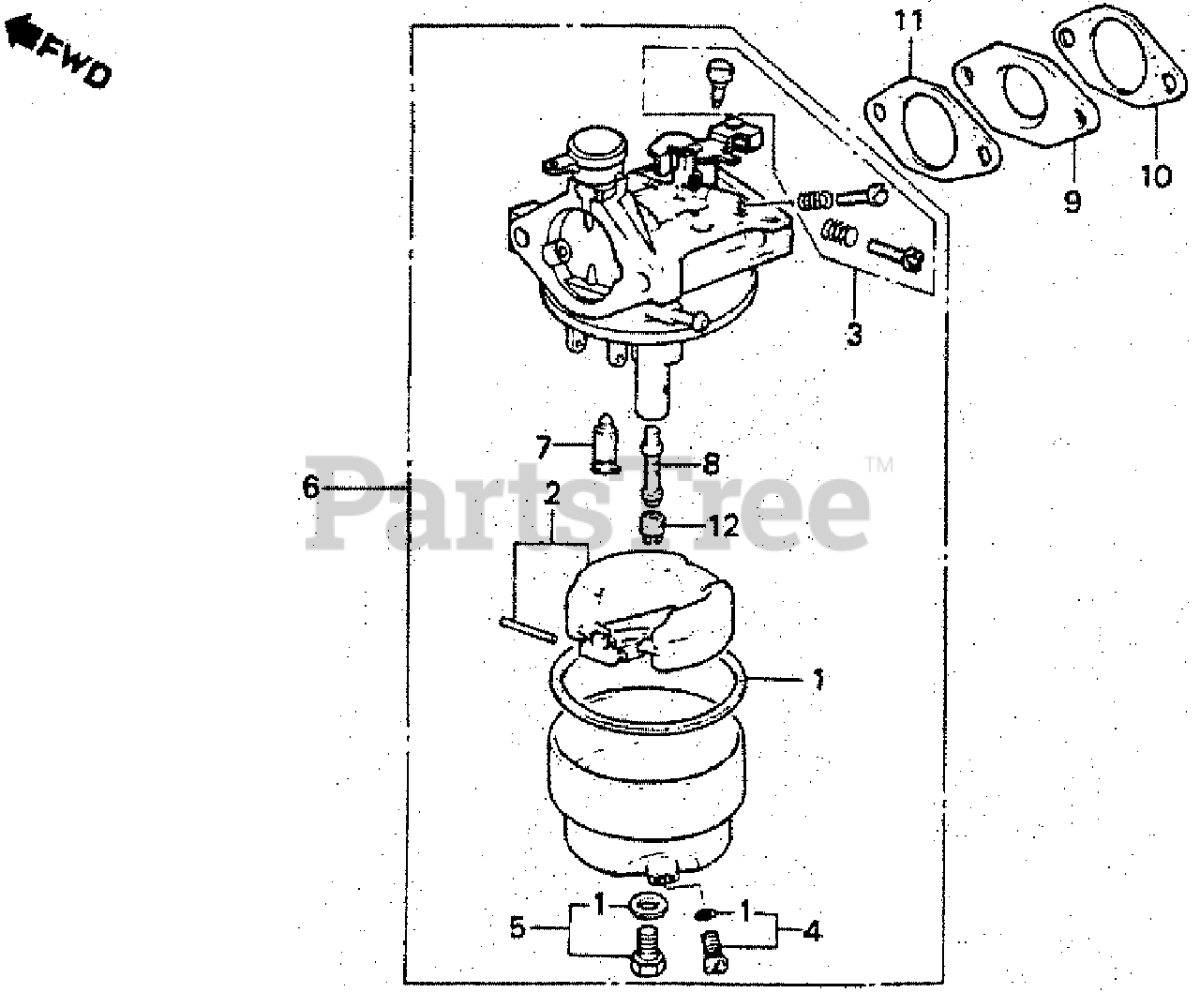

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-YA0-801

GASKET SET

$23.99

$

In Stock, only 1 left!

0

2

Honda 16013-883-005

FLOAT SET

$38.99

$

Usually ships in 3-6 days

0

3

Honda 16016-YA0-801

SCREW SET A

$20.99

$

Usually ships in 3-6 days

0

4

Honda 16024-890-731

SCREW SET, DRAIN

$

$

Not available

5

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET B
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

6

Honda 16100-732-306

SEE PART DETAILS - SUP; CARBURETOR ASSY.

$

$

Currently unavailable

6

Honda 16100-732-316

SEE PART DETAILS - PRI; CARBURETOR ASSY.

$

$

Currently unavailable

7

Honda 16155-883-005

VALVE, FLOAT

$26.99

$

Usually ships in 3-6 days

0

8

Honda 16166-883-005

NOZZLE, MAIN

$12.99

$

Usually ships in 3-6 days

0

9

Honda 16211-883-000

INSULATOR, CARBURETOR

$16.99

$

Usually ships in 3-6 days

0

10

Honda 16212-883-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.49

$

In Stock, Qty 6

0

11

Honda 16221-883-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-887-800)

$3.49

$

In Stock, Qty 20+

0

11

Honda 16221-887-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$3.49

$

In Stock, Qty 20+

0

12

Honda 99101-124-0720

JET, MAIN (#72)

$11.99

$

Usually ships in 3-6 days

0
