HS50 TA (HS50) - Honda Snow Blower, Made in Japan (SN: HS50-1000534 - HS50-9999999) AUGER + DRIVE PULLEY Parts Diagram

Snow Blower, Made in Japan

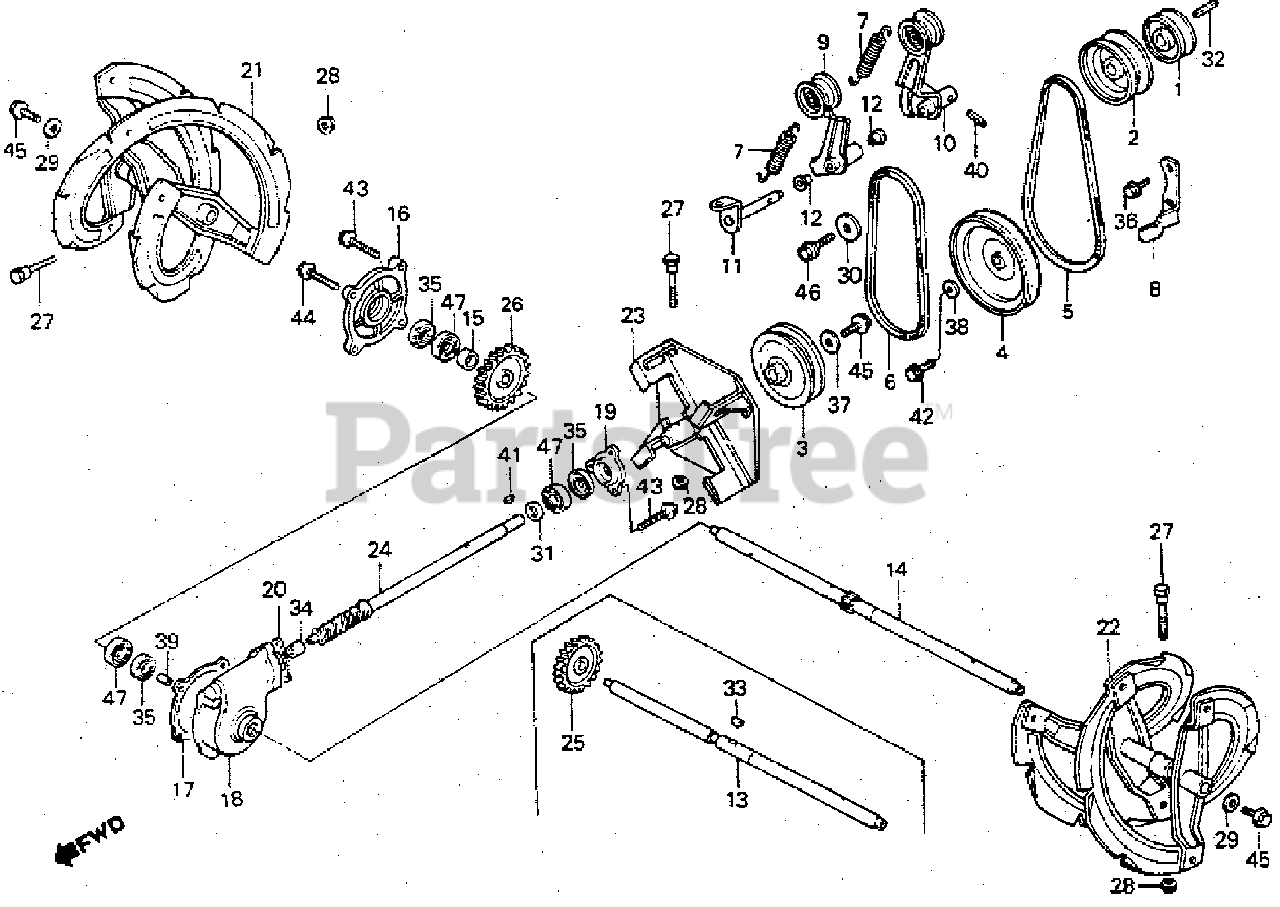

AUGER + DRIVE PULLEY Parts Diagram

  • Title

NI

Honda 90753-732-000

KEY, SPECIAL WOODRUFF (16X12)

Note: Use from Frame SN 1011043.

$4.99

$

Usually ships in 3-6 days

0

NI

Honda 94401-16120

KEY, WOODRUFF (16X12)

Note: Use up to Frame SN 1011042.

$1.99

$

In Stock, only 4 left!

0

1

Honda 22411-732-000

PULLEY, WHEEL DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 22412-732-000

PULLEY, AUGER DRIVE

$

$

Currently unavailable

3

Honda 22415-732-900

PULLEY, AUGER DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 22416-732-900

PULLEY, WHEEL DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 22431-732-671

V-BELT (31.7)

$22.99

$

In Stock, only 1 left!

0

6

Honda 22432-732-013

V-BELT (SB-27)

$29.99

$

Usually ships in 3-6 days

0

7

Honda 22437-732-000

SPRING, TENSIONER RETURN

$

$

Not available

8

Honda 22441-732-010

STOPPER, BELT

$

$

Currently unavailable

9

Honda 22510-732-670

ARM, AUGER TENSIONER

$

$

Not available

10

Honda 22520-732-670

ARM, TENSIONER

$

$

Not available

11

Honda 22522-732-670

SHAFT, TENSIONER (NOT AVAILABLE)

$

$

Not available

12

Honda 22524-730-000

BUSH, TENSIONER ARM

$9.99

$

Usually ships in 3-6 days

0

13

Honda 23371-732-901

SHAFT, AUGER

Note: Use up to Frame SN 1011272.

$

$

Not available

14

Honda 23371-732-902

SHAFT, AUGER

Note: Use from Frame SN 1011273.

$

$

Currently unavailable

15

Honda 23375-732-000

COLLAR, DISTANCE

$

$

Not available

16

Honda 71211-732-000

COVER, AUGER TRANSMISSION (NOT AVAILABLE)

$

$

Not available

17

Honda 71212-732-306

GASKET, AUGER TRANSMISSION

$

$

Not available

18

Honda 71221-732-000

CASE, L. AUGER TRANSMISSION

$

$

Currently unavailable

19

Honda 71222-732-000

CAP, AUGER CASE (NOT AVAILABLE)

$

$

Not available

20

Honda 71223-732-306

GASKET, AUGER CASE

$

$

Not available

21

Honda 72401-732-900

AUGER, R.

$

$

Currently unavailable

22

Honda 72402-732-900

AUGER, L.

$

$

Currently unavailable

23

Honda 72411-732-901

BLOWER (12")

Note: Use up to Frame SN 1011272.

$

$

Currently unavailable

23

Honda 72411-732-902

BLOWER (12") (NOT AVAILABLE)

Note: Use from Frame SN 1011273.

$

$

Currently unavailable

24

Honda 73251-732-900

GEAR, DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 73551-732-010

GEAR, DRIVEN

Note: Use up to Frame SN 1011272.

$

$

Currently unavailable

26

Honda 73551-732-020

GEAR, DRIVEN (NOT AVAILABLE)

Note: Use from Frame SN 1011273.

$

$

Currently unavailable

27

Honda 90102-732-000

SEE PART DETAILS - SUP; BOLT, LOCK
(Superseded to 90102-732-010)

Note: Use up to Frame SN 1011042.

$6.49

$

In Stock, Qty 20+

0

27

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 20+

0

28

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$4.49

$

Usually ships in 3-6 days

0

29

Honda 90430-657-000

WASHER (8MM)

$9.49

$

In Stock, only 1 left!

0

30

Honda 90534-706-010

WASHER, LOCK (8MM)

$6.99

$

Usually ships in 3-6 days

0

31

Honda 90554-728-940

WASHER, THRUST (27X20X1.0)

$8.49

$

Usually ships in 3-6 days

0

32

Honda 90746-835-000

KEY (5X5X33)

$9.49

$

In Stock, only 1 left!

0

33

Honda 90751-732-000

SEE PART DETAILS - SUP; KEY, SPECIAL WOODRUFF (25X18)

Note: Use up to Frame SN 1011272.

$

$

Not available

33

Honda 90751-732-305

SEE PART DETAILS - PRI; KEY, SPECIAL WOODRUFF (25X18) (NOT AVAILABLE)

Note: Use from Frame SN 1011273.

$

$

Currently unavailable

34

Honda 91002-732-000

BEARING, NEEDLE (15MM)

$18.99

$

Usually ships in 3-6 days

0

35

Honda 91201-732-003

OIL SEAL (20X32X7)

$11.99

$

In Stock, only 4 left!

0

36

Honda 92101-08016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X16)

$1.99

$

Usually ships in 3-6 days

0

37

Honda 91414-671-000

WASHER (20MM)

Note: Use from Frame SN 1011043.

$7.49

$

Usually ships in 3-6 days

0

37

Honda 94103-06000

WASHER, PLAIN (6MM)

Note: Use up to Frame SN 1011042.

$1.49

$

In Stock, Qty 20+

0

38

Honda 90534-706-010

WASHER, LOCK (8MM)

Note: Use from Frame SN 1011043.

$6.99

$

Usually ships in 3-6 days

0

38

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: Use up to Frame SN 1011042.

$0.99

$

In Stock, Qty 20+

0

39

Honda 94301-08140

PIN A, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

40

Honda 94305-60252

PIN, SPRING (6X25)

$2.49

$

Usually ships in 3-6 days

0

41

Honda 94401-16120

KEY, WOODRUFF (16X12)

$1.99

$

In Stock, only 4 left!

0

42

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16)

Note: Use up to Frame SN 1011042.

$2.49

$

In Stock, only 3 left!

0

42

Honda 95701-06016-08

BOLT, FLANGE (6X16)

Note: Use from Frame SN 1011043.

$1.99

$

In Stock, Qty 5

0

43

Honda 95701-06020-00

BOLT, FLANGE (6X20)

$2.49

$

In Stock, Qty 9

0

44

Honda 95700-06028-00

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0

44

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0

45

Honda 95700-08016-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X16)
(Superseded to 95701-08016-00)

$2.49

$

In Stock, Qty 20+

0

45

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

46

Honda 95700-08020-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X20)
(Superseded to 95701-08020-00)

$2.49

$

In Stock, only 1 left!

0

46

Honda 95701-08020-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20)

$2.49

$

In Stock, only 1 left!

0

47

Honda 96100-60040-00

BEARING, RADIAL BALL (6004)

$20.99

$

In Stock, only 2 left!

0
