HS35 A (HS35) - Honda Snow Blower, Made in Japan (SN: HS35-1000001 - HS35-9999999) FLYWHEEL Parts Diagram

Snow Blower, Made in Japan

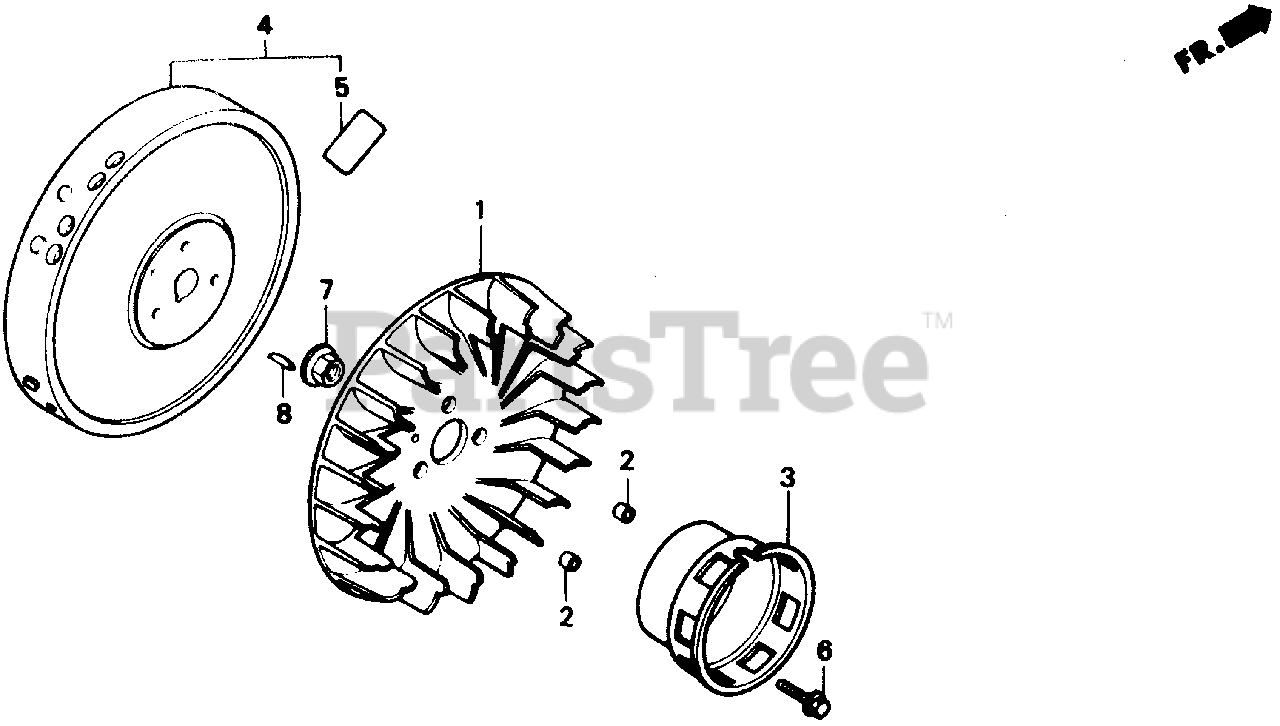

FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-887-020

SEE PART DETAILS - SUP; FAN, COOLING

$

$

Not available

2

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

3

Honda 28453-887-921

PULLEY, STARTER

$

$

Currently unavailable

4

Honda 31100-887-030

SEE PART DETAILS - SUP; FLYWHEEL (POINT)

Note: Use up to Engine SN 1909578.

$

$

Currently unavailable

4

Honda 31100-887-751

FLYWHEEL

Note: Use from Engine SN 1909579.

$

$

Not available

5

Honda 87541-896-000

MARK, FLYWHEEL CAUTION

Note: Use from Engine SN 1436960.

$

$

Not available

6

Honda 95701-06016-08

BOLT, FLANGE (6X16)

$2.49

$

In Stock, Qty 5

0

7

Honda 90201-878-003

SEE PART DETAILS - PRI; NUT, SPECIAL (14MM)

$8.49

$

In Stock, only 1 left!

0

8

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

Note: Use from Engine SN 1909579.

$5.49

$

In Stock, only 2 left!

0

8

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

Note: Use up to Engine SN 1909578.

$1.99

$

In Stock, Qty 12

0
