HS35 A (HS35) - Honda Snow Blower, Made in Japan (SN: HS35-1000001 - HS35-9999999) DRIVE PULLEY Parts Diagram

Snow Blower, Made in Japan

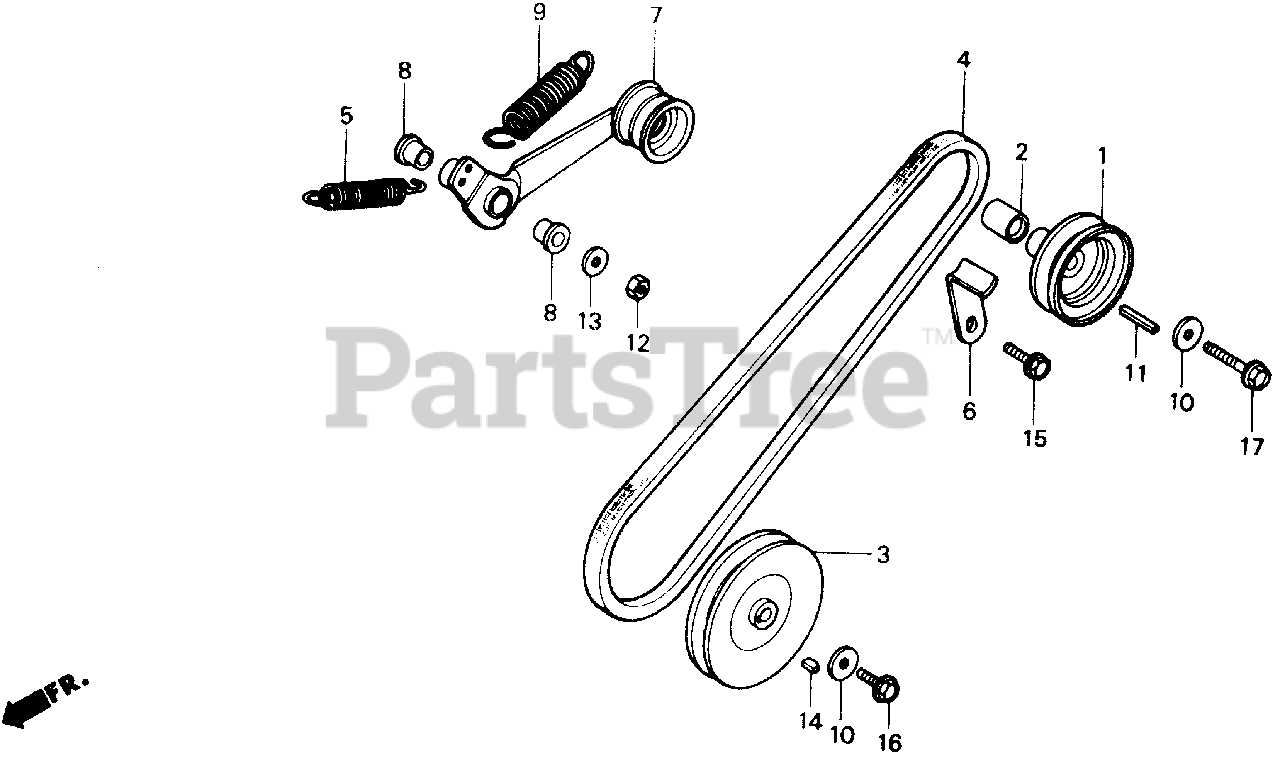

DRIVE PULLEY Parts Diagram

  • Title

1

Honda 22411-730-000

PULLEY, DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 22412-730-000

COLLAR, DRIVE PULLEY

$

$

Currently unavailable

3

Honda 22415-730-000

PULLEY, DRIVEN (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 22431-727-003

SEE PART DETAILS - SUP; V-BELT (SB-38)
(Superseded to 22431-727-013)

$40.99

$

Usually ships in 3-6 days

0

4

Honda 22431-727-013

SEE PART DETAILS - PRI; V-BELT (SB-38)

$40.99

$

Usually ships in 3-6 days

0

5

Honda 22437-730-000

SPRING, TENSIONER ARM RETURN

$

$

Currently unavailable

6

Honda 22441-730-000

STOPPER, BELT

$

$

Not available

7

Honda 22510-730-000

ARM, TENSIONER

$

$

Currently unavailable

8

Honda 22524-730-000

BUSH, TENSIONER ARM

$9.99

$

Usually ships in 3-6 days

0

9

Honda 22531-730-000

SPRING, BELT TENSIONER

$

$

Currently unavailable

10

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

11

Honda 90746-835-000

KEY (5X5X33)

$9.49

$

In Stock, only 1 left!

0

12

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

13

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

14

Honda 94401-16120

KEY, WOODRUFF (16X12)

$1.99

$

In Stock, only 4 left!

0

15

Honda 95701-08012-08

BOLT, FLANGE (8X12)

$2.49

$

Usually ships in 3-6 days

0

16

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0

17

Honda 95701-08032-08

BOLT, FLANGE (8X32)

$2.99

$

Usually ships in 3-6 days

0
