HS35 A (HS35) - Honda Snow Blower, Made in Japan (SN: HS35-1000001 - HS35-9999999) AUGER Parts Diagram

Snow Blower, Made in Japan

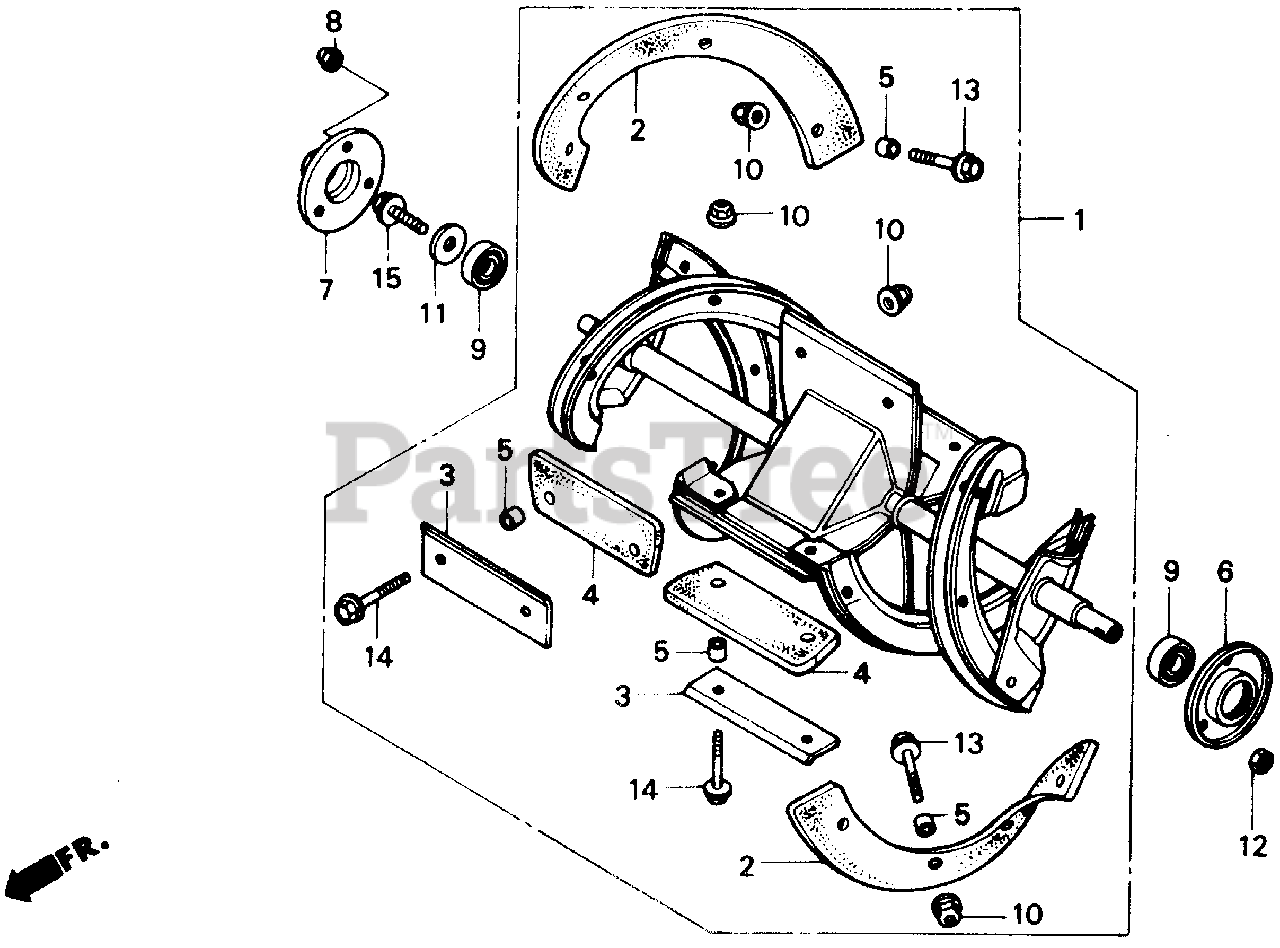

AUGER Parts Diagram

  • Title

1

Honda 72400-730-000

AUGER ASSY.

$

$

Not available

2

Honda 72521-730-003

RUBBER, AUGER

$35.99

$

In Stock, only 4 left!

0

3

Honda 72525-730-000

HOLDER, RUBBER

$13.99

$

In Stock, only 2 left!

0

4

Honda 72552-730-003

RUBBER, BLOWER

$12.99

$

In Stock, only 2 left!

0

5

Honda 72555-730-000

COLLAR, AUGER RUBBER

$

$

Not available

6

Honda 72611-730-000

HOLDER, L. AUGER

$19.99

$

Usually ships in 3-6 days

0

7

Honda 72612-730-000

HOLDER, R. AUGER

$19.99

$

Usually ships in 3-6 days

0

8

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90201-730-003

BEARING, RADIAL BALL (6203)

$25.99

$

In Stock, only 1 left!

0

10

Honda 90114-SA0-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$4.49

$

In Stock, Qty 20+

0

11

Honda 90428-844-650

WASHER (8MM)

$4.99

$

Usually ships in 3-6 days

0

12

Honda 94001-06080-0S

NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 6

0

13

Honda 95701-06020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X20)

$0.99

$

Usually ships in 3-6 days

0

14

Honda 95700-06025-08

BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95701-06025-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25)

$2.49

$

Usually ships in 3-6 days

0

15

Honda 95701-08016-08

BOLT, FLANGE (8X16)

$2.49

$

In Stock, only 3 left!

0
