HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) POWER HEIGHT Parts Diagram

36" Snow Blower, Made in Japan

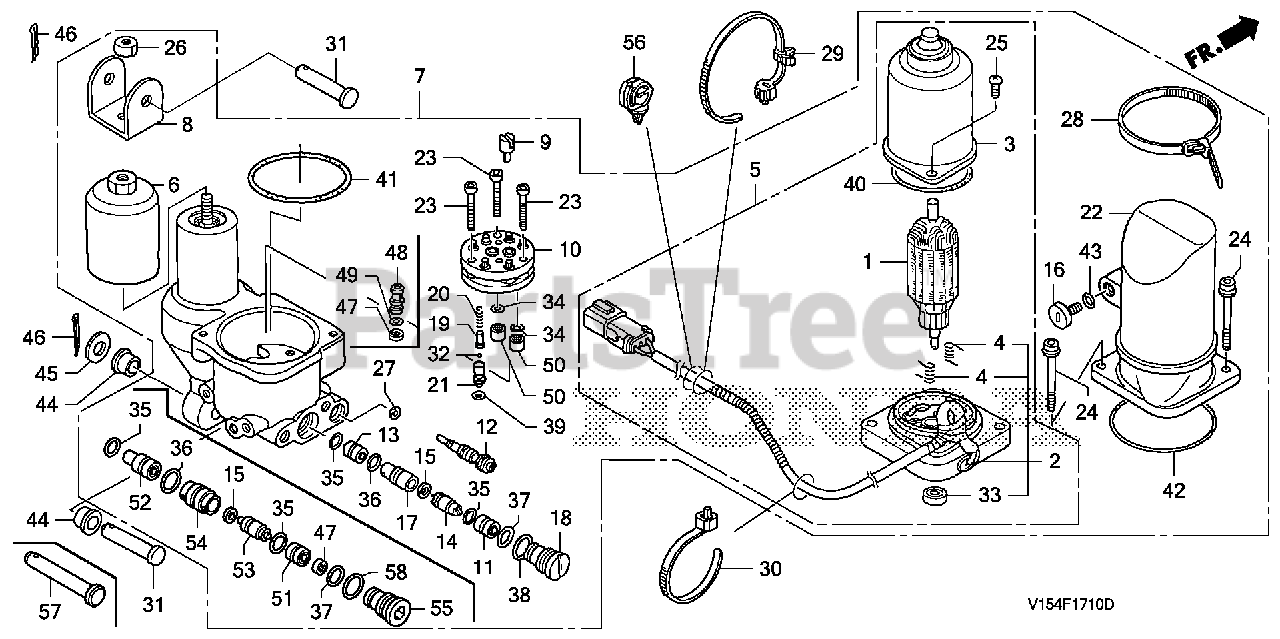

POWER HEIGHT Parts Diagram

  • Title

1

Honda 31217-V15-003

ARMATURE

$107.99

$

Usually ships in 3-6 days

0

2

Honda 36122-V15-003

BRACKET ASSY.

$281.99

$

Usually ships in 3-6 days

0

3

Honda 36129-V15-003

YOKE

$42.99

$

Usually ships in 3-6 days

0

4

Honda 36136-762-801

SPRING, MOTOR

$4.99

$

Usually ships in 3-6 days

0

5

Honda 36140-V15-003

MOTOR ASSY., POWER HEIGHT

$

$

Not available

6

Honda 52689-V15-003

COVER, DUST END

$7.99

$

Usually ships in 3-6 days

0

7

Honda 56000-V15-053

SEE PART DETAILS - PRI; HEIGHT ASSY., POWER
(Superseded to 56000-V15-063)

$1873.99

$

Usually ships in 3-6 days

0

8

Honda 56113-V15-003

JOINT, METAL

$21.99

$

Usually ships in 3-6 days

0

9

Honda 56113-ZW1-701

JOINT, DRIVE

$22.99

$

Usually ships in 3-6 days

0

10

Honda 56114-V15-003

PUMP

$177.99

$

Usually ships in 3-6 days

0

12

Honda 56141-V15-023

VALVE, MANUAL

$79.99

$

Usually ships in 3-6 days

0

15

Honda 56151-ZV5-822

RING, BACK-UP

$7.99

$

Usually ships in 3-6 days

0

16

Honda 56160-V15-003

BOLT, PLUG

$12.99

$

Usually ships in 3-6 days

0

19

Honda 56182-V15-003

GUIDE, SPRING

$17.99

$

Usually ships in 3-6 days

0

20

Honda 56183-V15-003

SPRING, VALVE

$4.49

$

Usually ships in 3-6 days

0

22

Honda 56851-V15-003

RESERVOIR

$49.99

$

Usually ships in 3-6 days

0

23

Honda 90101-V15-003

BOLT, SOCKET

$9.49

$

Usually ships in 3-6 days

0

24

Honda 90102-V15-003

BOLT, SOCKET

$12.99

$

Usually ships in 3-6 days

0

25

Honda 90134-V15-003

SCREW, PAN (5X0.8)

$4.99

$

Usually ships in 3-6 days

0

26

Honda 90301-V15-003

NUT, HEX.

$5.49

$

Usually ships in 3-6 days

0

28

Honda 90620-766-801

BAND, WIRE HARNESS

$9.49

$

Usually ships in 3-6 days

0

29

Honda 32161-V15-003

BAND, WIRE HARNESS

$4.99

$

Usually ships in 3-6 days

0

31

Honda 90752-V15-000

PIN (12X46)

$16.99

$

Usually ships in 3-6 days

0

32

Honda 90921-766-801

BALL, STEEL

$3.49

$

Usually ships in 3-6 days

0

33

Honda 91203-ZV5-821

OIL SEAL

$41.99

$

Usually ships in 3-6 days

0

34

Honda 91309-797-A01

O-RING (1.5X8.5)

$6.49

$

Usually ships in 3-6 days

0

35

Honda 91305-ZV5-822

O-RING (1.5X10.7)

$3.49

$

Usually ships in 3-6 days

0

36

Honda 91306-ZV5-821

O-RING (1.5X13.5)

$4.99

$

Usually ships in 3-6 days

0

37

Honda 91307-ZV5-821

O-RING (1.5X15.5)

$4.99

$

Usually ships in 3-6 days

0

40

Honda 91318-V15-003

O-RING

$5.99

$

Usually ships in 3-6 days

0

41

Honda 91351-V15-003

O-RING (2.0X62.5)

$10.99

$

Usually ships in 3-6 days

0

42

Honda 91352-V15-003

O-RING (2.4X66.6)

$8.49

$

Usually ships in 3-6 days

0

43

Honda 91353-V15-003

O-RING (1.9X9.8)

$3.49

$

Usually ships in 3-6 days

0

44

Honda 91552-V15-000

BUSH, CYLINDER (UPPER)

$2.99

$

Usually ships in 3-6 days

0

45

Honda 94103-12000

WASHER, PLAIN (12MM)

$1.49

$

In Stock, Qty 20+

0

46

Honda 94201-30250

PIN, SPLIT (3.0X25)
(Superseded to 94201-30450)

$1.49

$

Usually ships in 3-6 days

0

46

Honda 94201-30450

PIN, SPLIT (3.0X45)

$1.49

$

Usually ships in 3-6 days

0

47

Honda 56116-V15-003

FILTER

$

$

Currently unavailable

48

Honda 56191-V15-013

SEAT, VALVE

$

$

Currently unavailable

49

Honda 91354-V15-003

O-RING (1.5X5.5)

$

$

Currently unavailable

50

Honda 56117-V15-003

FILTER A

$11.99

$

Usually ships in 3-6 days

0

51

Honda 56140-797-A03

VALVE B

$99.99

$

Usually ships in 3-6 days

0

52

Honda 56142-797-A02

VALVE C

$99.99

$

Usually ships in 3-6 days

0

53

Honda 56150-V15-703

SPOOL, VALVE

$45.99

$

Usually ships in 3-6 days

0

54

Honda 56161-V15-003

SLEEVE

$38.99

$

Usually ships in 3-6 days

0

55

Honda 56163-V15-013

PLUG

$31.99

$

Usually ships in 3-6 days

0

56

Honda 90683-SA0-003

CLIP, WIRE HARNESS (25MM)

$12.99

$

Usually ships in 3-6 days

0

57

Honda 90751-797-000

PIN (12X55.5)

$5.49

$

Usually ships in 3-6 days

0

58

Honda 91308-V15-003

O-RING (1.8X18.8)

$4.99

$

Usually ships in 3-6 days

0
