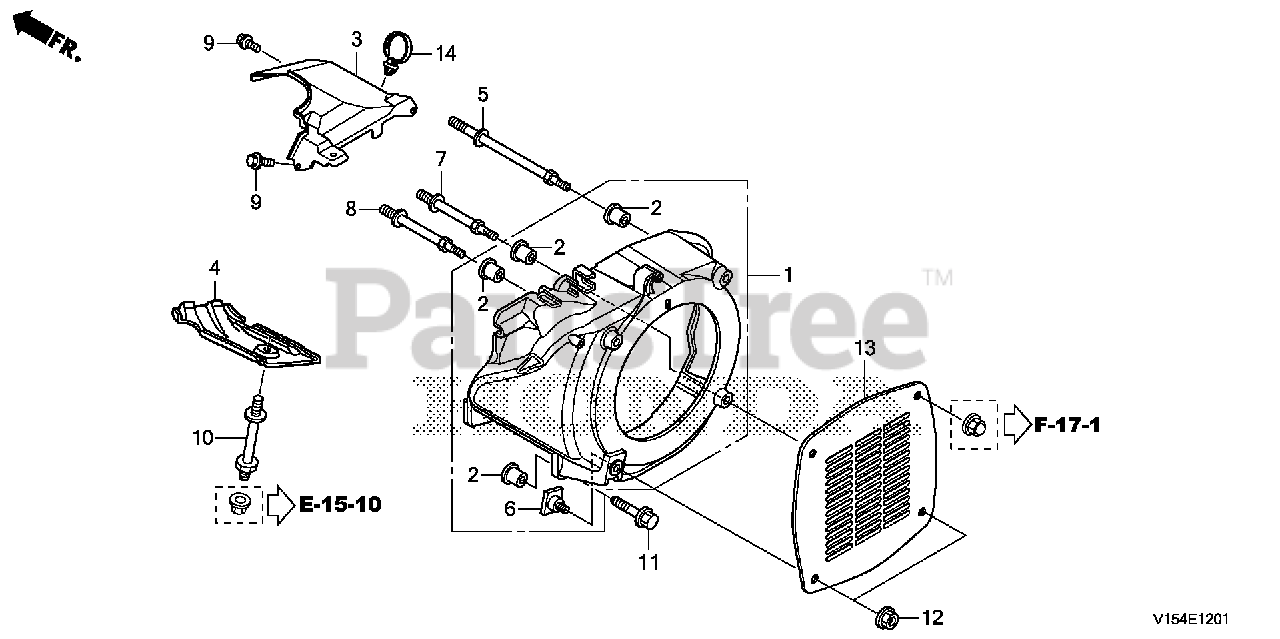

HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) FAN COVER (2) Parts Diagram

36" Snow Blower, Made in Japan

FAN COVER (2) Parts Diagram

  • Title

1

Honda 19610-Z5T-W00ZB

COVER, FAN *R280* (POWER RED)

$90.99

$

Usually ships in 3-6 days

0

2

Honda 19619-ZL8-300

COLLAR, FAN COVER

$1.49

$

In Stock, Qty 20+

0

3

Honda 19630-Z5T-W00

SHROUD (UPPER)

$47.99

$

Usually ships in 3-6 days

0

4

Honda 19631-Z5T-000

SHROUD

$1.49

$

Usually ships in 3-6 days

0

5

Honda 90002-Z5T-W00

BOLT, STUD (SEL)

$7.99

$

In Stock, only 1 left!

0

6

Honda 90003-Z2E-000

BOLT, SPECIAL (6MM)

$7.99

$

In Stock, only 2 left!

0

7

Honda 90003-Z5T-W00

BOLT, STUD

$3.49

$

In Stock, only 2 left!

0

8

Honda 90007-Z5T-W00

BOLT B, STUD

$3.99

$

In Stock, only 1 left!

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

10

Honda 90042-Z1D-H00

BOLT, SHROUD (LOWER)

$6.49

$

Usually ships in 3-6 days

0

11

Honda 90121-952-000

BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

12

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 19615-Z1C-H00

GUARD, FAN

$38.99

$

Usually ships in 3-6 days

0

14

Honda 91541-S0A-003

CLIP, HARNESS BAND (145MM) (BLACK)

$5.49

$

In Stock, only 1 left!

0
