HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) CYLINDER HEAD Parts Diagram

36" Snow Blower, Made in Japan

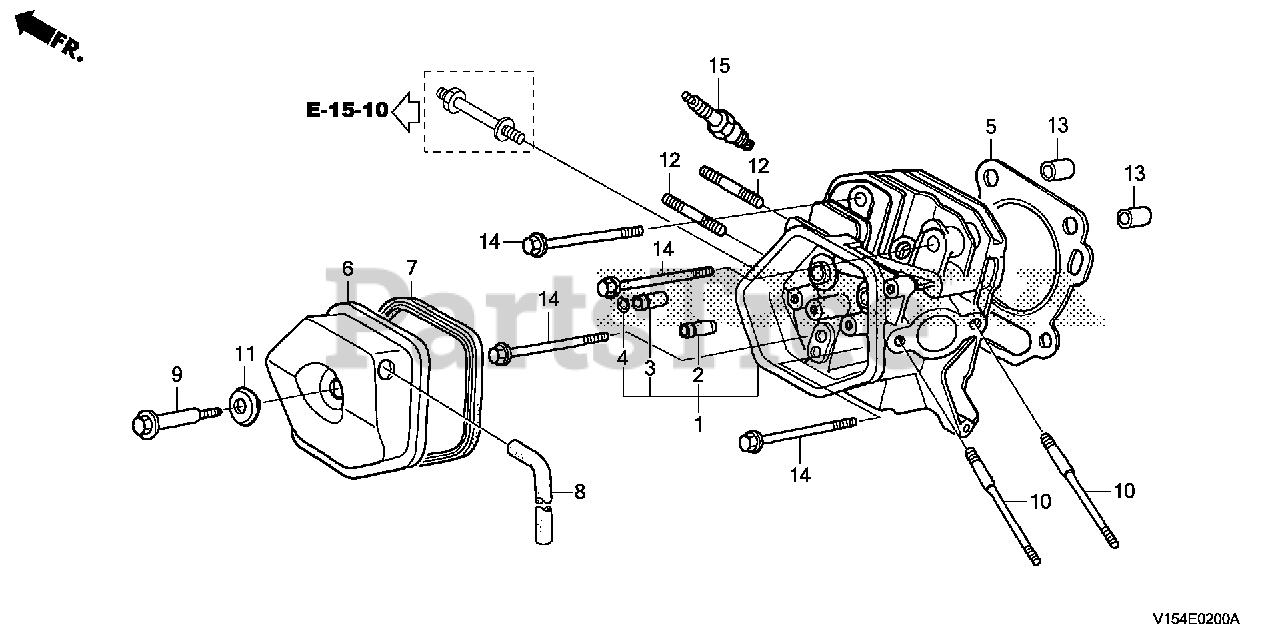

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12210-Z5T-406

SEE PART DETAILS - SUP; CYLINDER HEAD
(Superseded to 12210-Z5T-416)

Note: Use up to Engine SN 1188309.

$82.99

$

In Stock, only 4 left!

0

1

Honda 12210-Z5T-416

SEE PART DETAILS - PRI; CYLINDER HEAD

$82.99

$

In Stock, only 4 left!

0

2

Honda 12204-ZE2-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$14.99

$

Usually ships in 3-6 days

0

3

Honda 12205-ZE2-305

GUIDE, EX. VALVE (OVER SIZE)

$

$

Not available

4

Honda 12216-ZE2-300

CLIP, VALVE GUIDE

$2.99

$

In Stock, Qty 5

0

5

Honda 12251-Z5T-003

GASKET, CYLINDER HEAD (NIPPON LEAKLESS)

$4.49

$

In Stock, Qty 20+

0

6

Honda 12310-ZE2-020

COVER, HEAD

$63.99

$

In Stock, only 2 left!

0

7

Honda 12391-ZE2-020

SEE PART DETAILS - PRI; GASKET, HEAD COVER

$12.99

$

In Stock, Qty 20+

0

8

Honda 15721-Z1C-H00

TUBE, BREATHER

$10.99

$

Usually ships in 3-6 days

0

9

Honda 90014-Z5T-000

BOLT, HEAD COVER

$1.49

$

In Stock, only 2 left!

0

10

Honda 90043-ZE8-000

BOLT, STUD (8X134.5)

$7.99

$

Usually ships in 3-6 days

0

11

Honda 90441-ZE2-010

SEE PART DETAILS - PRI; WASHER, HEAD COVER

$6.99

$

In Stock, Qty 19

0

12

Honda 92900-08032-0E

BOLT, STUD (8X32)

$3.49

$

In Stock, Qty 13

0

13

Honda 94301-12200

PIN, DOWEL (12X20)

$3.49

$

In Stock, only 2 left!

0

14

Honda 95701-10080-00

BOLT, FLANGE (10X80)

$4.49

$

In Stock, Qty 13

0

15

Honda 98079-55846

SEE PART DETAILS - PRI; SPARK PLUG (BPR5ES) (NGK)

$3.99

$

In Stock, Qty 20+

0

15

Honda 98079-55855

SEE PART DETAILS - PRI; SPARK PLUG (W16EPR-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
