HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) CRAWLER Parts Diagram

36" Snow Blower, Made in Japan

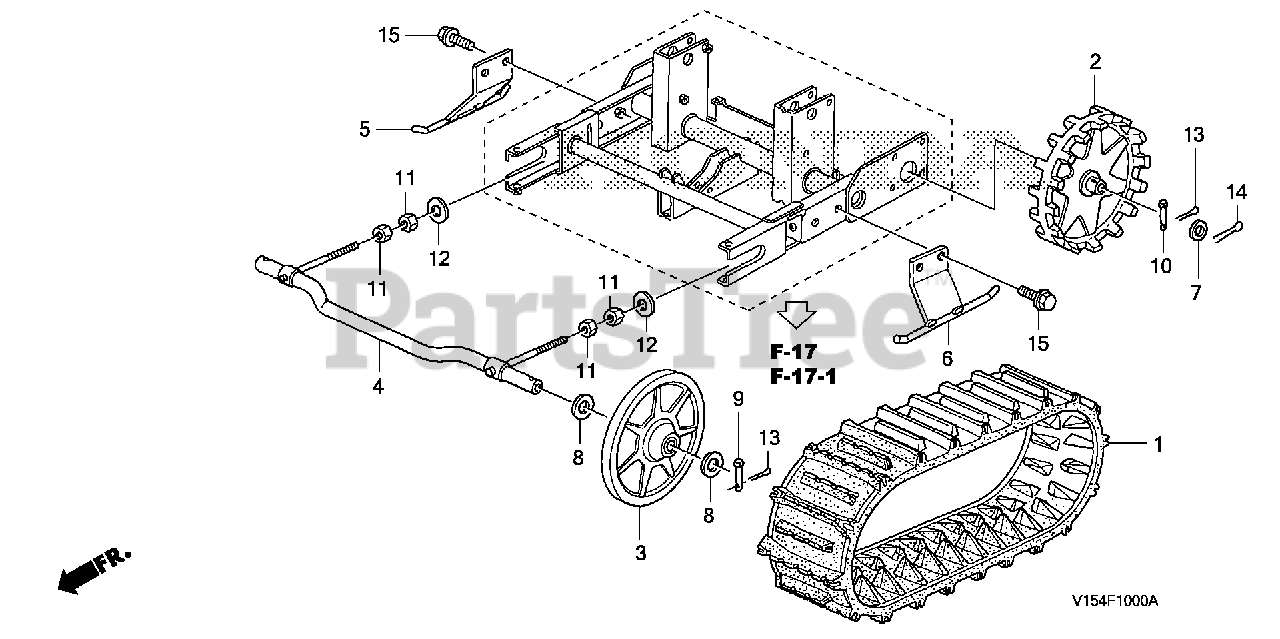

CRAWLER Parts Diagram

  • Title

1

Honda 42755-V15-305

CRAWLER (18-60X30 G-601) (COO)

$377.99

$

Usually ships in 3-6 days

0

2

Honda 42756-V15-F00ZA

SPROCKET, CRAWLER *NH31* (MCKINLEY WHITE)

$115.99

$

Usually ships in 3-6 days

0

3

Honda 42757-V15-305ZA

ROLLER, CRAWLER *NH31* (COO) (MCKINLEY WHITE)
(Superseded to 42757-766-000ZA)

$83.99

$

Usually ships in 3-6 days

0

4

Honda 42770-V15-800

PIPE, CRAWLER

$126.99

$

Usually ships in 3-6 days

0

5

Honda 42772-V15-000

GUIDE, R. CRAWLER

$63.99

$

Usually ships in 3-6 days

0

6

Honda 42773-V15-000

GUIDE, L. CRAWLER

$63.99

$

Usually ships in 3-6 days

0

7

Honda 91864-759-003

WASHER, PLAIN (26MM)

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90505-V15-000

WASHER (29X45X2.3)

$2.99

$

Usually ships in 3-6 days

0

9

Honda 90756-V15-000

PIN, WHEEL

$3.49

$

In Stock, only 3 left!

0

10

Honda 90757-V15-F00

PIN (9X43)

$6.99

$

In Stock, only 3 left!

0

11

Honda 94001-12000-0S

NUT, HEX. (12MM)

$2.49

$

In Stock, only 2 left!

0

12

Honda 94102-12000

WASHER, PLAIN (12MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94201-25300

PIN, SPLIT (2.5X30)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94201-30350

PIN, SPLIT (3.0X35)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 95701-10016-00

BOLT, FLANGE (10X16)

$1.99

$

Usually ships in 3-6 days

0
