HS1336 I A (SBAJ) - Honda 36" Snow Blower, Made in Japan (SN: SBAJ-5000001 - SBAJ-9999999) ALTERNATOR Parts Diagram

36" Snow Blower, Made in Japan

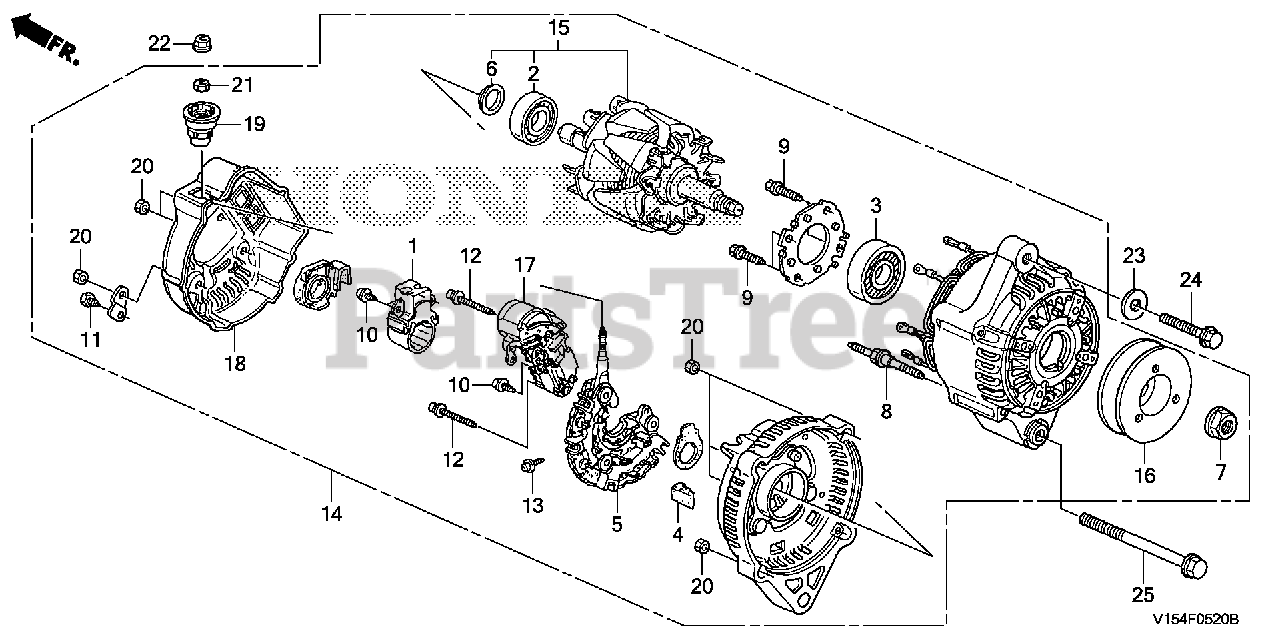

ALTERNATOR Parts Diagram

  • Title
1

Honda 31105-PR7-A01

HOLDER ASSY., BRUSH

$69.99

$

Usually ships in 3-6 days

0

2

Honda 31111-PT0-003

BEARING, RR. GENERATOR

$56.99

$

Usually ships in 3-6 days

0

3

Honda 31114-PT0-013

BEARING, FR. GENERATOR

$56.99

$

Usually ships in 3-6 days

0

4

Honda 31118-PT0-003

BUSH, INSULATION

$11.99

$

Usually ships in 3-6 days

0

5

Honda 31127-PT2-013

RECTIFIER ASSY.

$562.99

$

Usually ships in 3-6 days

0

6

Honda 31138-PD1-004

COVER, BEARING

$13.99

$

Usually ships in 3-6 days

0

7

Honda 31142-PD1-004

NUT, PULLEY LOCK

$10.99

$

Usually ships in 3-6 days

0

8

Honda 31145-PD1-004

BOLT, STUD (6X68)

$11.99

$

Usually ships in 3-6 days

0

$5.49

$

Usually ships in 3-6 days

0

10

Honda 31147-PT0-003

SCREW-WASHER

$4.49

$

Usually ships in 3-6 days

0

$3.49

$

Usually ships in 3-6 days

0

12

Honda 31148-PT0-003

SCREW, WAVE WASHER

$4.49

$

Usually ships in 3-6 days

0

13

Honda 31148-P13-003

SCREW, WAVE WASHER

$3.49

$

Usually ships in 3-6 days

0

14

Honda 31630-V15-013

ALTERNATOR ASSY. (DENSO)

$625.99

$

Usually ships in 3-6 days

0

15

Honda 31631-V15-003

ROTOR ASSY.

$200.99

$

Usually ships in 3-6 days

0

$638.99

$

Usually ships in 3-6 days

0

17

Honda 31634-V15-003

REGULATOR ASSY.

$276.99

$

Usually ships in 3-6 days

0

18

Honda 31639-V15-003

END COVER, RR.

$16.99

$

Usually ships in 3-6 days

0

19

Honda 31644-V15-003

BUSH, INSULATION

$5.49

$

Usually ships in 3-6 days

0

20

Honda 90231-PD1-014

NUT-WASHER (5MM)

$5.99

$

Usually ships in 3-6 days

0

21

Honda 90232-V15-003

NUT, HEX. (6MM)

$5.49

$

Usually ships in 3-6 days

0

22

Honda 94070-06080

NUT-WASHER (6MM)

$1.99

$

Usually ships in 3-6 days

0

23

Honda 94103-08800

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 10

0

24

Honda 95701-08028-00

BOLT, FLANGE (8X28)

$1.99

$

In Stock, Qty 5

0

25

Honda 95701-10075-00

BOLT, FLANGE (10X75)

$3.49

$

Usually ships in 3-6 days

0
