HS1332 TA (SAWJ) - Honda 32" Snow Blower, Made in Japan (SN: SAWJ-5000001 - SAWJ-9999999) CONTROL Parts Diagram

32" Snow Blower, Made in Japan

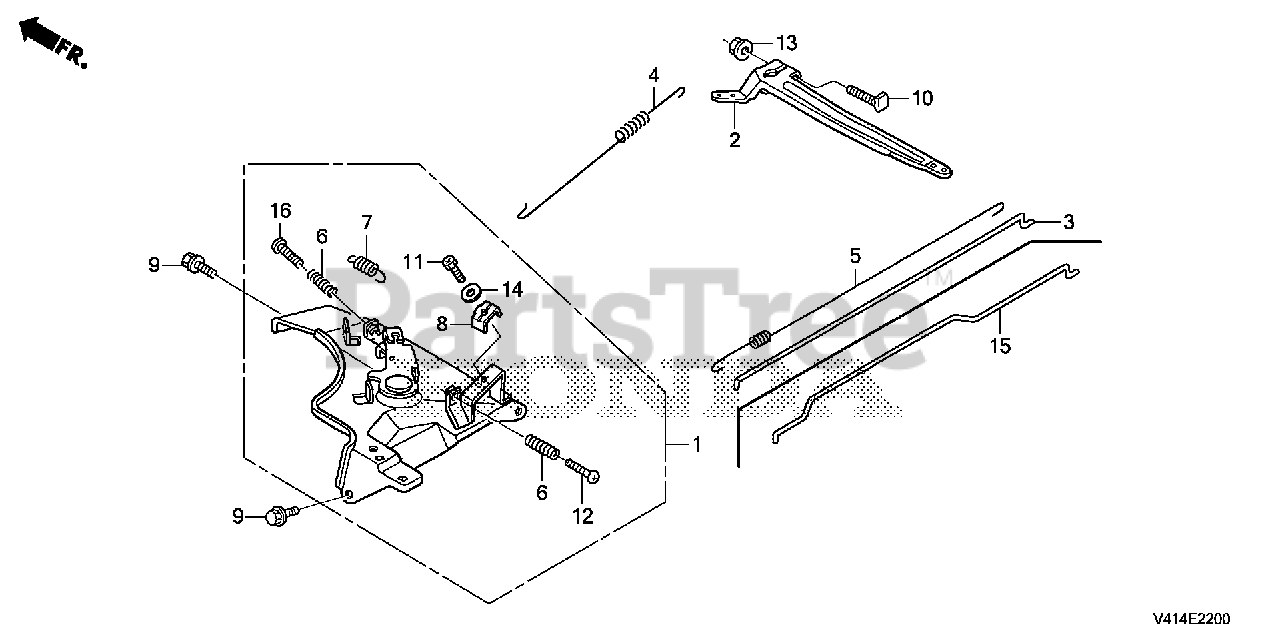

CONTROL Parts Diagram

  • Title

1

Honda 16500-Z1C-H41

SEE PART DETAILS - PRI; CONTROL ASSY.

$33.99

$

Usually ships in 3-6 days

0

1

Honda 16500-Z1C-305

CONTROL ASSY. (COO)

$30.99

$

Usually ships in 3-6 days

0

2

Honda 16551-ZE3-000

ARM, GOVERNOR

$17.99

$

In Stock, only 1 left!

0

3

Honda 16555-ZE3-000

ROD, GOVERNOR

$5.49

$

In Stock, only 1 left!

0

4

Honda 16561-ZE3-000

SPRING, GOVERNOR (L=137.5MM)

$5.99

$

In Stock, only 2 left!

0

5

Honda 16562-ZE3-000

SPRING, THROTTLE RETURN

$4.99

$

In Stock, only 2 left!

0

6

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

$4.99

$

In Stock, Qty 7

0

7

Honda 16593-ZG1-700

SPRING, CONTROL LEVER RETURN

$2.99

$

Usually ships in 3-6 days

0

8

Honda 16617-ZE3-J10

HOLDER, CABLE

$4.99

$

Usually ships in 3-6 days

0

9

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

10

Honda 90015-Z5T-000

BOLT, GOVERNOR ARM

$0.99

$

Usually ships in 3-6 days

0

11

Honda 92301-05022-0A

BOLT, RECESSED (5X22)

$0.99

$

Usually ships in 3-6 days

0

12

Honda 93500-05032-0A

SCREW, PAN (5X32)

$1.49

$

Usually ships in 3-6 days

0

13

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

14

Honda 94103-05000

WASHER, PLAIN (5MM)

$0.99

$

In Stock, only 3 left!

0

16

Honda 93500-05032-0A

SCREW, PAN (5X32)

$1.49

$

Usually ships in 3-6 days

0
