HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) HEADLIGHT Parts Diagram

32" Snow Blower, Made in Japan

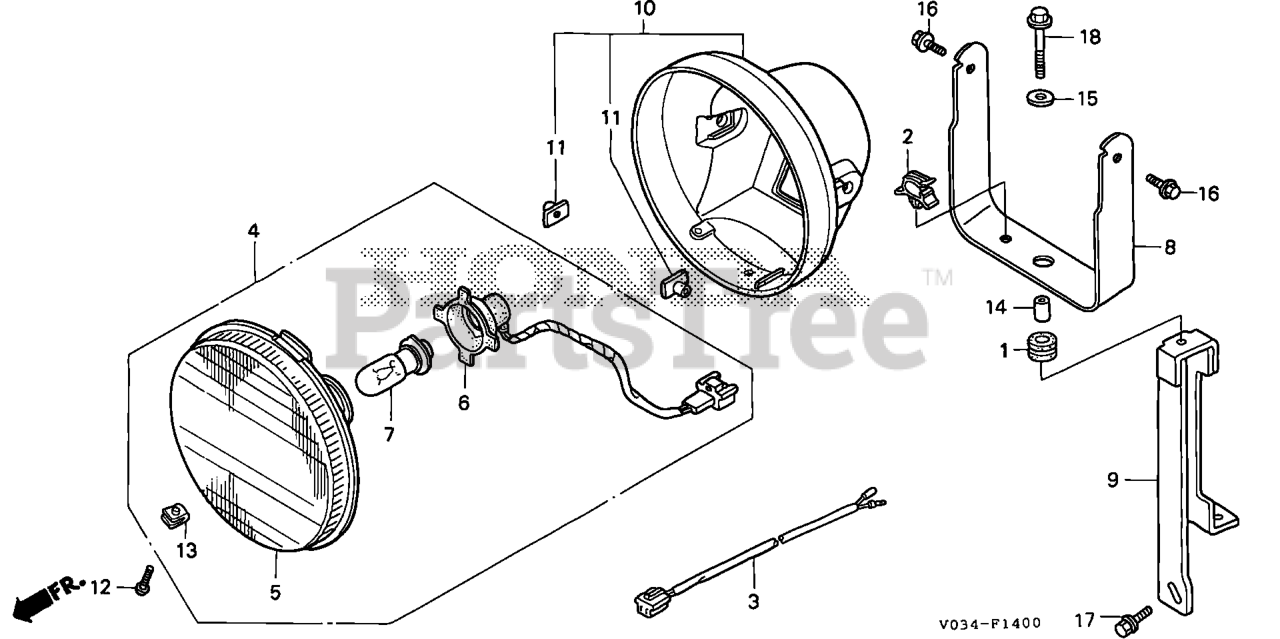

HEADLIGHT Parts Diagram

  • Title

1

Honda 15604-MG7-000

GROMMET, OIL COOLER

$4.99

$

Usually ships in 3-6 days

0

2

Honda 32171-GJ1-003

CLIP, WIRE HARNESS

$5.49

$

Usually ships in 3-6 days

0

3

Honda 32171-767-A40

WIRE ASSY., WORK LIGHT

$15.99

$

Usually ships in 3-6 days

0

4

Honda 33120-766-003

HEADLIGHT ASSY.

$99.99

$

Usually ships in 3-6 days

0

5

Honda 33122-766-003

HEADLIGHT UNIT

$63.99

$

Usually ships in 3-6 days

0

6

Honda 33130-766-003

SOCKET ASSY., HEADLIGHT

$28.99

$

Usually ships in 3-6 days

0

7

Honda 34901-GS9-003

BULB, HEADLIGHT (12V 15/15W)

$15.99

$

In Stock, only 2 left!

0

8

Honda 36201-767-700

BRACKET, HEADLIGHT

$22.99

$

Usually ships in 3-6 days

0

9

Honda 36202-767-C30

STAY, HEADLIGHT

$80.99

$

Usually ships in 3-6 days

0

10

Honda 61301-GS9-003

CASE ASSY., HEADLIGHT

$60.99

$

Usually ships in 3-6 days

0

11

Honda 61304-958-003

NUT, SPECIAL (6X7)

$4.49

$

In Stock, Qty 5

0

12

Honda 90102-GB2-720

SEE PART DETAILS - PRI; SCREW, PAN (5X16)

$2.99

$

Usually ships in 3-6 days

0

13

Honda 90320-GC3-000

NUT, SPRING (5MM)

$2.99

$

In Stock, only 2 left!

0

14

Honda 90324-303-000

COLLAR, RR. TURN SIGNAL MOUNTING

$6.49

$

Usually ships in 3-6 days

0

15

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

16

Honda 95701-06012-07

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 18

0

17

Honda 95701-06016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X16) Use from Engine SN 2056820.

$2.49

$

In Stock, only 1 left!

0

18

Honda 95701-08030-00

BOLT, FLANGE (8X30)

$1.49

$

Usually ships in 3-6 days

0
