HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) CRAWLER Parts Diagram

32" Snow Blower, Made in Japan

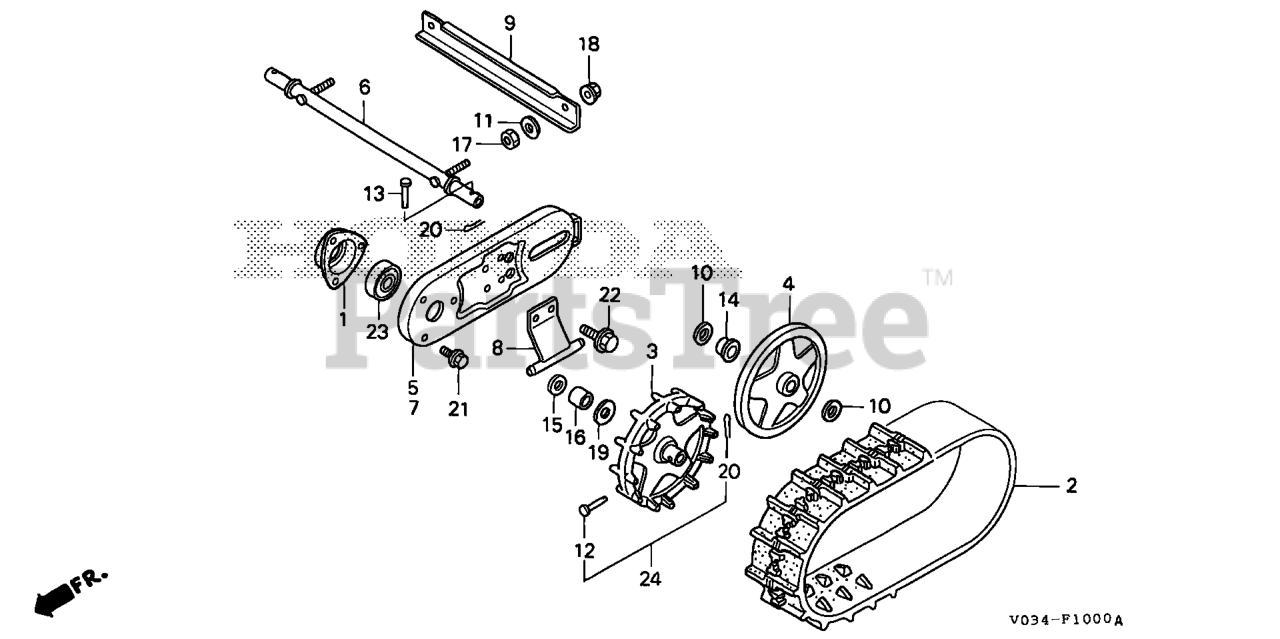

CRAWLER Parts Diagram

  • Title

1

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$24.99

$

In Stock, only 2 left!

0

2

Honda 42755-768-013

SEE PART DETAILS - SUP; CRAWLER (12-60X21)
(Superseded to 42755-V41-305)

$

$

Not available

3

Honda 42756-768-000

SPROCKET, CRAWLER

$120.99

$

In Stock, only 1 left!

0

4

Honda 42757-768-000

ROLLER, CRAWLER

$72.99

$

In Stock, only 2 left!

0

5

Honda 42761-768-000

PLATE, R. CRAWLER

$175.99

$

Usually ships in 3-6 days

0

6

Honda 42770-768-010

SEE PART DETAILS - PRI; PIPE, CRAWLER

$117.99

$

In Stock, only 1 left!

0

7

Honda 42771-768-000

PLATE, L. CRAWLER

$175.99

$

In Stock, only 1 left!

0

8

Honda 42772-768-000

GUIDE, CRAWLER

$33.99

$

Usually ships in 3-6 days

0

9

Honda 42774-768-000

BAR, CRAWLER PLATE

$59.99

$

Usually ships in 3-6 days

0

10

Honda 90403-952-770

WASHER, PLAIN (22MM)

$3.49

$

In Stock, only 3 left!

0

11

Honda 90503-819-000

WASHER, PLAIN (10MM)

$2.99

$

In Stock, only 1 left!

0

12

Honda 90701-732-000

PIN (6.2X38)

$5.99

$

In Stock, Qty 20+

0

13

Honda 90702-743-000

PIN (6MM)

$4.49

$

In Stock, Qty 20+

0

14

Honda 91553-768-000

COLLAR, CRAWLER PIPE

$15.99

$

In Stock, only 2 left!

0

15

Honda 91555-767-000

COLLAR, R. WHEEL SHAFT

$4.49

$

Usually ships in 3-6 days

0

16

Honda 91559-767-000

COLLAR, CRAWLER SPROCKET

$6.49

$

In Stock, only 2 left!

0

17

Honda 90002-S10-000

NUT, FLANGE (10MM)

Note: Use from Frame SN 1005688.

$5.99

$

Usually ships in 3-6 days

0

17

Honda 94030-10200

NUT, HEX. (10MM)

Note: Use up to Frame SN 1005687.

$1.49

$

In Stock, only 1 left!

0

18

Honda 94050-10000

SEE PART DETAILS - PRI; NUT, FLANGE (10MM) (Honda Code 0483867).

$1.99

$

In Stock, Qty 5

0

19

Honda 94101-20000

WASHER, PLAIN (20MM)

$1.99

$

In Stock, only 1 left!

0

20

Honda 94201-30180

PIN, COTTER (3.0X18)

$1.49

$

In Stock, Qty 17

0

21

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

$2.49

$

In Stock, Qty 20+

0

22

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

23

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$24.99

$

In Stock, Qty 9

0

24

Honda 06907-732-000

PIN SET, CRAWLER

Note: (Optional)

$5.99

$

In Stock, Qty 20+

0
