HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) CARBURETOR Parts Diagram

32" Snow Blower, Made in Japan

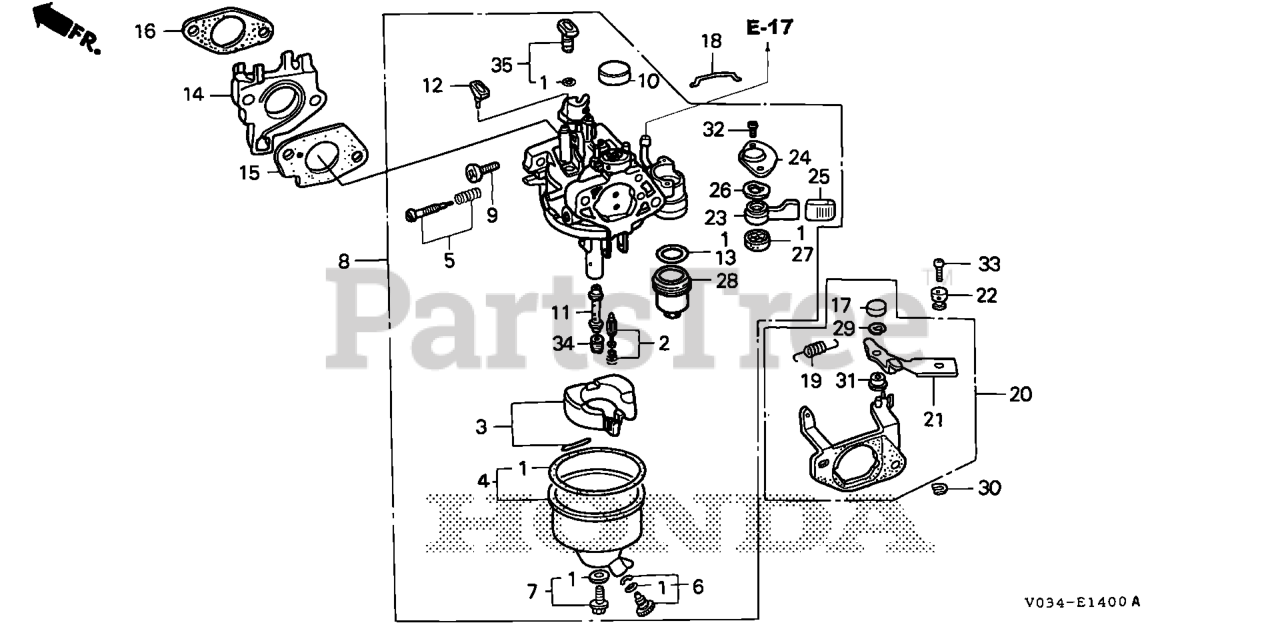

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-A20

GASKET SET (CARBURETOR NO.)

$19.99

$

Usually ships in 3-6 days

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT (Honda Code 2059236).

$43.99

$

Usually ships in 3-6 days

0

3

Honda 16013-ZA0-931

FLOAT SET (Honda Code 2059244).

$49.99

$

Usually ships in 3-6 days

0

4

Honda 16015-ZE2-A20

CHAMBER SET, FLOAT (CARBURETOR NO.)

$53.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SEE PART DETAILS - PRI; SCREW SET (Honda Code 4219879). (CARBURETOR NO.)

$20.99

$

In Stock, only 2 left!

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN (CARBURETOR NO.)

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - PRI; SCREW SET B (Honda Code 1441518).
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE3-H61

CARBURETOR ASSY. (BE80E A)

$108.99

$

In Stock, only 1 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE LEVER DUST (Honda Code 2110468).

$6.49

$

In Stock, only 1 left!

0

11

Honda 16166-ZE3-H61

NOZZLE, MAIN

$25.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SET (Honda Code 3738358).

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP (Honda Code 0005652).

$7.49

$

In Stock, Qty 8

0

14

Honda 16211-ZE3-000

INSULATOR, CARBURETOR (Honda Code 2107886).

$19.99

$

In Stock, only 1 left!

0

15

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR (Honda Code 3795358).

$2.99

$

In Stock, Qty 20+

0

16

Honda 16223-ZE3-W00

GASKET, INSULATOR Use up to Engine SN 2949254.

$2.99

$

In Stock, Qty 7

0

17

Honda 16252-ZA1-010

SEE PART DETAILS - PRI; CAP, CHOKE LEVER

$1.99

$

In Stock, only 2 left!

0

18

Honda 16264-ZE2-780

ROD, CHOKE

$2.49

$

In Stock, Qty 5

0

19

Honda 16562-896-000

SPRING, THROTTLE RETURN

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16590-ZE2-772

STAY ASSY., CHOKE CONTROL (REMOTE)

$33.99

$

Usually ships in 3-6 days

0

21

Honda 16610-ZE2-780

LEVER, CHOKE

$5.99

$

Usually ships in 3-6 days

0

22

Honda 16617-ZE3-H00

HOLDER, WIRE

$5.99

$

Usually ships in 3-6 days

0

23

Honda 16953-ZE1-712

LEVER, VALVE (Honda Code 5266069).

$10.99

$

Usually ships in 3-6 days

0

24

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

25

Honda 16955-ZE2-H21

CAP, LEVER

$11.99

$

Usually ships in 3-6 days

0

26

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$3.99

$

In Stock, only 1 left!

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 7

0

28

Honda 16967-ZE0-811

CUP, FUEL STRAINER (Honda Code 1441583).

$22.99

$

In Stock, only 1 left!

0

29

Honda 38689-680-960

E-RING (4MM)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 90605-230-000

CIRCLIP (5MM) Use from Engine SN 2327377.

$3.99

$

In Stock, only 3 left!

0

31

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

$3.49

$

Usually ships in 3-6 days

0

32

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

$1.49

$

In Stock, Qty 5

0

33

Honda 93500-04006-0H

SEE PART DETAILS - PRI; SCREW, PAN (4X6) (Honda Code 0285627).

$1.49

$

In Stock, Qty 8

0

34

Honda 99101-ZF5-0950

JET, MAIN (#95) Use up to Engine SN BE37B A.

Note: (Optional)

$10.99

$

In Stock, only 2 left!

0

34

Honda 99101-ZF5-0980

JET, MAIN (#98) Use up to Engine SN BE50A A.

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH7-0920

JET, MAIN (#92) (CARBURETOR NO.)

Note: (Optional)

$8.49

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH7-0950

JET, MAIN (#95) (CARBURETOR NO.)

Note: (Optional)

$7.49

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH7-0980

JET, MAIN (#98) (CARBURETOR NO.)

$7.49

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH8-0980

JET, MAIN (#98) Use from Engine SN BE87A A to BE87A A.

$7.49

$

In Stock, only 1 left!

0

35

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$22.99

$

In Stock, only 1 left!

0
