HS1132 TAS (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) AIR CLEANER Parts Diagram
32" Snow Blower, Made in Japan

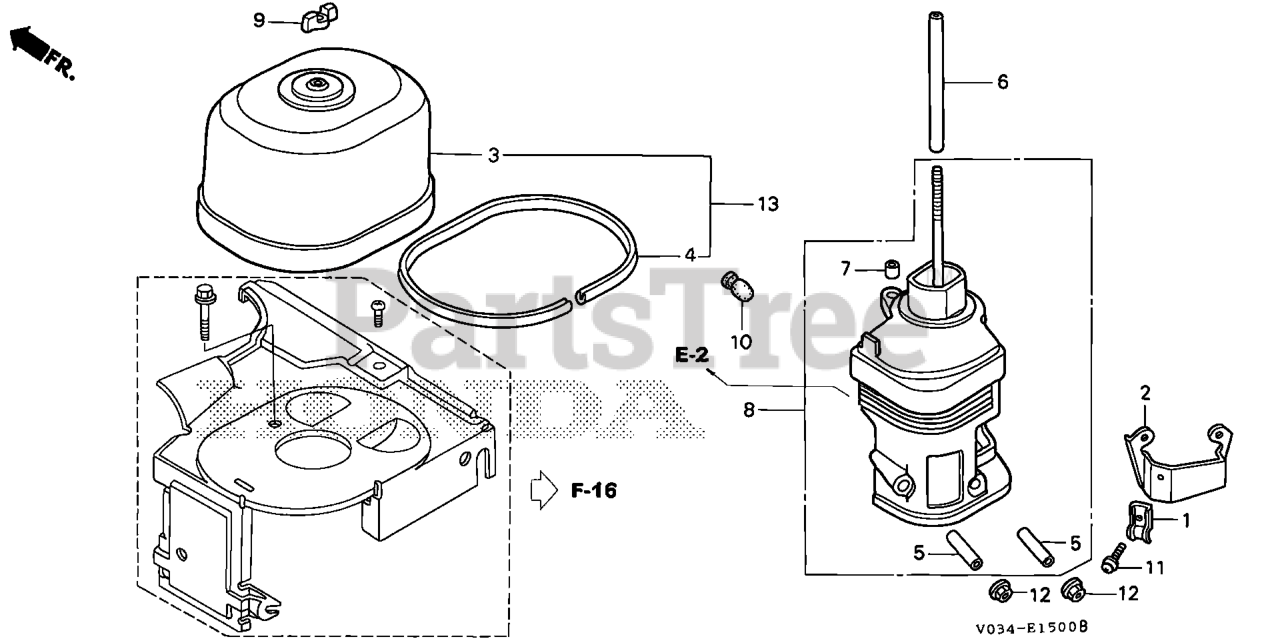

AIR CLEANER Parts Diagram
Honda 16582-883-300
HOLDER, CONTROL CABLE Use from Engine SN 2327377.
$4.49
$
In Stock, only 1 left!
Honda 16597-ZE2-780
STAY, WIRE HOLDER
$10.99
$
Usually ships in 3-6 days
Honda 17230-ZE3-000
COVER, AIR CLEANER (STD) (Honda Code 2108009).
$35.99
$
In Stock, only 1 left!
Honda 17233-ZE3-H60
RUBBER, AIR CLEANER COVER
$13.99
$
Usually ships in 3-6 days
Honda 17238-ZE2-310
SEE PART DETAILS - PRI; COLLAR, AIR CLEANER (Honda Code 2384105).
$4.99
$
In Stock, Qty 10
Honda 17238-ZE3-H00
COLLAR, AIR CLEANER
$13.99
$
In Stock, only 1 left!
Honda 17239-ZE1-000
COLLAR B, AIR CLEANER (Honda Code 1427533).
$4.99
$
In Stock, Qty 7
Honda 17410-ZE3-020
SEE PART DETAILS - PRI; ELBOW, AIR CLEANER
$48.99
$
Usually ships in 3-6 days
Honda 90325-044-000
SEE PART DETAILS - PRI; WINGNUT, TOOL BOX SETTING (Honda Code 0127720).
$5.49
$
In Stock, Qty 20+
Honda 90899-422-610
PLUG, CONE TYPE
$2.49
$
Usually ships in 3-6 days
Honda 93892-05016-00
SCREW-WASHER (5X16)
$0.99
$
Usually ships in 3-6 days
Honda 94050-06000
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).
$0.99
$
In Stock, Qty 20+
Honda 17230-ZE3-H50
COVER, AIR CLEANER
$58.99
$
Usually ships in 3-6 days
