HS1132 TAS/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) CYLINDER Parts Diagram

32" Snow Blower, Made in Japan

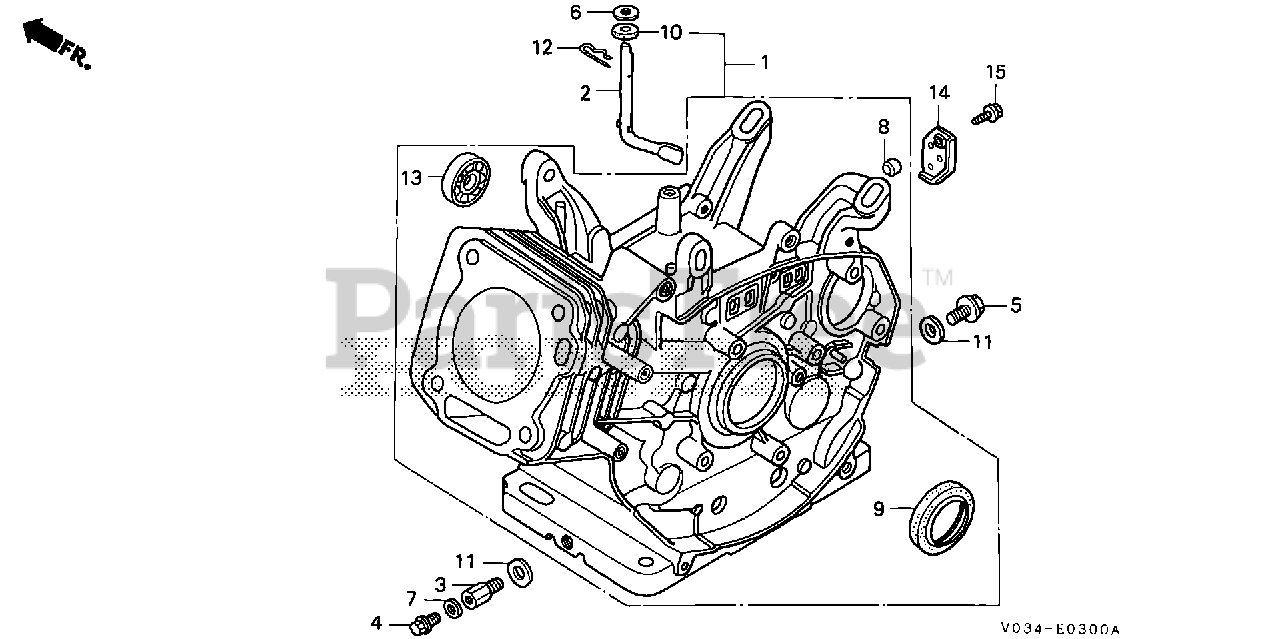

CYLINDER Parts Diagram

  • Title

1

Honda 12000-ZE3-418

CYLINDER ASSY. (SELF STARTER)

$885.99

$

Usually ships in 3-6 days

0

2

Honda 16541-ZE3-010

SHAFT, GOVERNOR ARM

$17.99

$

In Stock, only 1 left!

0

3

Honda 19526-ZE3-H60

EXTENSION, OIL DRAIN

$14.99

$

Usually ships in 3-6 days

0

4

Honda 90131-ZE1-000

BOLT, DRAIN PLUG

$3.49

$

In Stock, only 1 left!

0

5

Honda 90131-896-650

BOLT, DRAIN PLUG (12X15)

$4.99

$

In Stock, only 2 left!

0

6

Honda 90446-KE1-000

WASHER (8.2X17X0.8)

$2.49

$

In Stock, only 1 left!

0

7

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

8

Honda 90801-ZE2-003

PLUG, SEALING (RUBBER 10MM)

$4.49

$

Usually ships in 3-6 days

0

8

Honda 90801-ZE2-003

PLUG, SEALING (RUBBER 10MM)

Note: Use up to Engine SN 3989445.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 9

0

10

Honda 91201-ZE9-003

SEE PART DETAILS - PRI; OIL SEAL (8X14X5)

$5.49

$

In Stock, Qty 11

0

10

Honda 91203-952-771

SEE PART DETAILS - SUP; OIL SEAL (8X14X5)
(Superseded to 91201-ZE9-003)

$5.49

$

In Stock, Qty 11

0

11

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 4 left!

0

12

Honda 94251-10000

PIN, LOCK (10MM)

$1.99

$

In Stock, Qty 5

0

13

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0
