HS1132 TAS/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) AUGER HOUSING Parts Diagram

32" Snow Blower, Made in Japan

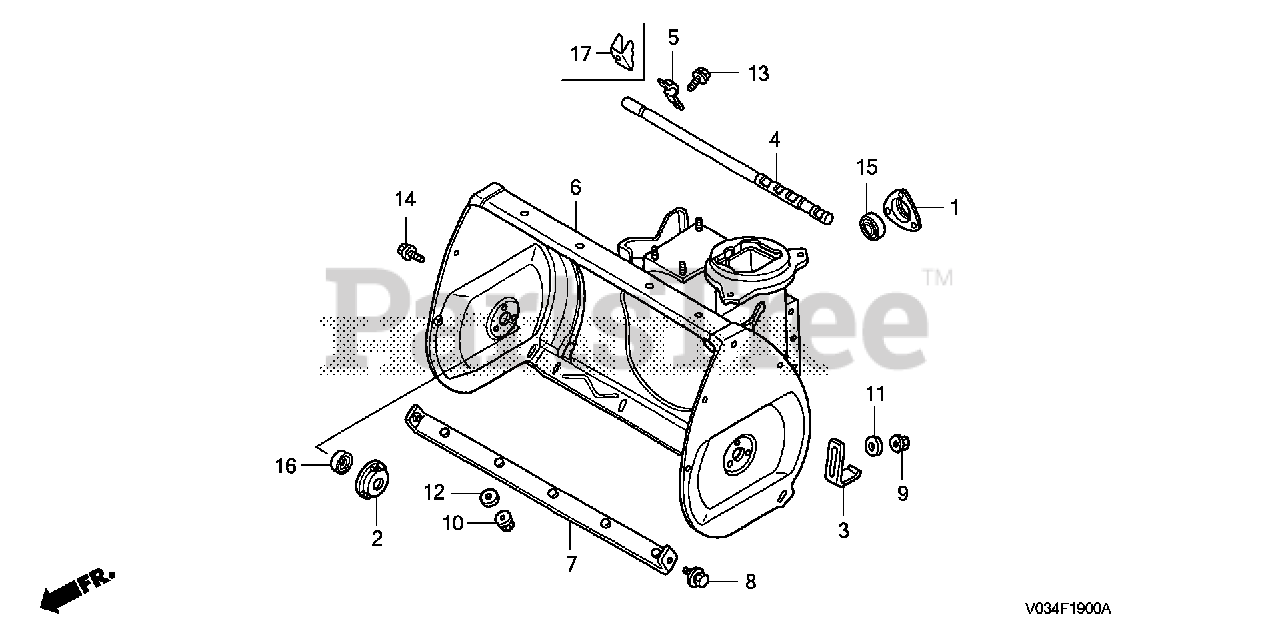

AUGER HOUSING Parts Diagram

  • Title

1

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$22.99

$

In Stock, only 4 left!

0

2

Honda 73256-732-000

HOLDER, AUGER BEARING

$22.99

$

In Stock, only 2 left!

0

3

Honda 76153-743-611

SEE PART DETAILS - PRI; SKID, AUGER

$34.99

$

In Stock, Qty 14

0

4

Honda 76211-743-000

BAR, SNOW DROP

$45.99

$

In Stock, only 2 left!

0

5

Honda 76212-738-E00

BRACKET, SNOW DROP BAR

$5.49

$

Usually ships in 3-6 days

0

6

Honda 76710-V03-020

HOUSING, AUGER

$1660.99

$

Usually ships in 3-6 days

0

7

Honda 76713-V03-000

GUARD, AUGER HOUSING

$84.99

$

In Stock, only 2 left!

0

8

Honda 93404-08016-00

BOLT-WASHER (8X16)

$1.99

$

In Stock, only 2 left!

0

9

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

10

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

11

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

12

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

$3.49

$

In Stock, only 1 left!

0

13

Honda 95701-06008-00

BOLT, FLANGE (6X8)

Note: Use up to Frame SN 1031231.

$3.49

$

In Stock, only 1 left!

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: Use from Frame SN 1031232.

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-06010-00

BOLT, FLANGE (6X10)

Note: Use from Frame SN 1014809.

$1.99

$

In Stock, Qty 13

0

14

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-06012-00

BOLT, FLANGE (6X12)

Note: Use up to Frame SN 1014808.

$2.49

$

In Stock, Qty 20+

0

15

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$23.99

$

In Stock, Qty 7

0

16

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

Usually ships in 3-6 days

0

17

Honda 76722-768-P00

PLATE, SNOW DROP BAR

Note: Use from Frame SN 1031232.

$6.49

$

Usually ships in 3-6 days

0
