HS1132 TA (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) TOOLS Parts Diagram

32" Snow Blower, Made in Japan

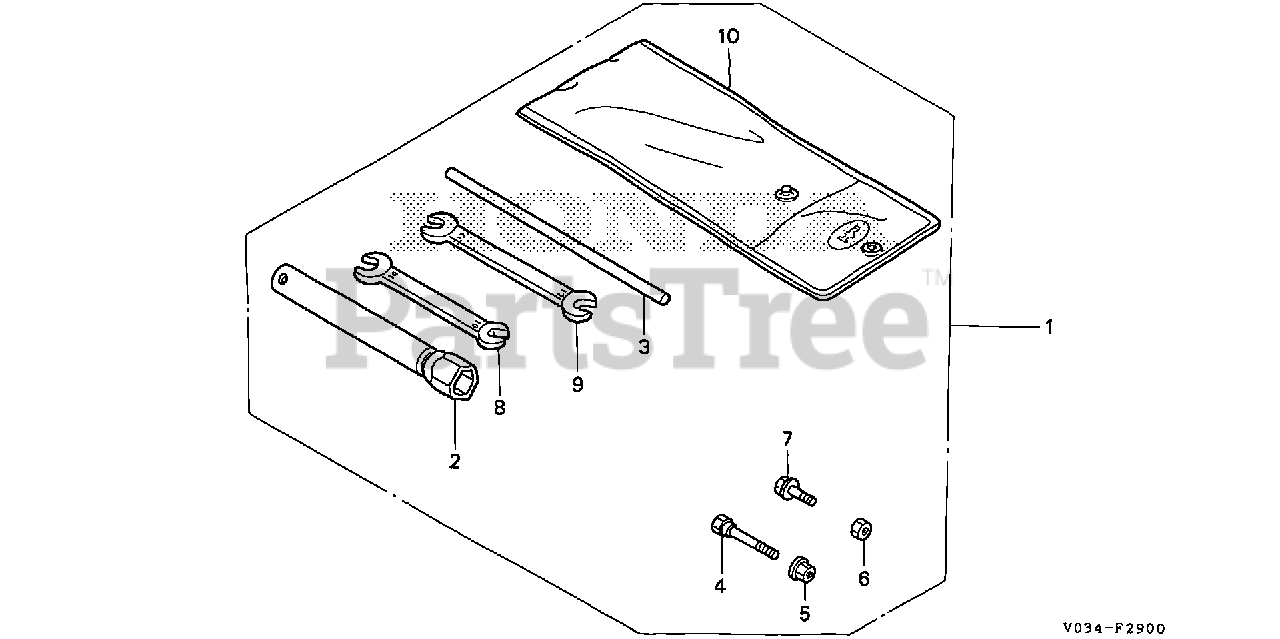

TOOLS Parts Diagram

  • Title

1

Honda 89000-V03-000

TOOL KIT

Note: Use up to Frame SN 1004670.

$

$

Currently unavailable

1

Honda 89000-V03-010

TOOL KIT (NOT AVAILABLE)

Note: Use from Frame SN 1004671.

$

$

Not available

2

Honda 89216-809-000

WRENCH, SPARK PLUG

$8.99

$

Usually ships in 3-6 days

0

3

Honda 89219-805-000

HANDLE, BOX WRENCH

$3.99

$

Usually ships in 3-6 days

0

4

Honda 90102-732-010

SEE PART DETAILS - PRI; BOLT, LOCK

$6.49

$

In Stock, Qty 20+

0

5

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: Use up to Frame SN 1004670.

$4.49

$

Usually ships in 3-6 days

0

5

Honda 90114-SA0-000

NUT, SELF-LOCK (6MM)

Note: Use from Frame SN 1004671.

$4.49

$

Usually ships in 3-6 days

0

6

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

Note: Use up to Frame SN 1004670.

$1.99

$

In Stock, Qty 20+

0

6

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

Note: Use up to Frame SN 1004670.

$1.99

$

In Stock, Qty 20+

0

7

Honda 92101-06016-0A

BOLT, HEX. (6X16)

Note: Use from Frame SN 1004671.

$1.99

$

In Stock, Qty 20+

0

7

Honda 95701-06016-00

BOLT, FLANGE (6X16)

Note: Use up to Frame SN 1004670.

$2.49

$

In Stock, only 3 left!

0

8

Honda 99001-10140

SPANNER (10X14)

$4.99

$

Usually ships in 3-6 days

0

9

Honda 99001-12170

SPANNER (12X17)

$10.99

$

Usually ships in 3-6 days

0

10

Honda 89101-ME5-670

BAG, TOOL

$8.99

$

In Stock, only 1 left!

0
