HS1132 TA (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1000001 - SZBF-1009999) CRANKCASE COVER Parts Diagram

32" Snow Blower, Made in Japan

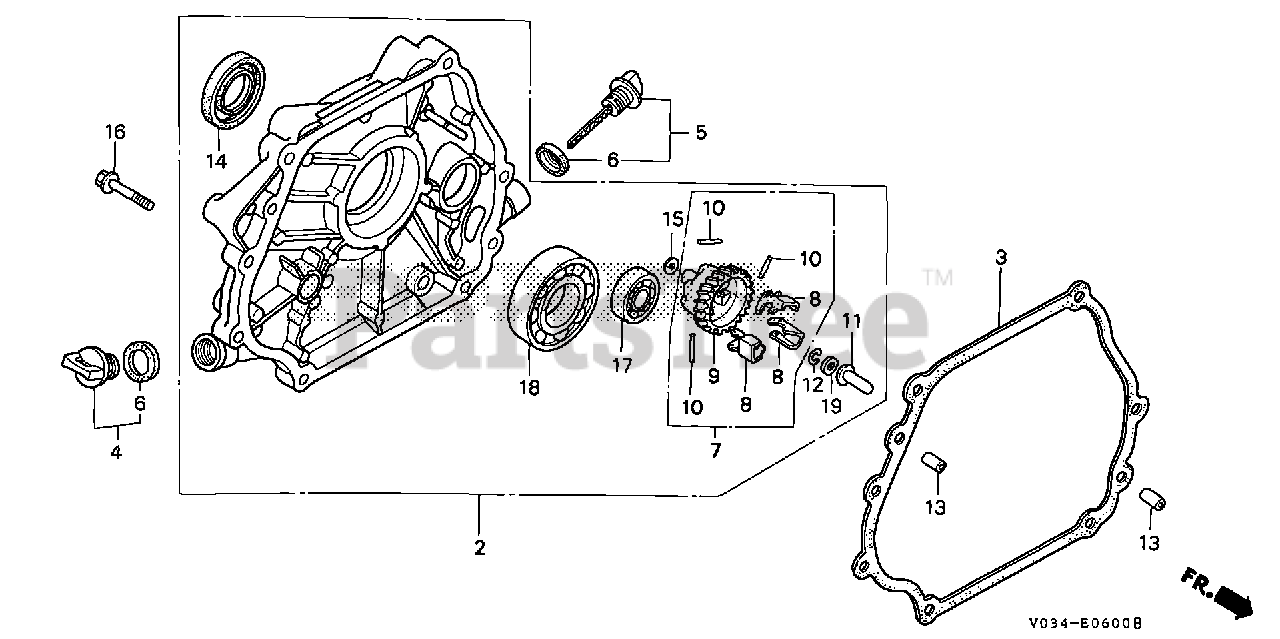

CRANKCASE COVER Parts Diagram

  • Title
2

Honda 11300-ZE3-020

SEE PART DETAILS - SUP; COVER ASSY., CRANKCASE
(Superseded to 11300-Z1C-000)

Note: Use up to Engine SN 3460754.

$357.99

$

Usually ships in 3-6 days

0

2

Honda 11300-Z1C-000

SEE PART DETAILS - PRI; COVER ASSY., CRANKCASE

$357.99

$

Usually ships in 3-6 days

0

3

Honda 11381-ZE3-800

SEE PART DETAILS - PRI; GASKET, CASE COVER
(Superseded to 11381-ZE3-801)

Note: Use up to Engine SN 3279758.

$13.99

$

In Stock, only 1 left!

0

3

Honda 11381-ZE3-801

GASKET, CASE COVER

Note: Use from Engine SN 3279759.

$13.99

$

In Stock, only 1 left!

0

4

Honda 15600-ZG4-003

CAP ASSY., OIL FILLER

$6.99

$

In Stock, only 1 left!

0

5

Honda 15600-735-003

CAP ASSY., OIL FILLER

$8.49

$

In Stock, only 1 left!

0

6

Honda 15625-ZE1-003

GASKET, OIL FILLER CAP

$3.49

$

In Stock, only 2 left!

0

7

Honda 16510-ZE3-000

GOVERNOR ASSY.

$31.99

$

In Stock, only 1 left!

0

8

Honda 16511-ZE8-000

WEIGHT, GOVERNOR

$7.99

$

Usually ships in 3-6 days

0

9

Honda 16512-ZE3-000

HOLDER, GOVERNOR WEIGHT

$18.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE2-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-Z0A-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

Note: Use from Engine SN 3460755.

$3.99

$

In Stock, Qty 5

0

12

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, Qty 7

0

13

Honda 90701-HC4-000

PIN, DOWEL (8X12)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 91201-ZE3-004

OIL SEAL (35X52X8)

$10.99

$

In Stock, Qty 9

0

15

Honda 94101-06800

WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 5

0

16

Honda 95701-08040-00

BOLT, FLANGE (8X40)

$1.99

$

In Stock, Qty 6

0

17

Honda 96100-62020-00

BEARING, RADIAL BALL (6202)

$12.99

$

In Stock, only 1 left!

0

18

Honda 96100-62070-00

BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

19

Honda 90473-147-000

WASHER (6X16)

Note: Use from Engine SN 3460755.

$1.99

$

In Stock, only 2 left!

0
