HS1132 TA/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) ENGINE BED Parts Diagram

32" Snow Blower, Made in Japan

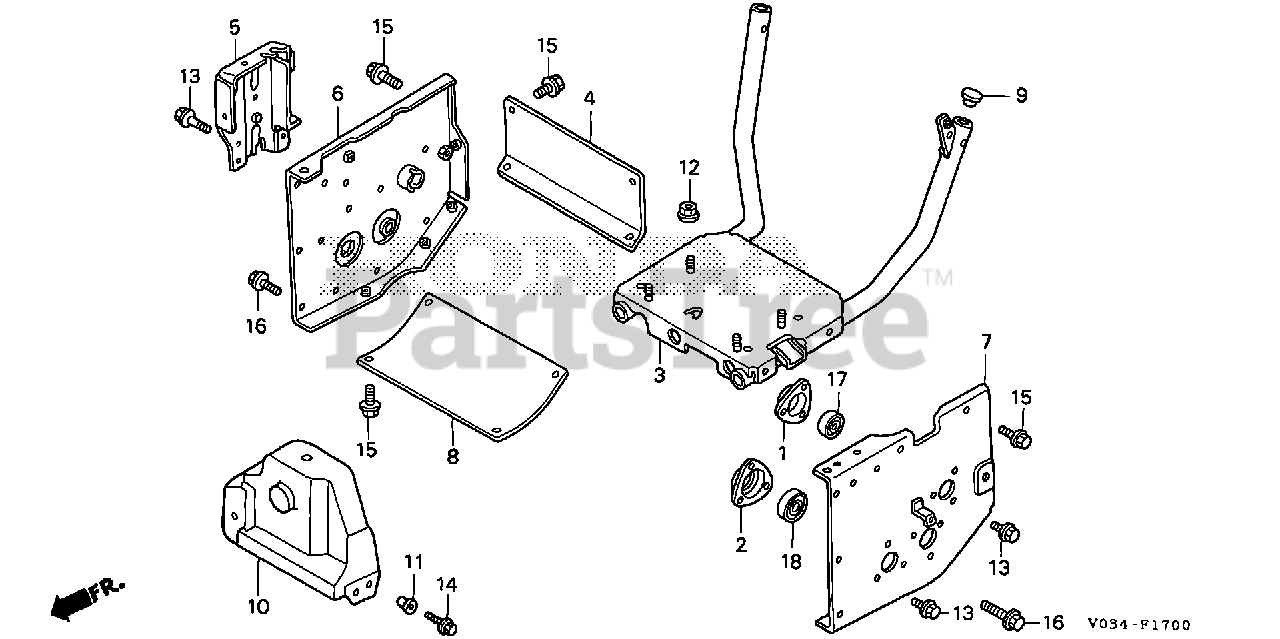

ENGINE BED Parts Diagram

  • Title

1

Honda 23384-767-000

HOLDER, BEARING

$18.99

$

Usually ships in 3-6 days

0

2

Honda 42316-767-000

HOLDER, WHEEL SHAFT BEARING

$24.99

$

In Stock, only 2 left!

0

3

Honda 51110-V03-010

BED, ENGINE

$411.99

$

Usually ships in 3-6 days

0

4

Honda 51113-767-A10

STAY, ENGINE BED

$45.99

$

Usually ships in 3-6 days

0

5

Honda 51125-768-000

HOLDER, WIRE

$81.99

$

Usually ships in 3-6 days

0

6

Honda 51170-767-A10

STAY, R. ENGINE BED

$137.99

$

Usually ships in 3-6 days

0

7

Honda 51180-767-000

STAY, L. ENGINE BED

$140.99

$

Usually ships in 3-6 days

0

8

Honda 51181-767-000

STAY, ENGINE BED (B)

$54.99

$

In Stock, only 2 left!

0

9

Honda 53115-732-000

CAP, HANDLE (LOWER)

$4.99

$

Usually ships in 3-6 days

0

10

Honda 63610-768-030

COVER, BELT

$44.99

$

Usually ships in 3-6 days

0

11

Honda 90522-028-000

WASHER, CHAIN CASE SETTING

$3.99

$

In Stock, only 4 left!

0

12

Honda 94050-10000

NUT, FLANGE (10MM)

$1.99

$

In Stock, Qty 5

0

13

Honda 95701-06012-00

BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

14

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 8

0

15

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.49

$

In Stock, only 2 left!

0

16

Honda 95701-08016-00

BOLT, FLANGE (8X16)

$2.49

$

In Stock, Qty 20+

0

17

Honda 96150-60040-10

BEARING, RADIAL BALL (6004UU)

$24.99

$

In Stock, Qty 9

0

18

Honda 96150-62010-10

BEARING, RADIAL BALL (6201UU)

$17.99

$

Usually ships in 3-6 days

0
