HS1132 TA/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) CHUTER Parts Diagram

32" Snow Blower, Made in Japan

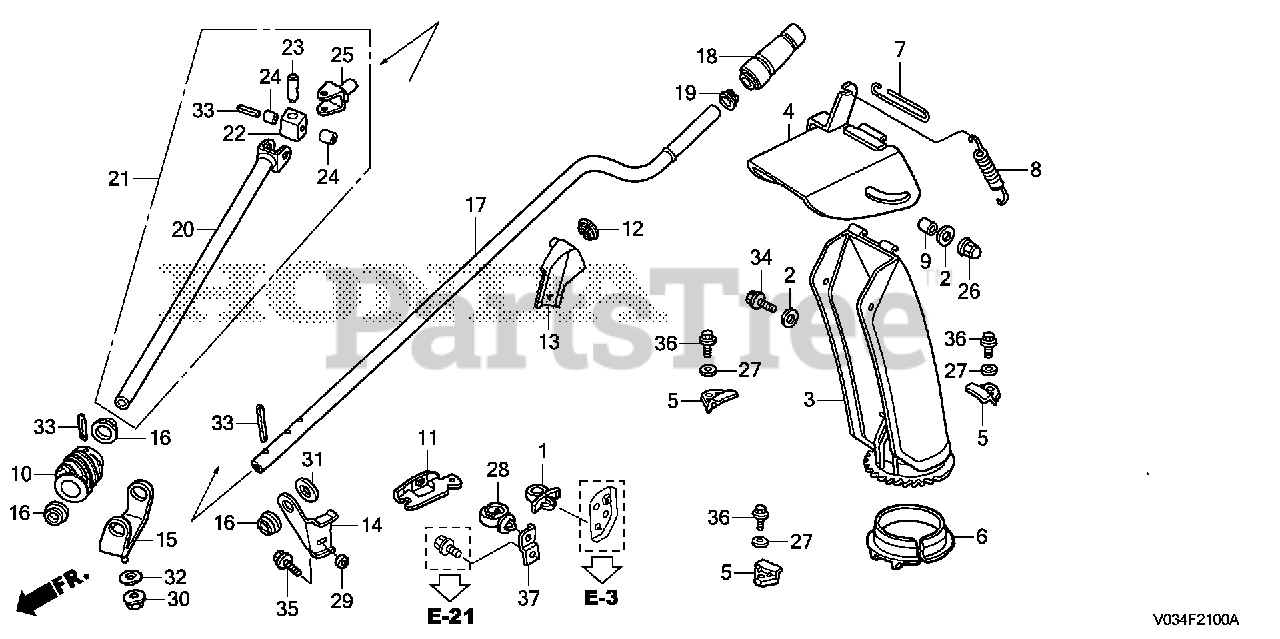

CHUTER Parts Diagram

  • Title

1

Honda 17706-SC3-003

CLIP, FUEL PIPE

$2.99

$

Usually ships in 3-6 days

0

2

Honda 17812-SA7-010

WASHER, ACCELERATOR PEDAL

$5.49

$

In Stock, only 1 left!

0

3

Honda 76310-768-010

CHUTE

$183.99

$

Usually ships in 3-6 days

0

4

Honda 76320-V41-305

GUIDE, CHUTE (COO)
(Superseded to 76320-V04-W00)

$73.99

$

Usually ships in 3-6 days

0

5

Honda 76321-767-A10

PLATE, CHUTE SETTING

$13.99

$

In Stock, Qty 5

0

6

Honda 76325-738-E00

BUSH, CHUTE

$30.99

$

In Stock, only 2 left!

0

7

Honda 76326-738-E00

PIN, CHUTE GUIDE

$8.49

$

In Stock, only 1 left!

0

8

Honda 76328-738-E00

SPRING, CHUTE

$7.99

$

In Stock, only 2 left!

0

9

Honda 76329-738-E00

COLLAR, CHUTE GUIDE

$3.49

$

In Stock, only 4 left!

0

10

Honda 76331-730-000

GEAR, CHUTE DRIVE

$76.99

$

Usually ships in 3-6 days

0

11

Honda 76335-V03-000

HOLDER, HANDLE BRACKET

$25.99

$

Usually ships in 3-6 days

0

12

Honda 76336-730-000

BUSH, CHUTE HANDLE

$6.99

$

Usually ships in 3-6 days

0

13

Honda 76337-736-811

BRACKET A, CHUTE HANDLE

$13.99

$

Usually ships in 3-6 days

0

14

Honda 76338-V03-000

BRACKET B, CHUTE HANDLE

$10.99

$

Usually ships in 3-6 days

0

15

Honda 76341-767-A10

STAY, DRIVE GEAR

$19.99

$

Usually ships in 3-6 days

0

16

Honda 76343-732-000

BUSH, DRIVE GEAR

$6.49

$

Usually ships in 3-6 days

0

17

Honda 76350-767-C30

HANDLE, CHUTE (UPPER)

$87.99

$

In Stock, only 2 left!

0

18

Honda 76351-730-000

GRIP, CHUTE HANDLE

$13.99

$

In Stock, only 2 left!

0

19

Honda 76352-730-000

BUSH A, CHUTE HANDLE

$6.99

$

In Stock, Qty 10

0

20

Honda 76355-738-E00

HANDLE, CHUTE (LOWER)

$19.99

$

Usually ships in 3-6 days

0

21

Honda 76360-738-E00

HANDLE, CHUTE (LOWER)

$55.99

$

Usually ships in 3-6 days

0

22

Honda 76361-736-000

PIECE, JOINT

$13.99

$

In Stock, only 1 left!

0

23

Honda 76362-736-000

PIN A, JOINT

$6.49

$

Usually ships in 3-6 days

0

24

Honda 76363-736-000

PIN B, JOINT

$4.49

$

Usually ships in 3-6 days

0

25

Honda 76365-736-000

BODY

$11.99

$

Usually ships in 3-6 days

0

26

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

In Stock, Qty 7

0

27

Honda 90412-738-E00

WASHER, CHUTE SETTING

$2.99

$

In Stock, Qty 9

0

29

Honda 91502-ZE2-M90

COLLAR (6.6X13.8X6)

$10.99

$

Usually ships in 3-6 days

0

30

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

31

Honda 94102-16000

WASHER, PLAIN (16MM)

$1.49

$

In Stock, only 2 left!

0

32

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0

33

Honda 94305-40282

PIN, SPRING (4X28)

$2.99

$

In Stock, only 3 left!

0

34

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, only 4 left!

0

35

Honda 95701-06018-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X18)

$2.49

$

In Stock, Qty 5

0

36

Honda 95701-08012-00

BOLT, FLANGE (8X12)

$1.99

$

In Stock, only 2 left!

0
