HS1132 TA/A (SZBF) - Honda 32" Snow Blower, Made in Japan (SN: SZBF-1010001 - SZBF-9999999) CARBURETOR Parts Diagram

32" Snow Blower, Made in Japan

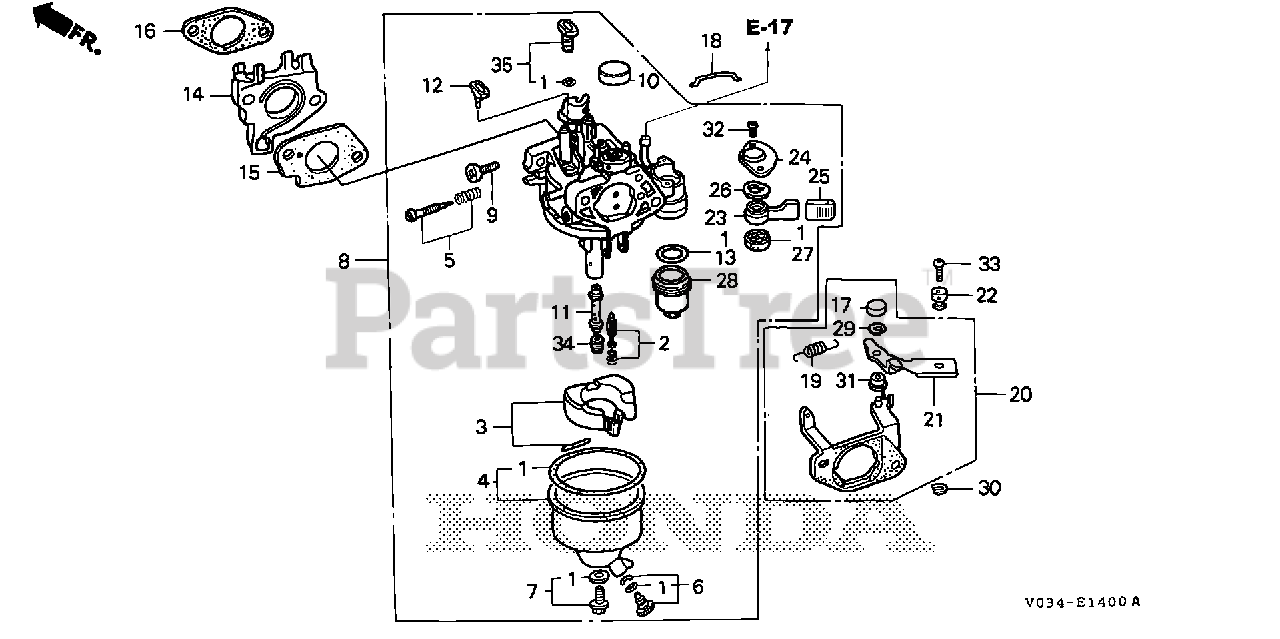

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE2-A20

GASKET SET

$20.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZA0-931

VALVE SET, FLOAT

$45.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZA0-931

FLOAT SET

$51.99

$

In Stock, only 1 left!

0

4

Honda 16015-ZE2-A20

CHAMBER SET, FLOAT

$57.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZH7-W01

SCREW SET, PILOT

$21.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZH7-A20

SCREW SET, DRAIN

$11.99

$

Usually ships in 3-6 days

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

$13.99

$

In Stock, only 1 left!

0

8

Honda 16100-ZE3-H61

CARBURETOR ASSY. (BE80E A)

$118.99

$

In Stock, only 1 left!

0

9

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$17.99

$

In Stock, only 1 left!

0

10

Honda 16148-141-881

SEE PART DETAILS - PRI; CAP, CHOKE DUST

$6.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZE3-H61

NOZZLE, MAIN

$28.99

$

Usually ships in 3-6 days

0

12

Honda 16172-ZE3-W10

COLLAR, SETTING

$10.99

$

Usually ships in 3-6 days

0

13

Honda 16173-001-004

GASKET, FUEL STRAINER CUP

$7.49

$

In Stock, only 2 left!

0

14

Honda 16211-ZE3-000

INSULATOR, CARBURETOR

$20.99

$

In Stock, only 1 left!

0

15

Honda 16221-ZE3-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 4166032.

$2.99

$

In Stock, Qty 20+

0

15

Honda 16221-Z8T-000

GASKET, CARBURETOR

Note: Use from Engine SN 4166033.

$4.99

$

In Stock, Qty 11

0

16

Honda 16223-ZE3-W00

GASKET, INSULATOR

$2.99

$

In Stock, Qty 6

0

17

Honda 16252-ZA1-010

SEE PART DETAILS - PRI; CAP, CHOKE LEVER

$1.99

$

In Stock, only 2 left!

0

18

Honda 16264-ZE2-780

ROD, CHOKE

$2.49

$

In Stock, only 4 left!

0

19

Honda 16562-896-000

SPRING, THROTTLE RETURN

$4.99

$

Usually ships in 3-6 days

0

20

Honda 16590-ZE2-772

STAY ASSY., CHOKE CONTROL (REMOTE)

$34.99

$

Usually ships in 3-6 days

0

21

Honda 16610-ZE2-780

LEVER, CHOKE

$6.49

$

Usually ships in 3-6 days

0

22

Honda 16617-ZE3-H00

HOLDER, WIRE

$5.99

$

Usually ships in 3-6 days

0

23

Honda 16953-ZE1-712

LEVER, PETCOCK

$11.99

$

Usually ships in 3-6 days

0

24

Honda 16954-ZE1-812

PLATE, LEVER SETTING

$4.49

$

In Stock, only 1 left!

0

25

Honda 16955-ZE2-H21

CAP, LEVER

$12.99

$

Usually ships in 3-6 days

0

26

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

Usually ships in 3-6 days

0

27

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.49

$

In Stock, Qty 20+

0

28

Honda 16967-ZE0-811

CUP, FUEL STRAINER

$23.99

$

In Stock, only 3 left!

0

29

Honda 38689-680-960

E-RING (4MM)

$3.99

$

Usually ships in 3-6 days

0

30

Honda 90605-230-000

CIRCLIP (5MM)

$4.49

$

In Stock, only 2 left!

0

31

Honda 91502-ZA0-310

SEE PART DETAILS - PRI; BUSH, CHOKE LEVER

$3.49

$

Usually ships in 3-6 days

0

32

Honda 93500-03006-0H

SCREW, PAN (3X6)

$1.49

$

In Stock, only 3 left!

0

33

Honda 93500-04006-0H

SCREW, PAN (4X6)

$1.49

$

In Stock, Qty 7

0

34

Honda 99101-ZF5-0950

JET, MAIN (#95)

Note: (Optional).

$11.99

$

In Stock, only 2 left!

0

34

Honda 99101-ZF5-0980

JET, MAIN (#98)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH7-0920

JET, MAIN (#92)

Note: (Optional).

$8.99

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH7-0950

JET, MAIN (#95)

Note: (Optional).

$8.49

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH7-0980

JET, MAIN (#98)

$8.49

$

Usually ships in 3-6 days

0

34

Honda 99101-ZH8-0980

JET, MAIN (#98)

$7.99

$

In Stock, only 1 left!

0

35

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$23.99

$

In Stock, only 2 left!

0
